Port Configuration
3-89
3
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
• Media Type
6
– Shows the forced/preferred port type to use for combination ports
21-24. (Copper-Forced, SFP-Forced, SFP-Preferred-Auto)
• Trunk Member
6
– Shows if port is a trunk member.
• Creation
7
– Shows if a trunk is manually configured or dynamically set via LACP.
Web – Click Port, Port Information or Trunk Information.

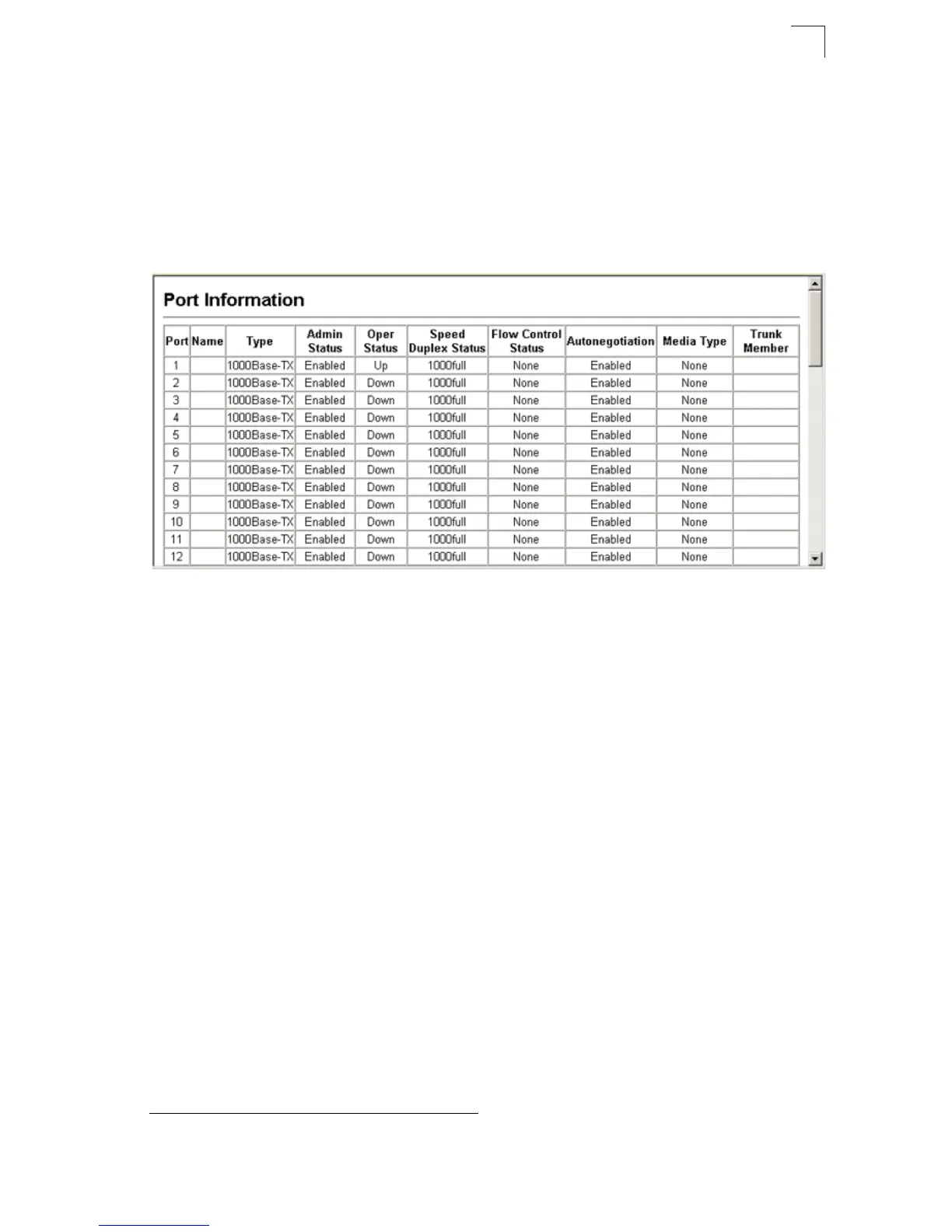

Figure 3-53 Port - Port Information
Field Attributes (CLI)
Basic information:
• Port type – Indicates the port type. (1000BASE-T, SFP, or 10G)
• MAC address – The physical layer address for this port. (To access this item on
the web, see “Setting the Switch’s IP Address” on page 3-17.)
Configuration:
• Name – Interface label.
• Port admin – Shows if the interface is enabled or disabled (i.e., up or down).
•
Speed-duplex
– Shows the current speed and duplex mode. (Auto, or fixed choice)
• Capabilities – Specifies the capabilities to be advertised for a port during
auto-negotiation. (To access this item on the web, see “Configuring Interface
Connections” on page 3-48.) The following capabilities are supported.
• 10half - Supports 10 Mbps half-duplex operation
• 10full - Supports 10 Mbps full-duplex operation
• 100half - Supports 100 Mbps half-duplex operation
• 100full - Supports 100 Mbps full-duplex operation
• 1000full - Supports 1000 Mbps full-duplex operation
• 10Gfull - Supports 10 Gbps full-duplex operation
6. Port Information only.
7. Trunk Information only.
