Edge-Core ES4625 - Figure 3-144 OSPF NSSA Settings

IP Routing
3-255
3
Note: This router supports up 16 areas, either normal transit areas, stubs, or NSSAs.
Web - Click Routing Protocol, OSPF, NSSA Settings. Create a new NSSA or modify
the routing behavior for an existing NSSA, and click Apply.

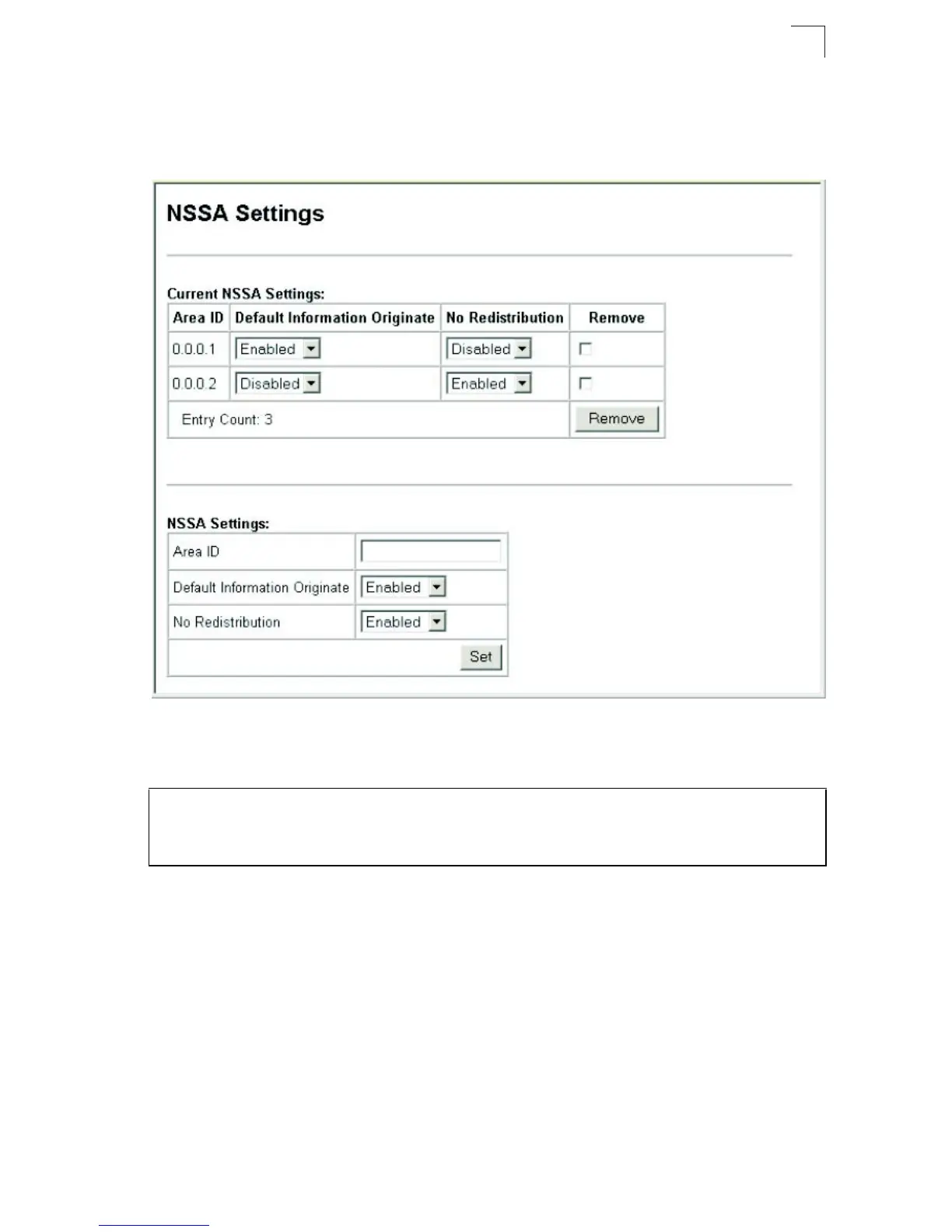

Figure 3-144 OSPF NSSA Settings
CLI - This example configures area 0.0.0.1 as a stub and sets the cost for the default
summary route to 10.
Console(config-router)#area 0.0.0.1 nssa
default-information- originate 4-273
Console(config-router)#area 0.0.0.2 nssa no-redistribution 4-273
Console(config-router)#
