Edge-Core ES4625 - Figure 3-92 IP DSCP Priority

Class of Service Configuration
3-159
3
Web – Click Priority, IP DSCP Priority. Select an entry from the DSCP table, enter a
value in the Class of Service Value field, then click Apply.

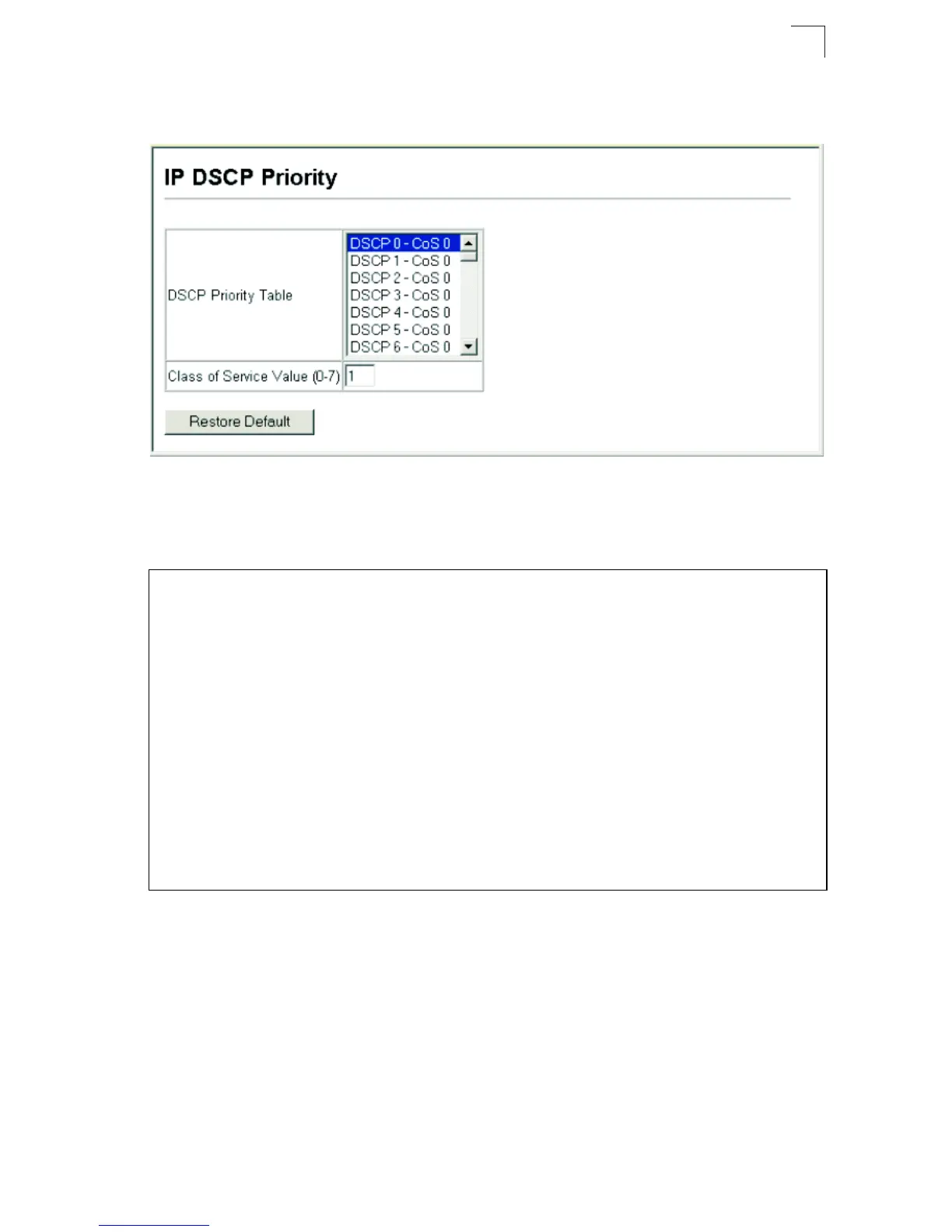

Figure 3-92 IP DSCP Priority
CLI – The following example globally enables DSCP Priority service on the switch,
maps DSCP value 0 to CoS value 1 (on port 1), and then displays the DSCP Priority
settings.
* Mapping specific values for IP DSCP is implemented as an interface configuration
command, but any changes will apply to the all interfaces on the switch.
Console(config)#map ip dscp 4-214
Console(config)#interface ethernet 1/1 4-143
Console(config-if)#map ip dscp 1 cos 0 4-214
Console(config-if)#end
Console#show map ip dscp ethernet 1/1 4-217
DSCP mapping status: disabled
Port DSCP COS
--------- ---- ---
Eth 1/ 1 0 0
Eth 1/ 1 1 0
Eth 1/ 1 2 0
Eth 1/ 1 3 0
.
.
.
Eth 1/ 1 61 0
Eth 1/ 1 62 0
Eth 1/ 1 63 0
Console#
