Configu
ring the Swit
ch
3-276
3
We
b
– Click
Routing Protoc
ol, PIM-DM, Ne
ighbor Informa
tion.

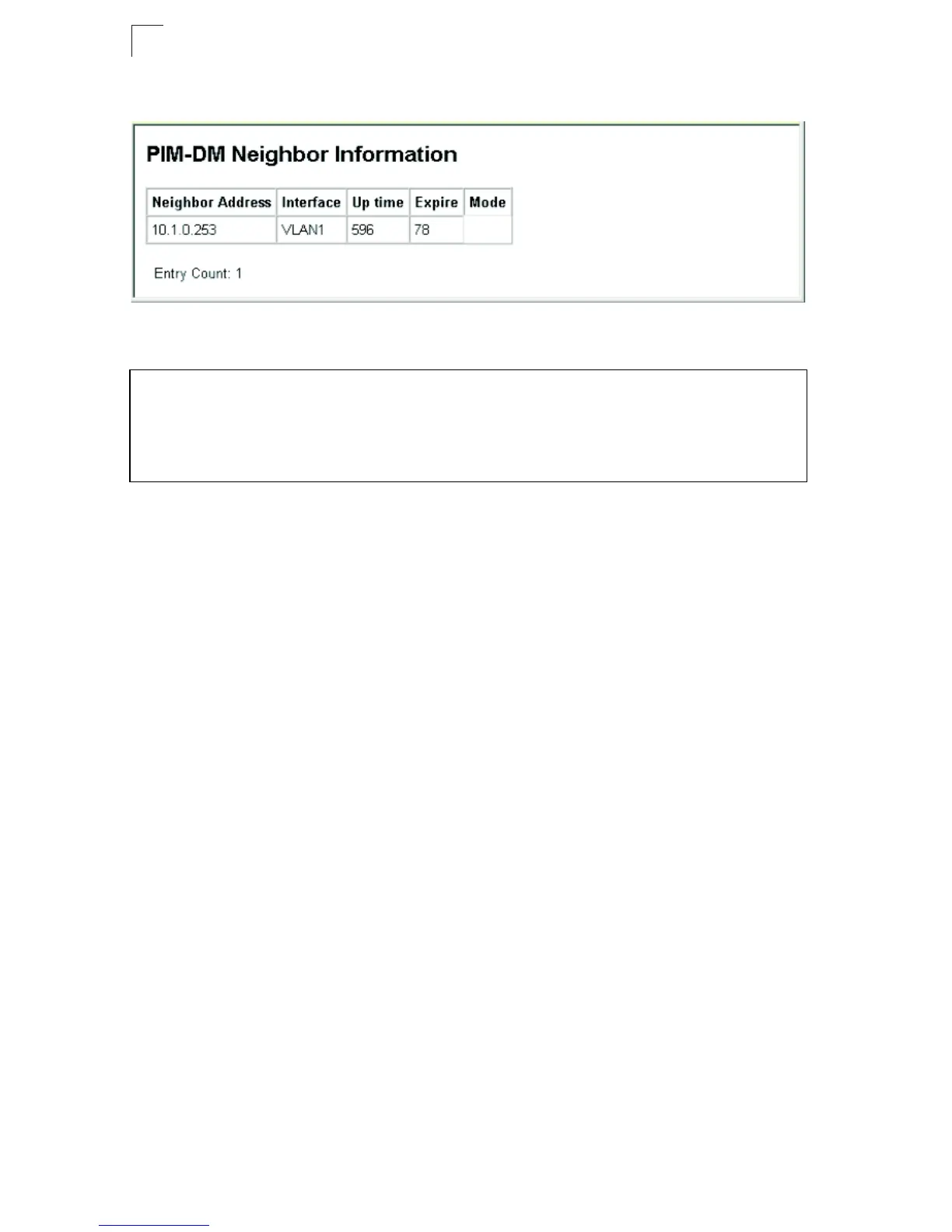

Figur
e
3-15
7 PIM
-DM
Neigh
bor In
form
ation
CLI
– This exam
ple di
splays t
he only nei
ghbo
ring PIM-
DM ro
uter.
Console#show
ip
pim
nei
ghbor
4-314
Address
VLAN
Interface
Uptime
Expire
Mode
---------------
-------
---------
--------
--------
-------
10.1.0.253
1
613
91
Dense
Console#
327
329
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1: Introduction
31
Key Features
31
Table 1-1 Key Features
31
Description of Software Features
32
System Defaults
36
Table 1-2 System Defaults
36
Chapter 2: Initial Configuration
41
Connecting to the Switch
41
Configuration Options
41
Required Connections
42
Remote Connections
43
Stack Operations
43
Selecting the Stack Master
43
Selecting the Backup Unit
44
Recovering from Stack Failure or Topology Change
44
Broken Link for Line and Wrap-Around Topologies
44
Resilient Configuration
45
Resilient IP Interface for Management Access
45
Renumbering the Stack
45
Stack Limitations
45
Basic Configuration
46
Console Connection
46
Setting Passwords
47
Setting an IP Address
47
Manual Configuration
47
Dynamic Configuration
48
Enabling SNMP Management Access
49
Community Strings (for SNMP Version 1 and 2C Clients)
49
Trap Receivers
50
Configuring Access for SNMP Version 3 Clients
51
Saving Configuration Settings
51
Managing System Files
52
Chapter 3: Configuring the Switch
53
Using the Web Interface
53
Navigating the Web Browser Interface
54
Home Page
54
Figure 3-1 Home Page
54
Configuration Options
55
Panel Display
55
Table 3-1 Web Page Configuration Buttons
55
Figure 3-2 Front Panel Indicators
55
Main Menu
56
Table 3-2 Switch Main Menu
56
Basic Configuration
64
Displaying System Information
64
Figure 3-3 System Information
64
Displaying Switch Hardware/Software Versions
65
Figure 3-4 Switch Information
66
Displaying Bridge Extension Capabilities
67
Figure 3-5 Displaying Bridge Extension Configuration
67
Configuring Support for Jumbo Frames
68
Figure 3-6 Configuring Support for Jumbo Frames
68
Setting the Switch's IP Address
69
Manual Configuration
70
Figure 3-7 IP Interface Configuration - Manual
70
Figure 3-8 Default Gateway
70
Using DHCP/BOOTP
71
Figure 3-9 IP Interface Configuration - DHCP
71
Managing Firmware
72
Downloading System Software from a Server
73
Figure 3-10 Copy Firmware
73
Figure 3-11 Setting the Startup Code
73
Figure 3-12 Deleting Files
74
Saving or Restoring Configuration Settings
75
Downloading Configuration Settings from a Server
76
Figure 3-13 Downloading Configuration Settings for Start-Up
76
Figure 3-14 Setting the Startup Configuration Settings
76
Console Port Settings
77
Figure 3-15 Configuring the Console Port
78
Telnet Settings
79
Figure 3-16 Configuring the Telnet Interface
80
Configuring Event Logging
81
System Log Configuration
81
Table 3-3 Logging Levels
81
Remote Log Configuration
82
Figure 3-17 System Logs
82
Figure 3-18 Remote Logs
83
Displaying Log Messages
84
Sending Simple Mail Transfer Protocol Alerts
84
Figure 3-19 Displaying Logs
84
Figure 3-20 Enabling and Configuring SMTP Alerts
85
Renumbering the Stack
86
Figure 3-21 Renumbering the Stack
86
Resetting the System
87
Setting the System Clock
87
Configuring SNTP
87
Figure 3-22 Resetting the System
87
Setting the Time Zone
88
Figure 3-23 SNTP Configuration
88
Simple Network Management Protocol
89
Figure 3-24 Clock Time Zone
89
Table 3-4 Snmpv3 Security Models and Levels
90
Enabling the SNMP Agent
91
Figure 3-25 Enabling the SNMP Agent
91
Setting Community Access Strings
91
Figure 3-26 Configuring SNMP Community Strings
92
Specifying Trap Managers and Trap Types
92
Configuring Snmpv3 Management Access
94
Figure 3-27 Configuring SNMP Trap Managers
94
Figure 3-28 Setting the Snmpv3 Engine ID
95
Setting a Local Engine ID
95
Specifying a Remote Engine ID
95
Configuring Snmpv3 Users
96
Figure 3-29 Setting an Engine ID
96
Figure 3-30 Configuring Snmpv3 Users
97
Configuring Remote Snmpv3 Users
98
Figure 3-31 Configuring Remote Snmpv3 Users
99
Configuring Snmpv3 Groups
100
Table 3-5 Supported Notification Messages
101
Figure 3-32 Configuring Snmpv3 Groups
103
Figure 3-33 Configuring Snmpv3 Views
104
Setting Snmpv3 Views
104
User Authentication
105
Configuring User Accounts
105
Figure 3-34 User Accounts
106
Configuring Local/Remote Logon Authentication
107
Figure 3-35 Authentication Server Settings
109
Configuring HTTPS
110
Table 3-6 HTTPS System Support
110
Figure 3-36 HTTPS Settings
111
Replacing the Default Secure-Site Certificate
111
Configuring the Secure Shell
112
Generating the Host Key Pair
113
Figure 3-37 SSH Host-Key Settings
114
Configuring the SSH Server
115
Figure 3-38 SSH Server Settings
116
Configuring Port Security
117
Figure 3-39 Port Security
118
Configuring 802.1X Port Authentication
119
Displaying 802.1X Global Settings
120
Figure 3-40 802.1X Global Information
120
Configuring 802.1X Global Settings
121
Configuring Port Settings for 802.1X
121
Figure 3-41 802.1X Global Configuration
121
Figure 3-42 802.1X Port Configuration
122
Displaying 802.1X Statistics
124
Table 3-7 802.1X Statistics
124
Figure 3-43 802.1X Port Statistics
125
Filtering IP Addresses for Management Access
126
Figure 3-44 IP Filter
127
Access Control Lists
128
Configuring Access Control Lists
128
Configuring a Standard IP ACL
129
Figure 3-45 Selecting ACL Type
129
Setting the ACL Name and Type
129
Configuring an Extended IP ACL
130
Figure 3-46 ACL Configuration - Standard IP
130
Figure 3-47 ACL Configuration - Extended IP
132
Configuring a MAC ACL
133
Figure 3-48 ACL Configuration - MAC
134
Configuring ACL Masks
135
Figure 3-49 Selecting ACL Mask Types
135
Specifying the Mask Type
135
Configuring an IP ACL Mask
136
Figure 3-50 ACL Mask Configuration - IP
137
Configuring a MAC ACL Mask
138
Figure 3-51 ACL Mask Configuration - MAC
138
Binding a Port to an Access Control List
139
Port Configuration
140
Displaying Connection Status
140
Figure 3-52 ACL Port Binding
140
Figure 3-53 Port - Port Information
141
Configuring Interface Connections
143
Figure 3-54 Port - Port Configuration
144
Creating Trunk Groups
145
Figure 3-55 Static Trunk Configuration
146
Statically Configuring a Trunk
146
Enabling LACP on Selected Ports
147
Figure 3-56 LACP Trunk Configuration
148
Configuring LACP Parameters
149
Figure 3-57 LACP - Aggregation Port
150
Displaying LACP Port Counters
152
Figure 3-58 LACP - Port Counters Information
152
Table 3-8 LACP Port Counters
152
Displaying LACP Settings and Status for the Local Side
153
Table 3-9 LACP Internal Configuration Information
153
Figure 3-59 LACP - Port Internal Information
154
Displaying LACP Settings and Status for the Remote Side
155
Figure 3-60 LACP - Port Neighbors Information
155
Table 3-10 LACP Neighbor Configuration Information
155
Setting Broadcast Storm Thresholds
156
Figure 3-61 Port Broadcast Control
157
Configuring Port Mirroring
158
Figure 3-62 Mirror Port Configuration
158
Configuring Rate Limits
159
Figure 3-63 Rate Limit Configuration
159
Showing Port Statistics
160
Table 3-11 Port Statistics
160
Figure 3-64 Port Statistics
163
Address Table Settings
164
Setting Static Addresses
164
Displaying the Address Table
165
Figure 3-65 Static Addresses
165
Figure 3-66 Dynamic Addresses
166
Changing the Aging Time
167
Spanning Tree Algorithm Configuration
167
Figure 3-67 Address Aging
167
Displaying Global Settings
168
Figure 3-68 STA Information
170
Configuring Global Settings
171
Figure 3-69 STA Global Configuration
174
Displaying Interface Settings
175
Figure 3-70 STA Port Information
177
Configuring Interface Settings
178
Configuring Multiple Spanning Trees
180
Figure 3-71 STA Port Configuration
180
Figure 3-72 MSTP VLAN Configuration
182
Displaying Interface Settings for MSTP
184
Figure 3-73 MSTP Port Information
184
Configuring Interface Settings for MSTP
185
Figure 3-74 MSTP Port Configuration
186
VLAN Configuration
187
IEEE 802.1Q Vlans
187
Displaying Basic VLAN Information
190
Enabling or Disabling GVRP (Global Setting)
190
Figure 3-75 Globally Enabling GVRP
190
Figure 3-76 VLAN Basic Information
190
Displaying Current Vlans
191
Figure 3-77 VLAN Current Table
191
Creating Vlans
192
Adding Static Members to Vlans (VLAN Index)
193
Figure 3-78 VLAN Static List - Creating Vlans
193
Figure 3-79 VLAN Static Table - Adding Static Members
194
Adding Static Members to Vlans (Port Index)
195
Figure 3-80 VLAN Static Membership by Port
195
Configuring VLAN Behavior for Interfaces
196
Figure 3-81 VLAN Port Configuration
197
Configuring Private Vlans
198
Enabling Private Vlans
198
Figure 3-82 Private VLAN Status
198
Configuring Uplink and Downlink Ports
199
Configuring Protocol-Based Vlans
199
Figure 3-83 Private VLAN Link Status
199
Configuring Protocol Groups
200
Figure 3-84 Protocol VLAN Configuration
200
Figure 3-85 Protocol VLAN Port Configuration
201
Mapping Protocols to Vlans
201
Class of Service Configuration
202
Layer 2 Queue Settings
202
Setting the Default Priority for Interfaces
202
Figure 3-86 Default Port Priority
203
Mapping Cos Values to Egress Queues
204
Table 3-12 Mapping Cos Values to Egress Queues
204
Table 3-13 Cos Priority Levels
204
Figure 3-87 Traffic Classes
205
Figure 3-88 Queue Mode
206
Selecting the Queue Mode
206
Setting the Service Weight for Traffic Classes
206
Figure 3-89 Queue Scheduling
207
Priority Queues
207
Layer 3/4 Priority Settings
208
Figure 3-90 IP Precedence/Dscp Priority Status
208
Mapping Layer 3/4 Priorities to Cos Values
208
Figure 3-91 IP Precedence Priority
209
Mapping IP Precedence
209
Table 3-14 Mapping IP Precedence
209
Table 3-15 Mapping DSCP Priority
210
Figure 3-92 IP DSCP Priority
211
Figure 3-93 IP Port Priority Status
212
Figure 3-94 IP Port Priority
212
Mapping IP Port Priority
212
Quality of Service
213
Configuring Quality of Service Parameters
214
Configuring a Class Map
214
Figure 3-95 Configuring Class Maps
216
Creating Qos Policies
217
Figure 3-96 Configuring Policy Maps
219
Attaching a Policy Map to Ingress Queues
220
Figure 3-97 Service Policy Settings
220
Multicast Filtering
221
IGMP Protocol
221
Layer 2 IGMP (Snooping and Query)
222
Configuring IGMP Snooping and Query Parameters
223
Current Status
224
Figure 3-98 IGMP Configuration
224
Displaying Interfaces Attached to a Multicast Router
225
Figure 3-99 Multicast Router Port Information
225
Figure 3-100 Static Multicast Router Port Configuration
226
Specifying Static Interfaces for a Multicast Router
226
Displaying Port Members of Multicast Services
227
Figure 3-101 IP Multicast Registration Table
227
Assigning Ports to Multicast Services
228
Figure 3-102 IGMP Member Port Table
228
Layer 3 IGMP (Query Used with Multicast Routing)
229
Configuring IGMP Interface Parameters
229
Figure 3-103 IGMP Interface Settings
231
Displaying Multicast Group Information
232
Figure 3-104 IGMP Group Membership
232
Configuring Domain Name Service
233
Configuring General DNS Server Parameters
233
Figure 3-105 DNS General Configuration
234
Configuring Static DNS Host to Address Entries
235
Figure 3-106 DNS Static Host Table
236
Displaying the DNS Cache
237
Figure 3-107 DNS Cache
237
Dynamic Host Configuration Protocol
238
Configuring DHCP Relay Service
238
Figure 3-108 DHCP Relay Configuration
239
Configuring the DHCP Server
240
Enabling the Server, Setting Excluded Addresses
240
Figure 3-109 DHCP Server General Configuration
241
Configuring Address Pools
242
Figure 3-110 DHCP Server Pool Configuration
243
Figure 3-111 DHCP Server Pool - Network Configuration
244
Figure 3-112 DHCP Server Pool - Host Configuration
245
Displaying Address Bindings
246
Figure 3-113 DHCP Server - IP Binding
246
Configuring Router Redundancy
247
Configuring VRRP Groups
248
Virtual Router Redundancy Protocol
248
Figure 3-114 VRRP Group Configuration
251
Figure 3-115 VRRP Group Configuration Detail
252
Displaying VRRP Global Statistics
253
Figure 3-116 VRRP Global Statistics
253
Displaying VRRP Group Statistics
254
Figure 3-117 VRRP Group Statistics
255
IP Routing
256
Initial Configuration
256
Overview
256
IP Switching
257
Routing Path Management
258
Routing Protocols
258
Basic IP Interface Configuration
259
Figure 3-118 IP Global Settings
259
Configuring IP Routing Interfaces
260
Figure 3-119 IP Routing Interface
261
Address Resolution Protocol
262
Proxy ARP
262
Table 3-16 Address Resolution Protocol
262
Basic ARP Configuration
263
Figure 3-120 ARP General
263
Configuring Static ARP Addresses
264
Figure 3-121 ARP Static Addresses
264
Displaying Dynamically Learned ARP Entries
265
Figure 3-122 ARP Dynamic Addresses
265
Displaying Local ARP Entries
266
Figure 3-123 ARP Other Addresses
266
Displaying ARP Statistics
267
Figure 3-124 ARP Statistics
267
Table 3-17 ARP Statistics
267
Displaying Statistics for IP Protocols
268
Table 3-18 IP Statistics
268
Figure 3-125 IP Statistics
270
ICMP Statistics
270
Table 3-19 ICMP Statistics
270
Figure 3-126 ICMP Statistics
271
Figure 3-127 UDP Statistics
272
Table 3-20 USP Statistics
272
UDP Statistics
272
Figure 3-128 TCP Statistics
273
Table 3-21 TCP Statistics
273
TCP Statistics
273
Configuring Static Routes
274
Figure 3-129 IP Static Routes
274
Displaying the Routing Table
275
Figure 3-130 IP Routing Table
275
Configuring the Routing Information Protocol
276
Configuring General Protocol Settings
277
Figure 3-131 RIP General Settings
278
Figure 3-132 RIP Network Addresses
279
Specifying Network Interfaces for RIP
279
Configuring Network Interfaces for RIP
280
Figure 3-133 RIP Interface Settings
282
Displaying RIP Information and Statistics
283
Table 3-22 RIP Information and Statistics
283
Figure 3-134 RIP Statistics
284
Configuring the Open Shortest Path First Protocol
286
Configuring General Protocol Settings
287
Figure 3-135 OSPF General Configuration
289
Configuring OSPF Areas
290
Figure 3-136 OSPF Area Configuration
292
Configuring Area Ranges (Route Summarization for Abrs)
293
Figure 3-137 OSPF Range Configuration
294
Configuring OSPF Interfaces
295
Figure 3-138 OSPF Interface Configuration
297
Figure 3-139 OSPF Interface Configuration - Detailed
298
Configuring Virtual Links
299
Figure 3-140 OSPF Virtual Link Configuration
300
Configuring Network Area Addresses
301
Figure 3-141 OSPF Network Area Address Configuration
302
Configuring Summary Addresses (for External as Routes)
304
Figure 3-142 OSPF Summary Address Configuration
304
Redistributing External Routes
305
Configuring NSSA Settings
306
Figure 3-143 OSPF Redistribute Configuration
306
Figure 3-144 OSPF NSSA Settings
307
Displaying Link State Database Information
308
Figure 3-145 OSPF Link State Database Information
309
Displaying Information on Border Routers
310
Figure 3-146 OSPF Border Router Information
310
Displaying Information on Neighbor Routers
311
Figure 3-147 OSPF Neighbor Information
311
Multicast Routing
312
Configuring Global Settings for Multicast Routing
312
Figure 3-148 Multicast Routing General Settings
312
Displaying the Multicast Routing Table
313
Figure 3-149 Multicast Routing Table
314
Configuring DVMRP
316
Configuring Global DVMRP Settings
316
Configuring DVMRP Interface Settings
319
Figure 3-150 DVMRP General Settings
319
Figure 3-151 DVMRP Interface Settings
320
Displaying Neighbor Information
321
Figure 3-152 DVMRP Neighbor Information
321
Displaying the Routing Table
322
Figure 3-153 DVMRP Routing Table
322
Configuring PIM-DM
323
Configuring Global PIM-DM Settings
323
Configuring PIM-DM Interface Settings
324
Figure 3-154 PIM-DM General Settings
324
Figure 3-155 PIM-DM Interface Settings
326
Displaying Interface Information
327
Displaying Neighbor Information
327
Figure 3-156 PIM-DM Interface Information
327
Figure 3-157 PIM-DM Neighbor Information
328
Chapter 4: Command Line Interface
329
Using the Command Line Interface
329
Accessing the CLI
329
Console Connection
329
Telnet Connection
329
Entering Commands
331
Keywords and Arguments
331
Minimum Abbreviation
331
Command Completion
331
Getting Help on Commands
331
Showing Commands
332
Partial Keyword Lookup
333
Negating the Effect of Commands
333
Using Command History
333
Understanding Command Modes
334
Exec Commands
334
Table 4-1 General Command Modes
334
Configuration Commands
335
Table 4-2 Configuration Command Modes
336
Command Line Processing
337
Table 4-3 Keystroke Commands
337
Command Groups
338
Table 4-4 Command Group Index
338
Line Commands
339
Table 4-5 Line Commands
339
Line
340
Login
340
Password
341
Timeout Login Response
342
Exec-Timeout
343
Password-Thresh
343
Silent-Time
344
Databits
345
Parity
345
Speed
346
Stopbits
346
Disconnect
347
Show Line
347
General Commands
348
Enable
348
Table 4-6 General Commands
348
Disable
349
Configure
350
Show History
350
End
351
Reload
351
Exit
352
Quit
352
System Management Commands
353
Device Designation Commands
353
Prompt
353
Table 4-7 System Management Commands
353
Table 4-8 Device Designation Commands
353
Hostname
354
Switch Renumber
354
Table 4-10 Default Login Settings
355
Table 4-9 User Access Commands
355
User Access Commands
355
Username
355
Enable Password
356
IP Filter Commands
357
Management
357
Table 4-11 IP Filter Commands
357
Show Management
358
Ip Http Port
359
Ip Http Server
359
Table 4-12 Web Server Commands
359
Web Server Commands
359
Ip Http Secure-Server
360
Table 4-13 HTTPS System Support
360
Ip Http Secure-Port
361
Ip Telnet Server
362
Secure Shell Commands
362
Table 4-14 Telnet Server Commands
362
Telnet Server Commands
362
Table 4-15 Secure Shell Commands
363
Ip Ssh Server
365
Ip Ssh Timeout
365
Ip Ssh Authentication-Retries
366
Ip Ssh Server-Key Size
366
Delete Public-Key
367
Ip Ssh Crypto Host-Key Generate
367
Ip Ssh Crypto Zeroize
368
Ip Ssh Save Host-Key
369
Show Ip Ssh
369
Show Ssh
369
Show Public-Key
370
Table 4-16 Show Ssh - Display Description
370
Event Logging Commands
371
Logging on
371
Table 4-17 Event Logging Commands
371
Logging History
372
Table 4-18 Logging Levels
372
Logging Facility
373
Logging Host
373
Logging Trap
374
Clear Log
375
Show Logging
375
Related Commands
376
Table 4-19 Show Logging Flash/Ram - Display Description
376
Table 4-20 Show Logging Trap - Display Description
376
Show Log
377
SMTP Alert Commands
377
Table 4-21 SMTP Alert Commands
377
Logging Sendmail Host
378
Logging Sendmail Level
378
Logging Sendmail Destination-Email
379
Logging Sendmail Source-Email
379
Logging Sendmail
380
Show Logging Sendmail
380
Time Commands
381
Sntp Client
381
Table 4-22 Time Commands
381
Sntp Server
382
Show Sntp
383
Sntp Poll
383
Calendar Set
384
Clock Timezone
384
Show Calendar
385
System Status Commands
385
Show Startup-Config
385
Table 4-23 System Status Commands
385
Show Running-Config
387
Show System
389
Show Users
390
Show Version
390
Frame Size Commands
391
Jumbo Frame
391
Table 4-24 Frame Size Commands
391
Flash/File Commands
392
Copy
392
Table 4-25 Flash/File Commands
392
Delete
395
Dir
395
Whichboot
396
Table 4-26 File Directory Information
396
Boot System
397
Authentication Commands
398
Authentication Sequence
398
Authentication Login
398
Table 4-27 Authentication Commands
398
Table 4-28 Authentication Sequence Commands
398
Authentication Enable
399
RADIUS Client
400
Radius-Server Host
400
Table 4-29 RADIUS Client Commands
400
Radius-Server Key
401
Radius-Server Port
401
Radius-Server Retransmit
402
Radius-Server Timeout
402
Show Radius-Server
403
Table 4-30 TACACS+ Client Commands
403
TACACS+ Client
403
Tacacs-Server Host
404
Tacacs-Server Port
404
Show Tacacs-Server
405
Tacacs-Server Key
405
Port Security
406
Port Security Commands
406
Table 4-31 Port Security Commands
406
802.1X Port Authentication
408
Dot1X System-Auth-Control
408
Table 4-32 802.1X Port Authentication Commands
408
Dot1X Default
409
Dot1X Max-Req
409
Dot1X Port-Control
409
Dot1X Operation-Mode
410
Dot1X Re-Authenticate
411
Dot1X Re-Authentication
411
Dot1X Timeout Quiet-Period
411
Dot1X Timeout Re-Authperiod
412
Dot1X Timeout Tx-Period
412
Show Dot1X
413
Access Control List Commands
415
Table 4-33 Access Control List Commands
416
Access-List Ip
417
IP Acls
417
Table 4-34 IP ACL Commands
417
Permit, Deny (Standard ACL)
418
Permit, Deny (Extended ACL)
419
Access-List Ip Mask-Precedence
421
Show Ip Access-List
421
Mask (IP ACL)
422
Show Access-List Ip Mask-Precedence
425
Ip Access-Group
426
Show Ip Access-Group
426
Access-List Mac
427
MAC Acls
427
Table 4-35 MAC ACL Commands
427
Permit, Deny (MAC ACL)
429
Show Mac Access-List
429
Access-List Mac Mask-Precedence
430
Mask (MAC ACL)
430
Command Mode
431
Default Setting
431
Show Access-List Mac Mask-Precedence
432
Mac Access-Group
433
Show Mac Access-Group
433
Show Access-Group
434
Show Access-List
434
Table 4-36 ACL Information Commands
434
SNMP Commands
435
Snmp-Server
435
Table 4-37 SNMP Commands
435
Show Snmp
436
Snmp-Server Community
437
Snmp-Server Contact
437
Snmp-Server Location
438
Snmp-Server Host
438
Snmp-Server Enable Traps
440
Snmp-Server Engine-ID
441
Show Snmp Engine-ID
442
Table 4-38 Show Snmp Engine-ID - Display Description
442
Snmp-Server View
443
Show Snmp View
444
Snmp-Server Group
444
Table 4-39 Show Snmp View - Display Description
444
Show Snmp Group
446
Table 4-40 Show Snmp Group - Display Description
446
Snmp-Server User
447
Show Snmp User
448
Table 4-41 Show Snmp User - Display Description
448
DHCP Commands
449
DHCP Client
449
Ip Dhcp Client-Identifier
449
Table 4-42 DHCP Commands
449
Table 4-43 DHCP Client Commands
449
Ip Dhcp Restart Client
450
DHCP Relay
451
Ip Dhcp Restart Relay
451
Table 4-44 DHCP Relay Commands
451
Ip Dhcp Relay Server
452
DHCP Server
452
Table 4-45 DHCP Server Commands
452
Ip Dhcp Excluded-Address
453
Service Dhcp
453
Ip Dhcp Pool
454
Default-Router
455
Network
455
Dns-Server
456
Domain-Name
456
Bootfile
457
Next-Server
457
Netbios-Name-Server
458
Lease
459
Netbios-Node-Type
459
Host
460
Client-Identifier
461
Clear Ip Dhcp Binding
462
Hardware-Address
462
Show Ip Dhcp Binding
463
DNS Commands
464
Ip Host
464
Table 4-46 DNS Commands
464
Clear Host
465
Ip Domain-Name
465
Ip Domain-List
466
Ip Name-Server
467
Ip Domain-Lookup
468
Show Dns
469
Show Hosts
469
Clear Dns Cache
470
Show Dns Cache
470
Table 4-47 Show Dns Cache - Display Description
470
Interface Commands
471
Interface
471
Table 4-48 Interface Commands
471
Description
472
Speed-Duplex
472
Negotiation
473
Capabilities
474
Media-Type
476
Shutdown
476
Clear Counters
477
Switchport Broadcast Packet-Rate
477
Show Interfaces Status
478
Show Interfaces Counters
479
Show Interfaces Switchport
480
Table 4-49 Show Interfaces Switchport - Display Description
481
Mirror Port Commands
482
Port Monitor
482
Table 4-50 Mirror Port Commands
482
Show Port Monitor
483
Rate Limit Commands
484
Rate-Limit
484
Table 4-51 Rate Limit Commands
484
Link Aggregation Commands
485
Table 4-52 Link Aggregation Commands
485
Channel-Group
486
Lacp
487
Lacp System-Priority
488
Lacp Admin-Key (Ethernet Interface)
489
Lacp Admin-Key (Port Channel)
489
Lacp Port-Priority
490
Show Lacp
491
Table 4-53 Show Lacp Counters - Display Description
491
Table 4-54 Show Lacp Internal - Display Description
492
Table 4-55 Show Lacp Neighbors - Display Description
493
Address Table Commands
494
Table 4-56 Show Lacp Sysid - Display Description
494
Table 4-57 Address Table Commands
494
Mac-Address-Table Static
495
Clear Mac-Address-Table Dynamic
496
Show Mac-Address-Table
496
Mac-Address-Table Aging-Time
497
Show Mac-Address-Table Aging-Time
497
Spanning Tree Commands
498
Table 4-58 Spanning Tree Commands
498
Spanning-Tree
499
Spanning-Tree Mode
499
Spanning-Tree Forward-Time
500
Spanning-Tree Hello-Time
501
Spanning-Tree Max-Age
501
Spanning-Tree Priority
502
Spanning-Tree Pathcost Method
503
Spanning-Tree Transmission-Limit
503
Spanning-Tree Mst-Configuration
504
Mst Vlan
504
Mst Priority
505
Name
505
Revision
506
Max-Hops
507
Spanning-Tree Spanning-Disabled
507
Spanning-Tree Cost
508
Spanning-Tree Port-Priority
509
Spanning-Tree Edge-Port
509
Spanning-Tree Portfast
510
Spanning-Tree Link-Type
511
Spanning-Tree Mst Cost
511
Spanning-Tree Mst Port-Priority
512
Spanning-Tree Protocol-Migration
513
Show Spanning-Tree
514
Show Spanning-Tree Mst Configuration
516
VLAN Commands
516
Editing VLAN Groups
516
Table 4-59 VLAN Commands
516
Table 4-60 Commands for Editing VLAN Groups
516
Vlan
517
Vlan Database
517
Configuring VLAN Interfaces
518
Interface Vlan
518
Table 4-61 Commands for Configuring VLAN Interfaces
518
Switchport Mode
519
Switchport Acceptable-Frame-Types
520
Switchport Ingress-Filtering
520
Switchport Native Vlan
521
Switchport Allowed Vlan
522
Switchport Forbidden Vlan
523
Displaying VLAN Information
523
Table 4-62 Commands for Displaying VLAN Information
523
Show Vlan
524
Configuring Private Vlans
525
Pvlan
525
Table 4-63 Private VLAN Commands
525
Show Pvlan
526
Configuring Protocol-Based Vlans
526
Table 4-64 Protocol-Based VLAN Commands
526
Protocol-Vlan Protocol-Group (Configuring Groups)
527
Protocol-Vlan Protocol-Group (Configuring Interfaces)
527
Show Protocol-Vlan Protocol-Group
528
Show Interfaces Protocol-Vlan Protocol-Group
529
GVRP and Bridge Extension Commands
530
Bridge-Ext Gvrp
530
Show Bridge-Ext
530
Table 4-65 GVRP and Bridge Extension Commands
530
Show Gvrp Configuration
531
Switchport Gvrp
531
Garp Timer
532
Show Garp Timer
533
Priority Commands
534
Priority Commands (Layer 2)
534
Queue Mode
534
Table 4-66 Priority Commands
534
Table 4-67 Priority Commands (Layer 2)
534
Switchport Priority Default
535
Queue Bandwidth
536
Queue Cos-Map
537
Table 4-68 Default Cos Priority Levels
537
Show Queue Bandwidth
538
Show Queue Cos-Map
538
Show Queue Mode
538
Map Ip Port (Global Configuration)
539
Priority Commands (Layer 3 and 4)
539
Table 4-69 Priority Commands (Layer 3 and 4)
539
Map Ip Port (Interface Configuration)
540
Map Ip Precedence (Global Configuration)
540
Map Ip Precedence (Interface Configuration)
541
Table 4-70 Mapping IP Precedence to Cos Values
541
Map Ip Dscp (Global Configuration)
542
Map Ip Dscp (Interface Configuration)
542
Show Map Ip Port
543
Table 4-71 Mapping IP DSCP to Cos Values
543
Show Map Ip Precedence
544
Show Map Ip Dscp
545
Quality of Service Commands
546
Table 4-72 Quality of Service Commands
546
Class-Map
547
Match
548
Policy-Map
549
Class
550
Police
551
Set
551
Service-Policy
552
Show Class-Map
553
Show Policy-Map
553
Show Policy-Map Interface
554
Multicast Filtering Commands
554
Table 4-73 Multicast Filtering Commands
554
IGMP Snooping Commands
555
Ip Igmp Snooping
555
Ip Igmp Snooping Vlan Static
555
Table 4-74 IGMP Snooping Commands
555
Ip Igmp Snooping Version
556
Show Ip Igmp Snooping
556
Show Mac-Address-Table Multicast
557
IGMP Query Commands (Layer 2)
558
Ip Igmp Snooping Querier
558
Ip Igmp Snooping Query-Count
558
Table 4-75 IGMP Query Commands (Layer 2)
558
Ip Igmp Snooping Query-Interval
559
Ip Igmp Snooping Query-Max-Response-Time
559
Ip Igmp Snooping Router-Port-Expire-Time
560
Static Multicast Routing Commands
561
Ip Igmp Snooping Vlan Mrouter
561
Table 4-76 Static Multicast Routing Commands
561
Show Ip Igmp Snooping Mrouter
562
IGMP Commands (Layer 3)
562
Table 4-77 IGMP Commands (Layer 3)
562
Ip Igmp
563
Ip Igmp Robustval
563
Ip Igmp Query-Interval
564
Ip Igmp Last-Memb-Query-Interval
565
Ip Igmp Max-Resp-Interval
565
Ip Igmp Version
566
Clear Ip Igmp Group
567
Show Ip Igmp Interface
567
Show Ip Igmp Groups
568
Table 4-78 Show Ip Igmp Groups - Display Description
568
IP Interface Commands
569
Basic IP Configuration
569
Table 4-79 IP Interface Commands
569
Table 4-80 Basic IP Configuration Commands
569
Ip Address
570
Ip Default-Gateway
571
Show Ip Interface
572
Show Ip Redirects
572
Ping
573
Address Resolution Protocol (ARP)
574
Arp
574
Table 4-81 Address Resolution Protocol Commands
574
Arp-Timeout
575
Clear Arp-Cache
575
Show Arp
575
Ip Proxy-Arp
576
IP Routing Commands
577
Global Routing Configuration
577
Ip Routing
577
Table 4-82 IP Routing Commands
577
Table 4-83 Global Routing Configuration Commands
577
Ip Route
578
Clear Ip Route
579
Show Ip Route
579
Show Ip Host-Route
580
Table 4-84 Show Ip Route - Display Description
580
Table 4-85 Show Ip Host-Route - Display Description
580
Show Ip Traffic
581
Routing Information Protocol (RIP)
582
Router Rip
582
Table 4-86 Routing Information Protocol Commands
582
Timers Basic
583
Neighbor
584
Network
584
Version
585
Ip Rip Receive Version
586
Ip Rip Send Version
587
Ip Rip Authentication Key
588
Ip Split-Horizon
588
Ip Rip Authentication Mode
589
Show Ip Rip
590
Show Rip Globals
590
Table 4-87 Show Rip Globals - Display Description
590
Table 4-88 Show Ip Rip - Display Description
591
Open Shortest Path First (OSPF)
592
Table 4-89 Open Shortest Path First Commands
592
Router Ospf
593
Router-ID
593
Compatible Rfc1583
594
Default-Information Originate
595
Area Range
596
Timers Spf
596
Area Default-Cost
597
Redistribute
598
Summary-Address
598
Network Area
599
Area Stub
600
Area Nssa
601
Area Virtual-Link
602
Ip Ospf Authentication
604
Ip Ospf Authentication-Key
605
Ip Ospf Message-Digest-Key
606
Ip Ospf Cost
607
Ip Ospf Dead-Interval
607
Ip Ospf Hello-Interval
608
Ip Ospf Priority
608
Ip Ospf Retransmit-Interval
609
Ip Ospf Transmit-Delay
610
Show Ip Ospf
610
Show Ip Ospf Border-Routers
611
Table 4-90 Show Ip Ospf - Display Description
611
Table 4-91 Show Ip Ospf Border-Routers - Display Description
611
Show Ip Ospf Database
612
Privileged Exec
613
Table 4-92 Show Ip Ospf Database - Display Description
613
Table 4-93 Show Ip Ospf Asbr-Summary - Display Description
614
Table 4-94 Show Ip Ospf Database-Summary - Display Description
615
Table 4-95 Show Ip Ospf External - Display Description
616
Table 4-96 Show Ip Ospf Network - Display Description
617
Table 4-97 Show Ip Ospf Router - Display Description
618
Table 4-98 Show Ip Ospf Summary - Display Description
619
Show Ip Ospf Interface
620
Table 4-99 Show Ip Ospf Interface - Display Description
620
Show Ip Ospf Neighbor
621
Table 4-100 Show Ip Ospf Neighbor - Display Description
621
Show Ip Ospf Summary-Address
622
Show Ip Ospf Virtual-Links
622
Table 4-101 Show Ip Ospf Virtual-Links - Display Description
622
Multicast Routing Commands
623
Ip Igmp Snooping Vlan Mrouter
623
Static Multicast Routing Commands
623
Table 4-102 Multicast Routing Commands
623
Table 4-103 Static Multicast Routing Commands
623
Show Ip Igmp Snooping Mrouter
624
General Multicast Routing Commands
625
Ip Multicast-Routing
625
Show Ip Mroute
625
Table 4-104 General Multicast Routing Commands
625
Table 4-105 Show Ip Mroute - Display Description
626
DVMRP Multicast Routing Commands
627
Router Dvmrp
627
Table 4-106 DVMRP Multicast Routing Commands
627
Probe-Interval
628
Nbr-Timeout
629
Report-Interval
629
Flash-Update-Interval
630
Prune-Lifetime
630
Default-Gateway
631
Ip Dvmrp
631
Ip Dvmrp Metric
632
Clear Ip Dvmrp Route
633
Show Router Dvmrp
633
Show Ip Dvmrp Route
634
Table 4-107 Show Ip Dvmrp Route - Display Description
634
Show Ip Dvmrp Interface
635
Show Ip Dvmrp Neighbor
635
Table 4-108 Show Ip Dvmrp Neighbor - Display Description
635
PIM-DM Multicast Routing Commands
636
Router Pim
636
Table 4-109 PIM-DM Multicast Routing Commands
636
Ip Pim Dense-Mode
637
Ip Pim Hello-Holdtime
638
Ip Pim Hello-Interval
638
Ip Pim Join-Prune-Holdtime
639
Ip Pim Trigger-Hello-Interval
639
Ip Pim Graft-Retry-Interval
640
Ip Pim Max-Graft-Retries
640
Show Ip Pim Interface
641
Show Router Pim
641
Router Redundancy Commands
642
Table 4-110 Show Ip Pim Neighbor - Display Description
642
Table 4-111 Router Redundancy Commands
642
Virtual Router Redundancy Protocol Commands
643
Table 4-112 VRRP Commands
643
Vrrp Authentication
644
Vrrp Priority
645
Vrrp Preempt
646
Vrrp Timers Advertise
646
Show Vrrp
647
Table 4-113 Show Vrrp - Display Description
648
Show Vrrp Interface
649
Table 4-114 Show Vrrp Brief - Display Description
649
Show Vrrp Interface Counters
650
Show Vrrp Router Counters
650
Clear Vrrp Interface Counters
651
Clear Vrrp Router Counters
651
Appendix A: Software Specifications
653
Software Features
653
Management Features
654
Standards
654
Management Information Bases
655
Appendix B: Troubleshooting
657
Problems Accessing the Management Interface
657
Table B-1 Troubleshooting Chart
657
Using System Logs
658
Glossary
659
Index
667
Other manuals for Edge-Core ES4625
Specifications
2 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Edge-Core ES4625 and is the answer not in the manual?
Ask a question
Edge-Core ES4625 Specifications
General
Brand
Edge-Core
Model
ES4625
Category
Network Router
Language
English
Related product manuals
Edge-Core ES4612
666 pages
Edge-Core ES3510
624 pages
Edge-Core ES3528MV2
1480 pages
Edge-Core ES3528MF-PoE
64 pages
Edge-Core ECS4210-12P
712 pages
Edge-Core ECS4610-24F
1154 pages
Edge-Core ECS3510-52T
1474 pages
Edge-Core AS9516-32D
15 pages
Edge-Core AS5835-54X
9 pages
Edge-Core AS5835-54T
9 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
