Displaying Interface Information
You can display a summary of the current interface status for PIM-DM, including the
number of neighboring PIM routers, and the address of the designated PIM router.
Command Attributes
• Interface – A VLAN interface on this router.
• Address – The IP address for this interface.
• Mode – The PIM mode in use. (This router only supports Dense Mode at this time.)
• Neighbor Count – The number of PIM neighbors detected on this interface.
• DR Address – The designated PIM router for this interface.
Web – Click Routing Protocol, PIM-DM, Interface Information.

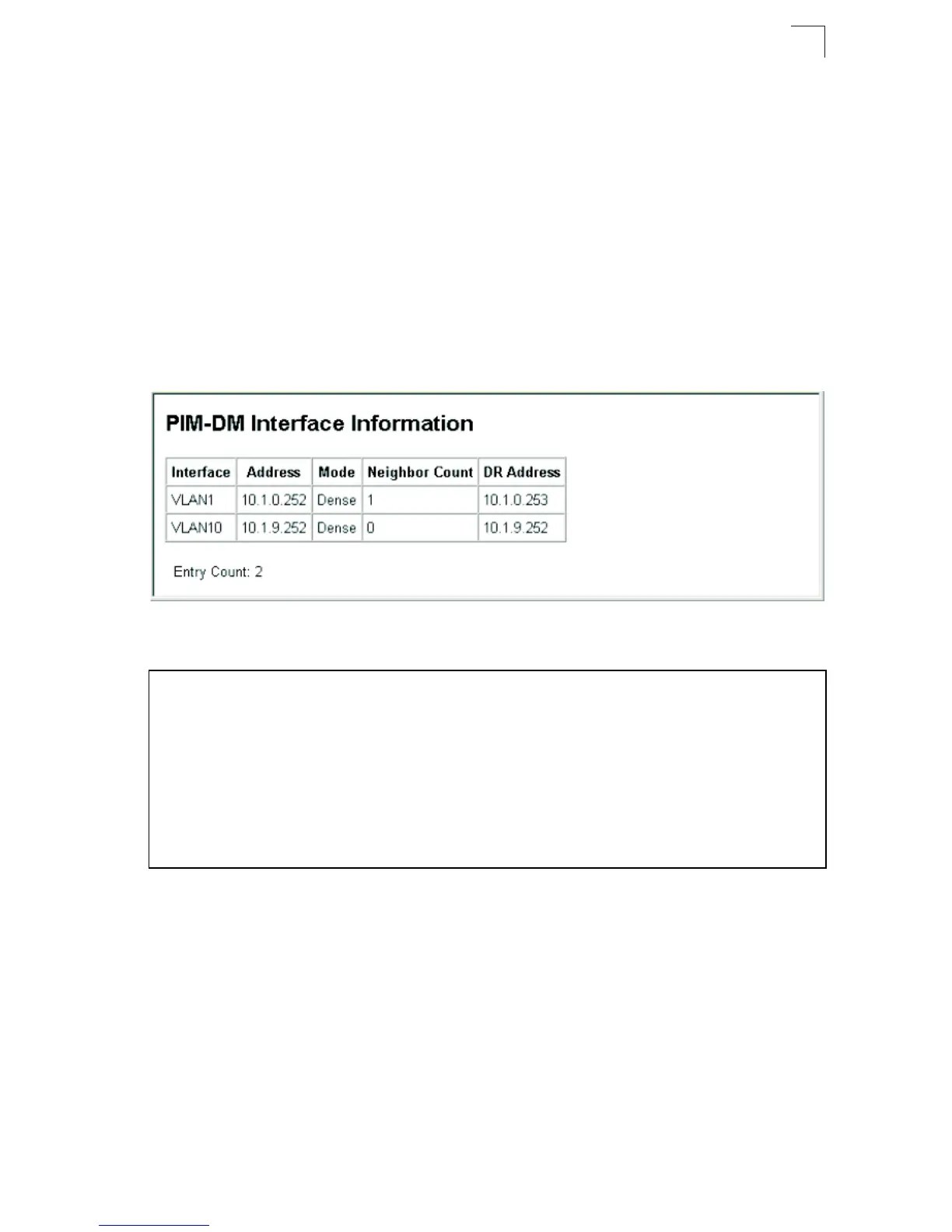

Figure 3-156 PIM-DM Interface Information
CLI – This example shows the PIM-DM interface summary for VLAN 1.
Displaying Neighbor Information
You can display all the neighboring PIM-DM routers.
Command Attributes
• Neighbor Address – IP address of the next-hop router.
• Interface – VLAN that is attached to this neighbor.
• Up time – The duration this entry has been active.
• Expire – The time before this entry will be removed.
• Mode – PIM mode used on this interface. (Only Dense Mode is supported.)
Console#show ip pim interface 1 4-313
Vlan 1 is up
PIM is enabled, mode is Dense.
Internet address is 10.1.0.253.
Hello time interval is 30 sec, trigger hello time interval is 5 sec.
Hello holdtime is 105 sec.
Join/Prune holdtime is 210 sec.
Graft retry interval is 3 sec, max graft retries is 2.
DR Internet address is 10.1.0.253, neighbor count is 1.
Console#
