Edge-Core ES4625 - Figure 3-89 Queue Scheduling; Priority Queues

Class of Service Configuration
3-155
3
Web – Click Priority, Queue Scheduling. Select the interface, highlight a traffic class
(i.e., output queue), enter a weight, then click Apply.

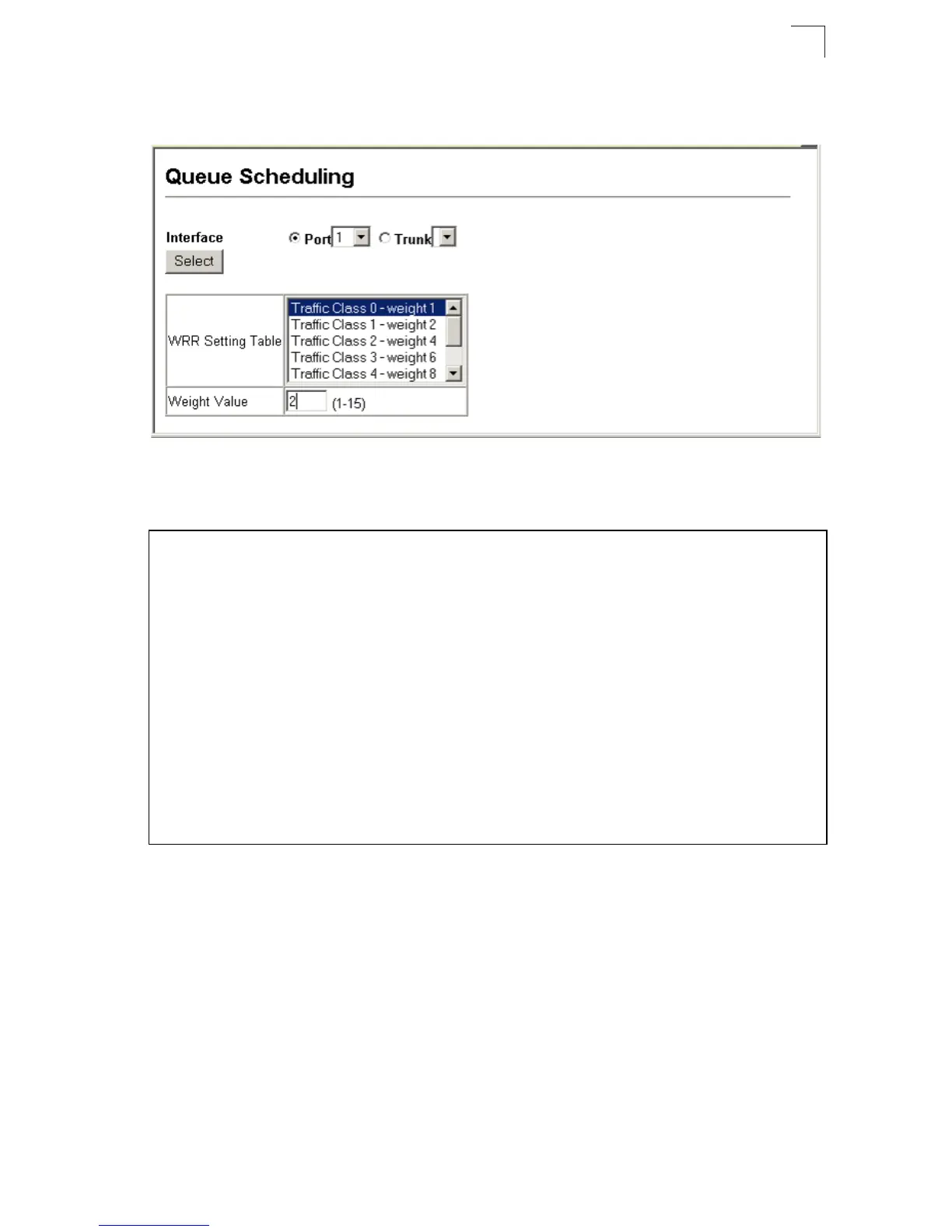

Figure 3-89 Queue Scheduling
CLI – The following example shows how to assign WRR weights to each of the
priority queues.
Console(config)#queue bandwidth13579111315 4-208
Console(config)#exit
Console#show queue bandwidth 4-210
Information of Eth 1/1
Queue ID Weight
-------- ------
01
13
25
37
49
511
613
715
Information of Eth 1/2
Queue ID Weight
.
.
.
