INSTALLATION
OVEN ASSEMBLY
STACKING YOUR OVEN (CONTINUED)

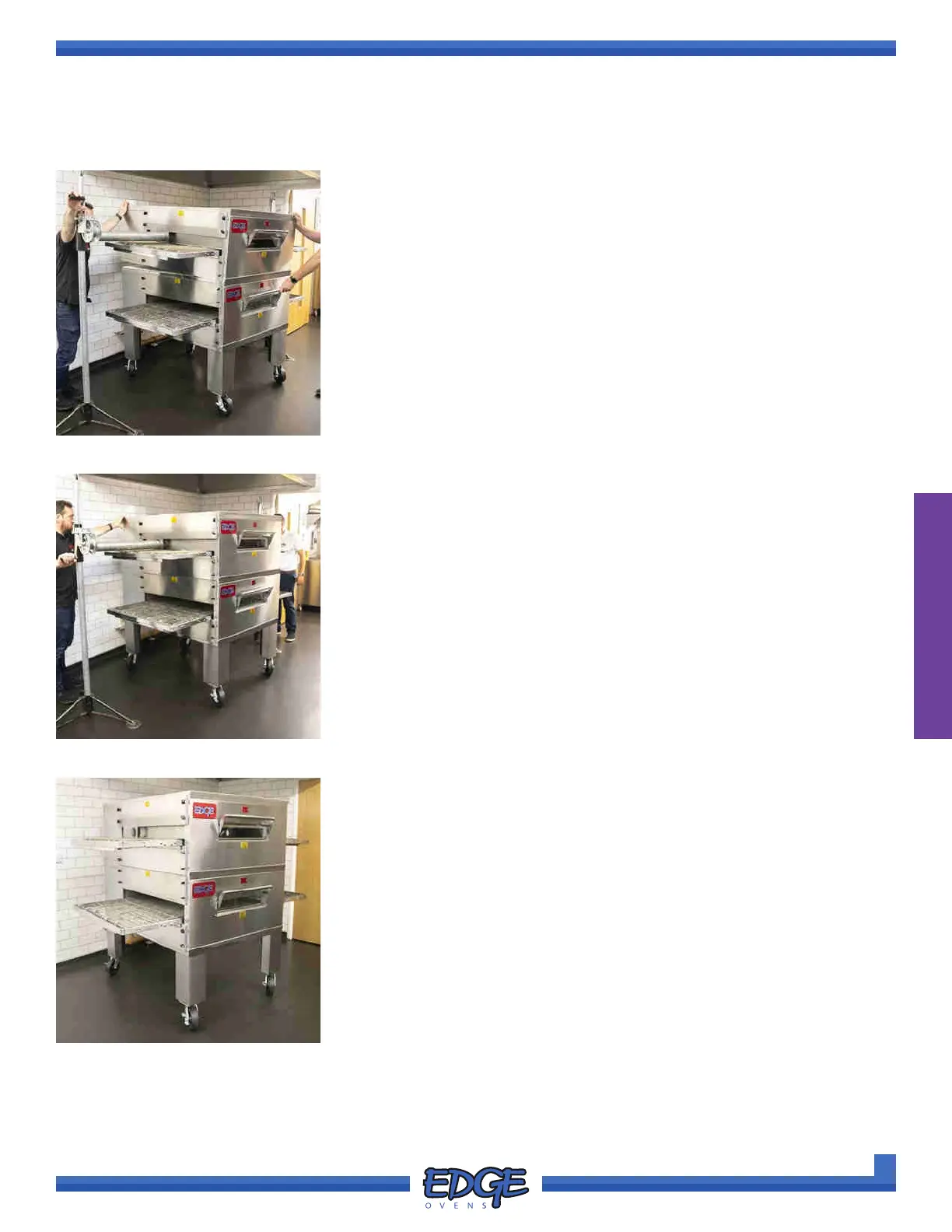

6. Align the front edge of the suspended oven to the front edge of top of
the previously assembled oven(s). (Figure 2-34)
FIGURE 2-34
FIGURE 2-35
7. Begin lowering the oven steadily and equally until the suspended oven
is sat ush, with the oven bottom lip seated snugly and correctly over
the oven below and the weight of the oven has been released from the
lifting jacks. (Figure 2-35)
FIGURE 2-36
8. Once the oven has been lowered and weight has been released from
the lifting jacks, remove the lifting jacks and pipe from the oven and
immediate work area. (Figure 2-36)
9. EDGE DELIVERY CART INSTALL ONLY. Install the MAIN BLOWER
CONNECTION HARNESS as shown in the “MAIN BLOWER
HARNESS CONNECTION & COVER INSTALL” section. (Figure 2-24
to Figure 2-26)
