INSTALLATION
OVEN ASSEMBLY
STACKING YOUR OVEN (CONTINUED)

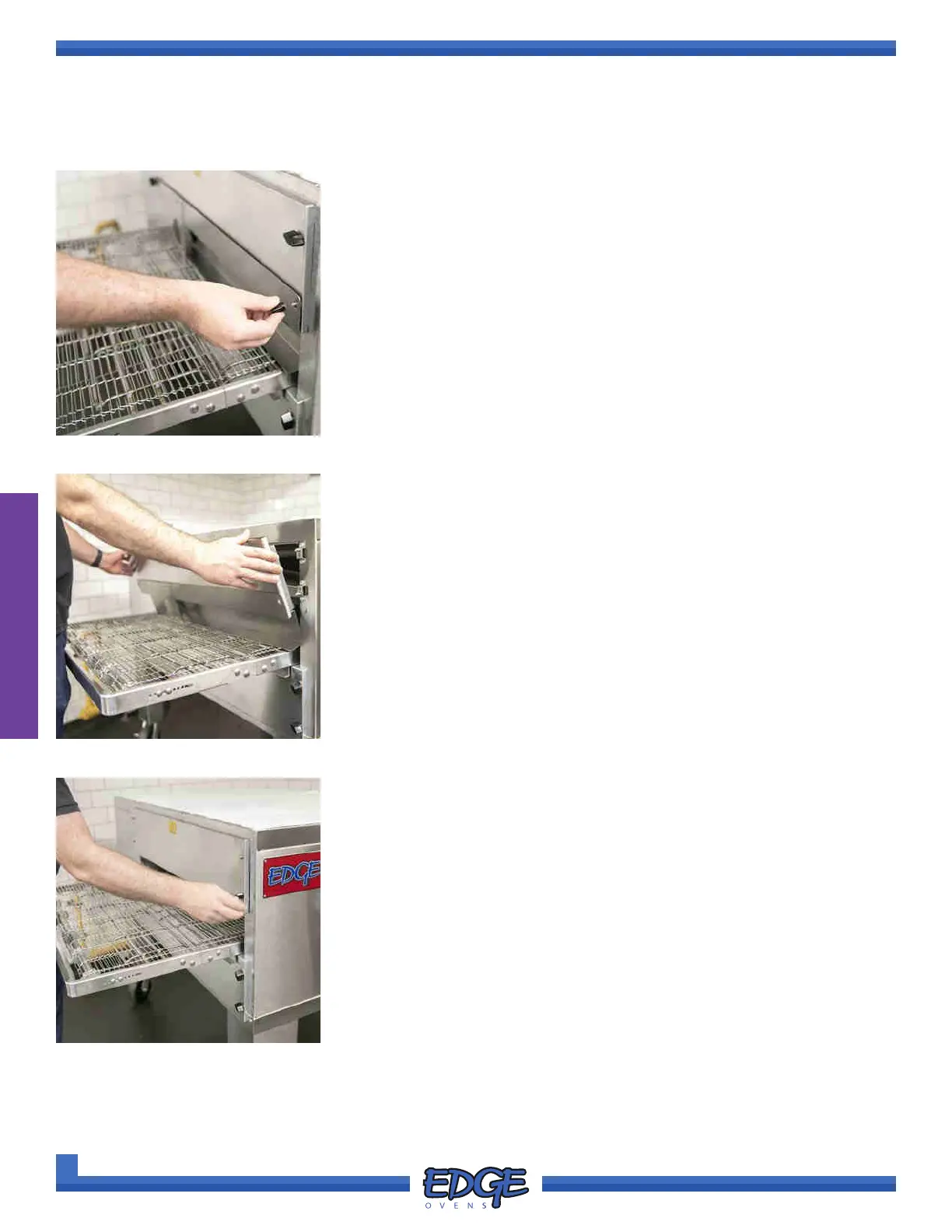

10. Once the ovens have been stacked and the lifting jacks and pipe have
been removed, begin removing the LIFTING PLATES. Remove all the
wingnuts from the UPPER END PANELS. (Figure 2-37)
FIGURE 2-37
FIGURE 2-38
11. Carefully pull the LIFTING PLATE and UPPER END PANEL from the
threaded studs and remove the LIFTING PLATE. Repeat for all lifting
plates. (Figure 2-38)
FIGURE 2-39
12. Reinstall all the UPPER END PANELS and WINGNUTS once the
lifting plates have been removed. (Figure 2-39)
