Edwards STP-iXA2205 Series User Manual

STP-iXA2205 Series Turbomolecular Pump
Nov. 10 17 Issue 1-h
TECHNICAL DATA
2
2.6 External appearance of the STP pump



Ǿ





㩩






ѳ





㩩


Ǿ#
)
'
(
&
%
$








No. Item Description
1 Height of water cooling port
2 DC cable connector
3 Control unit
4 Height of the purge port
5 Outlet port flange KF40
6 Screw hole for legs 4-M20 depth 24
7 Purge port KF10
8 Cooling water port 2-Rc1/4

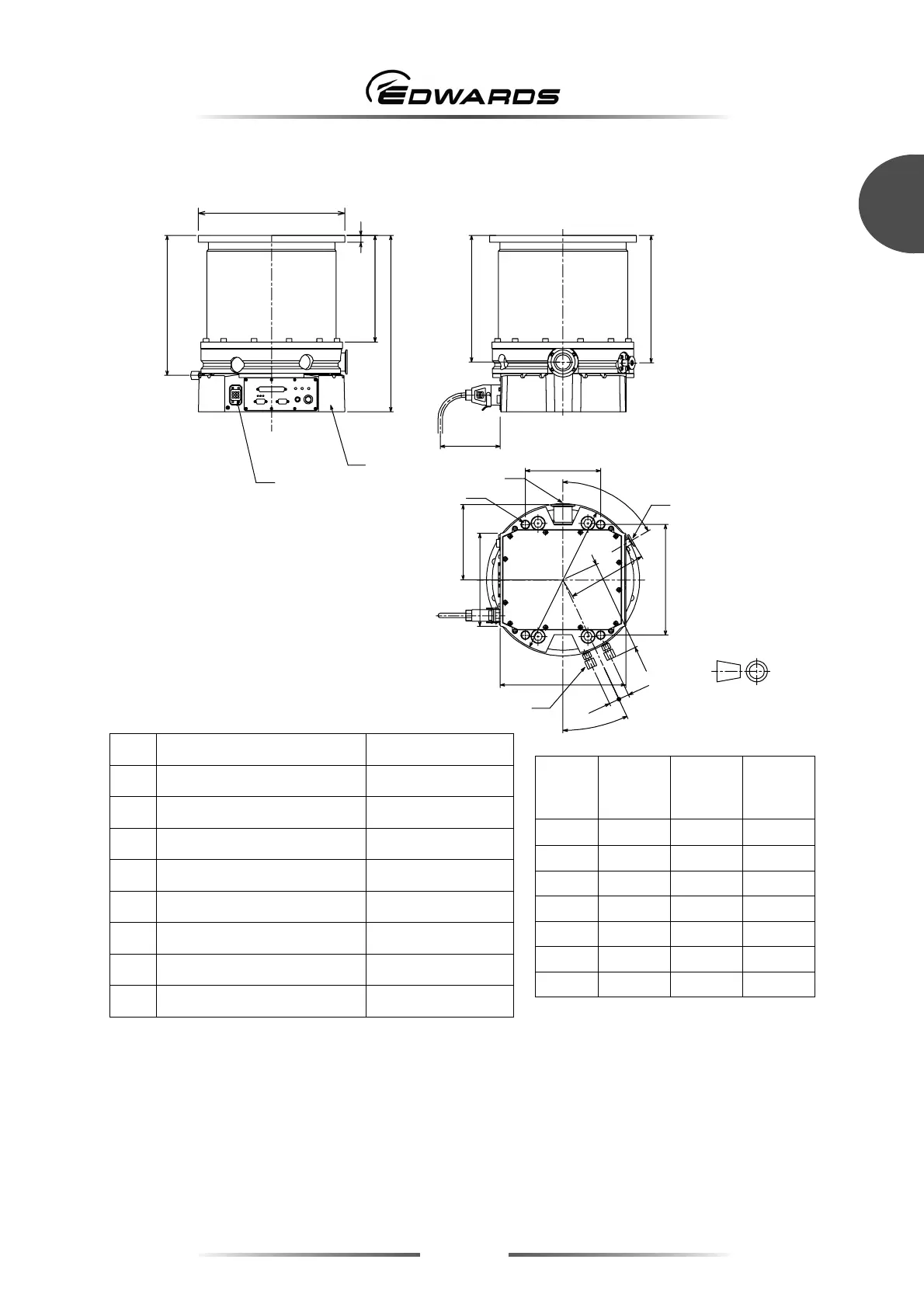

Figure 9 - External appearance of STP-iXA2205C(V): VG250/ISO250F/ICF305
Inlet
port
flange
VG250 ISO250F ICF305
㱢A
350 335
305
B 18 16* 28
C 235 245 275
D 395 405 435
E 312 322 352
F 281 291 321
G 283 293 323
* ISO250F: B=15
(with torque reduction mechanism)
