Resistance welder MULTISPOT MI-100control
Operation
39

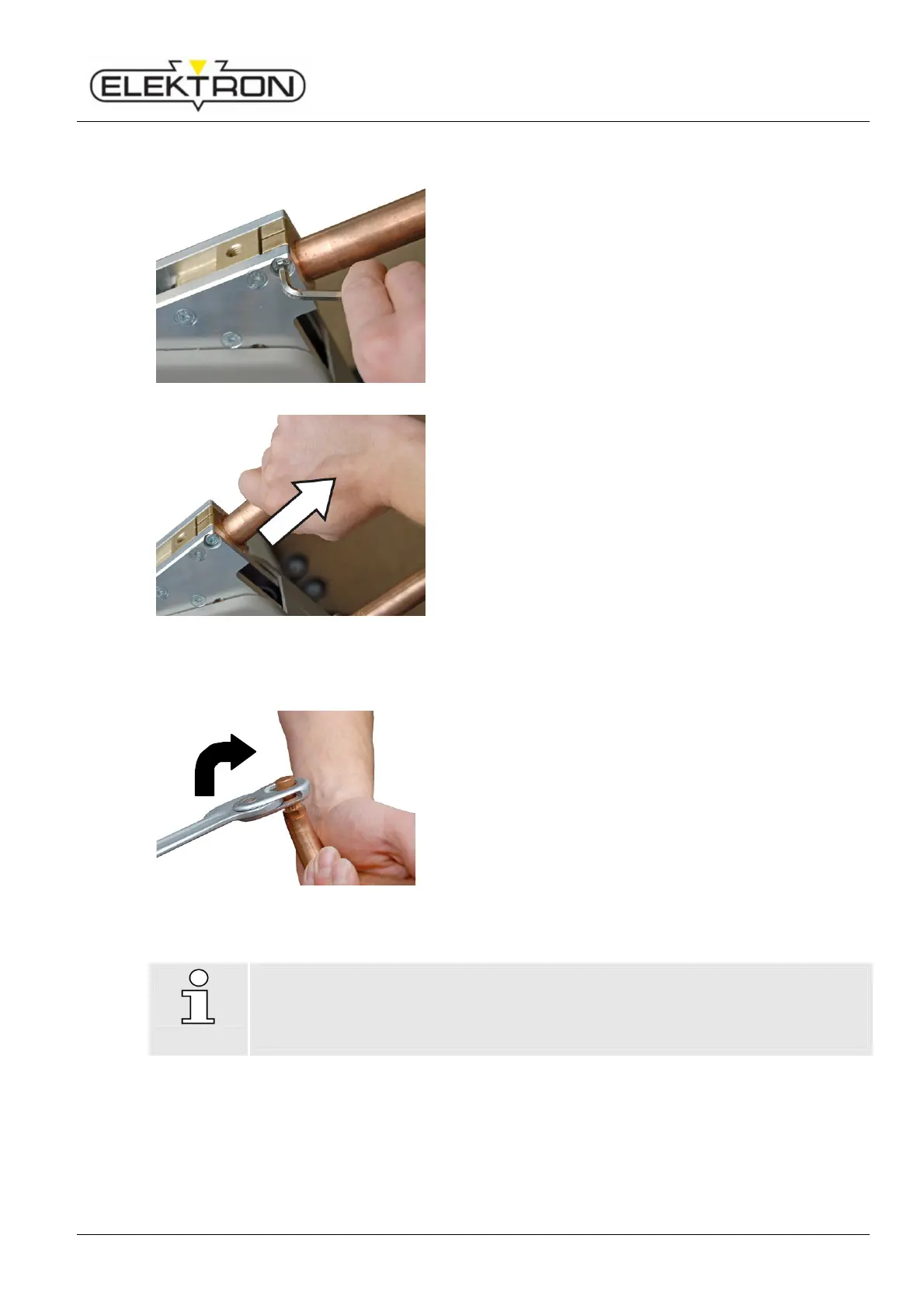

Exchanging electrode arms
Fig. 34: Unbolting electrode arm
1. To unbolt the electrode arm, use the Allen key provided
for that purpose (Fig. 34).
Fig. 35: Removing the electrode arm
2. Remove the electrode arm simply by pulling it out.
(Fig. 35).
3. Insert the new electrode arm and bolt down.
Exchanging electrode caps
Fig. 36: Exchanging electrode caps
1. To loosen the electrode caps, use the special key
provided for that purpose (or some equivalent tool)
(Fig. 36).
2. Turn clockwise, otherwise the cone comes loose.
3. Put the new caps on the electrode head and press in
position.
NOTE!
The perfectly sound condition of the caps is essential for good welding results.
Electrode caps must be milled (or replaced) latest after 50 welding jobs, especially
when working with super speed and / or galvanised steel.
