Resistance welder MULTISPOT MI-100control
Operation
40
Deploying the electrode arm

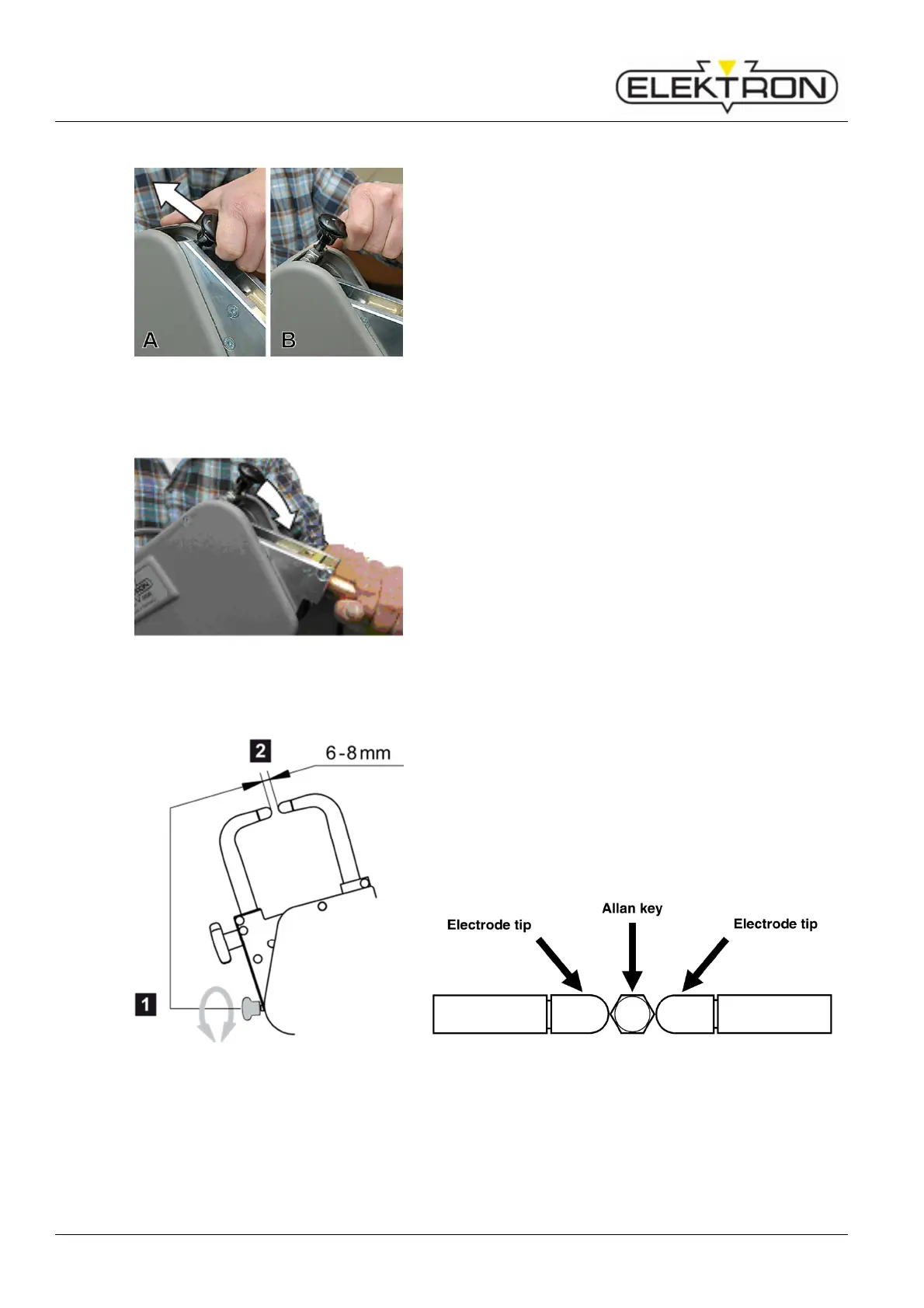

Fig. 37: Unlocking the arm / hoop
1. Switch the locking device of the electrode arm / hoop from
position “locked” (Fig. 37/A) to position “open” (Fig. 37/B)
as shown in the picture.
Locking the electrode arm
Fig. 38: Locking the arm / hoop
2. Push the electrode arm / hoop without much force into the
locking device until you feel and hear it engage (Fig. 38).
Adjusting the distance between electrodes
Fig. 39: Adjusting the distance between
electrodes
Make sure the distance between the electrodes is 6 to
8 mm.
Carry out the first welds, and then check the distance
again. Re-adjust, if necessary.
Use an Allen key SW 5 as gauge in between the tips:
Fig. 40: Measure the distance between electrode tips
