Commissioning Proline Prowirl F 200 PROFIBUS PA
112 Endress+Hauser
Parameter Prerequisite Description Selection / User
entry
Factory setting
Failure frequency The Frequency option is
selected in the Operating
mode parameter (→  106),
and one of the following
options is selected in the
Assign frequency output
parameter (→  109):
• Volume flow
• Corrected volume flow
• Mass flow
• Flow velocity
• Temperature
• Calculated saturated steam
pressure
*
• Steam quality
*
• Total mass flow
*
• Energy flow
*
• Heat flow difference
*
Enter frequency output value
in alarm condition.
0.0 to 1 250.0 Hz 0.0 Hz
Invert output signal – Invert the output signal. • No
• Yes
No
* Visibility depends on order options or device settings
Configuring the switch output
Navigation
"Setup" menu → Advanced setup → Pulse/frequency/switch output
Structure of the wizard for the switch output
End of wizard
Operating
mode
Switch
Switch
out funct
Diag.
behavior
Off On
Assign
diag. beh
Alarm
Alarm or
warning
Warning
Invert outp.sig.
A0017439-EN

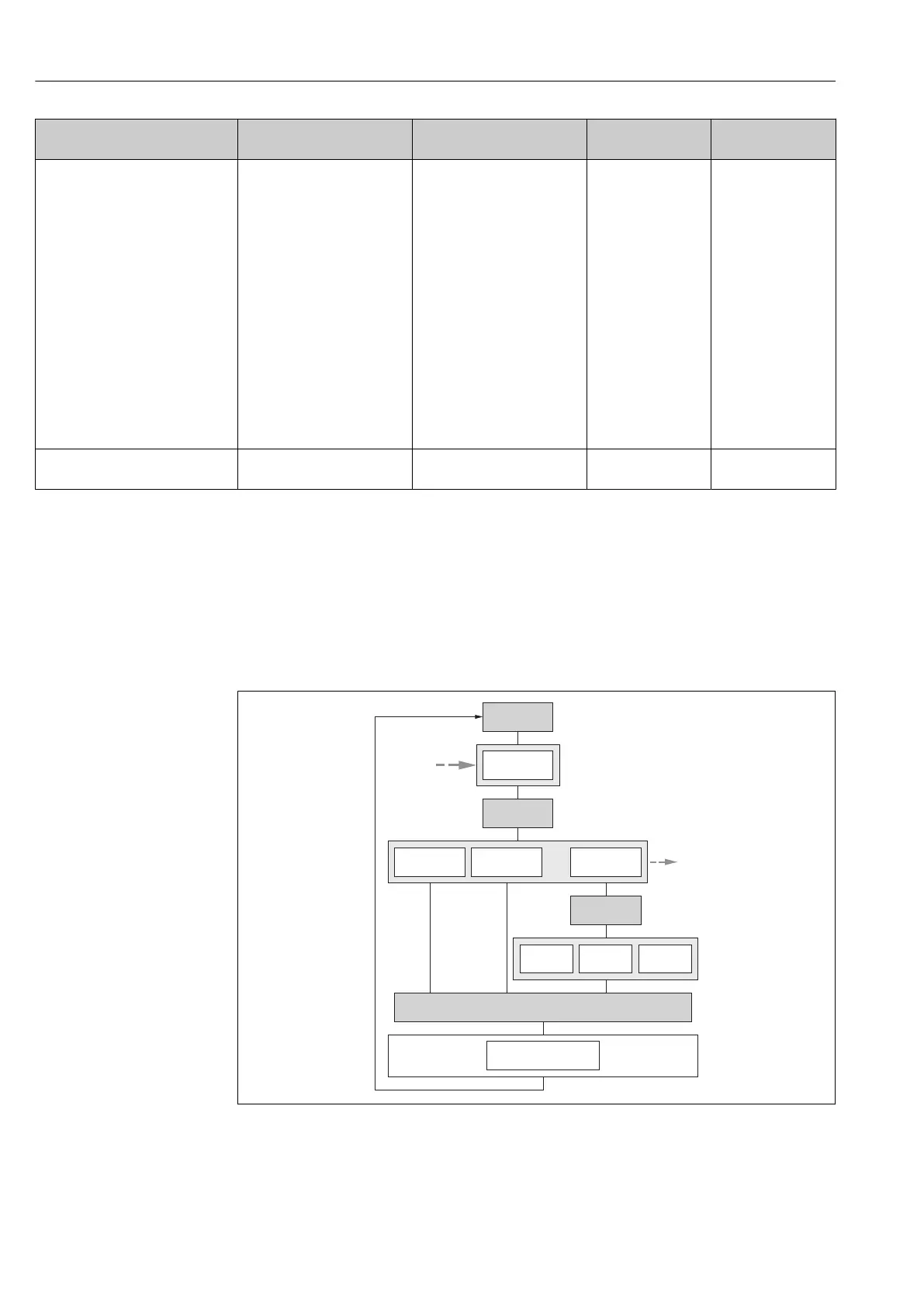

 28 "Pulse/frequency/switch output" wizard in the "Advanced setup" submenu: "Operating mode"
parameter"Switch" option (part 1)
