Maintenance 4. Backup and Restore

134 RC180 Rev.17

(8)

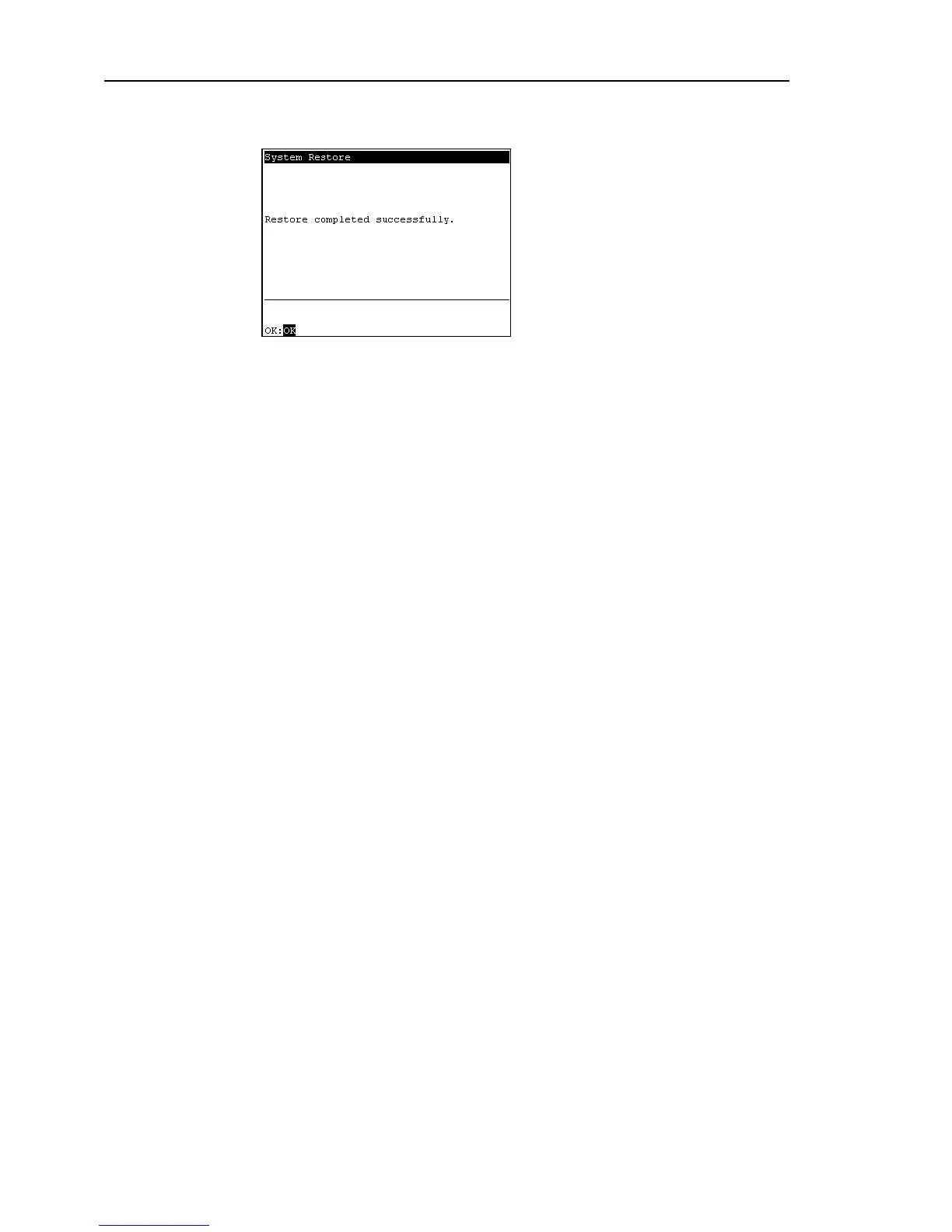

After execution is completed, the following screen appears.

Press the <OK> key and the Controller reboots.
