Maintenance 6. Maintenance Parts Replacement Procedures
146 RC180 Rev.17

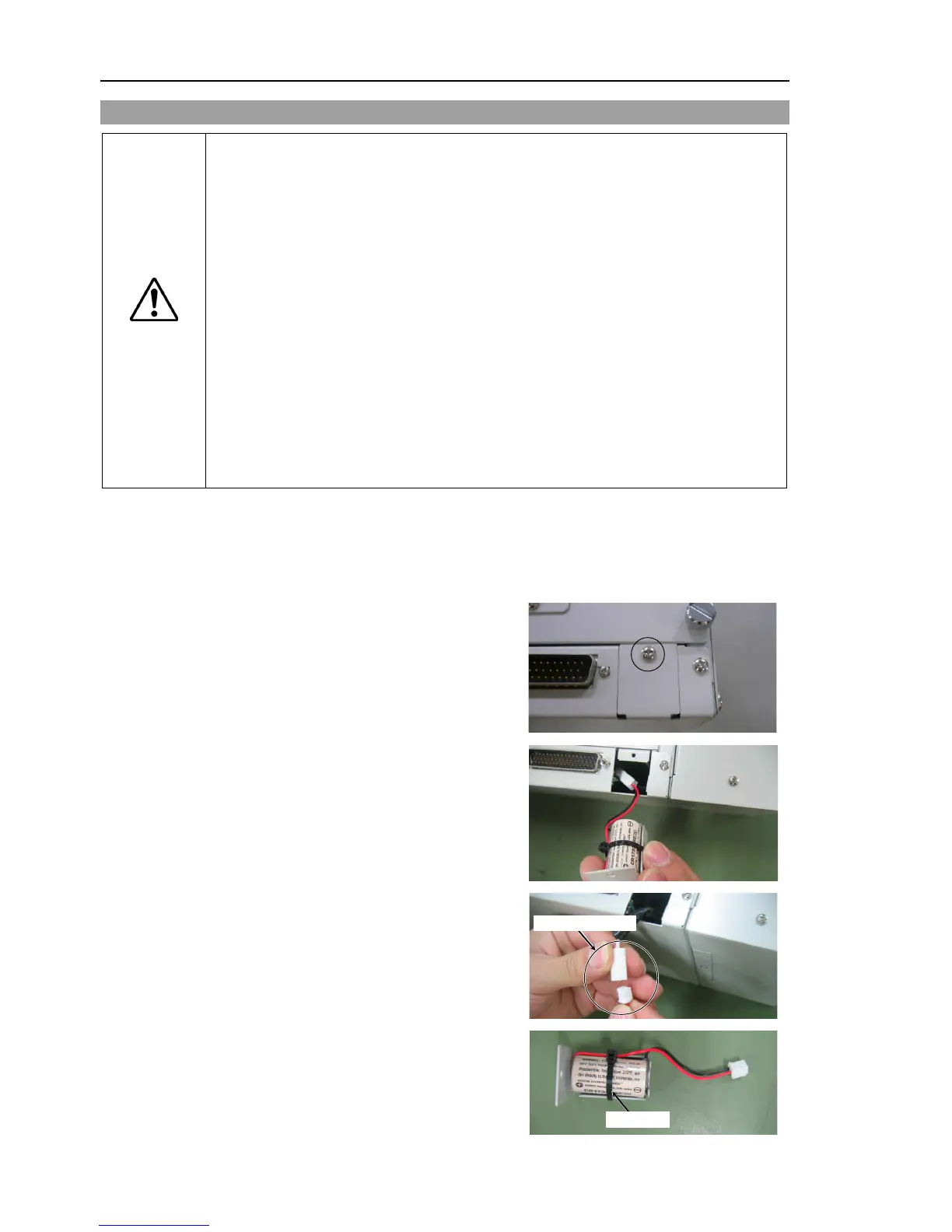

6.2 Battery
CAUTION
■
Use
meticulous care when handling the lithium battery. Improper handling of the
lithium batte
ry as mentioned below is extremely hazardous, may result in heat
generation,
leakage, explosion, or inflammation, and may cause serious safety
problems.
・Battery Charge
・
Disassembly
・
Incorrect Installation
・
Exposing to Fire
・
Forced Discharge
・Deformation by Pressure
・
Short-circuit (Polarity; Positive/Negative)
・
Heating (85°C or more)
・
Soldering the terminal of the lithium battery directly
■
Be sure to use the battery supplied as maintenance part from EPSON (Refer to
9. Maintenance Parts
List).
■
When disposing of the battery, consult with the professional disposal services or
comply with the local regulation.
Spent battery or not, make sure the battery terminal is insulated. If the terminal
contacts with the other metals, it may short and result in heat generation,
leakage, explosion, or inflammation.
Before starting
battery
replacement, turn on the controller for approximately one
minute.
Perform the replacement within 10 minutes to prevent data loss.
Battery
Remov
al
(1)
Backup the Controller data.
Refer to
Maintenance 4. Backup and Restore.
(2)
Turn OFF the Controller.
(3)
Remove
the screw for the battery
mounting plate.
(4)
Pull out the battery assembly.
The lithium battery cable is connected to
the main chassis. Be sure to remove it
slowly.
(5)
Disconnect the relay
connector.
Relay Connector
(6)
Cut
the cable tie to remove the lithium
battery.
Cable Tie

NOTE

NOTE
