Setup & Operation 3. Installation
22 RC180 Rev.17
3.2.2 Installation
- Mount the Controller mounting screws with 80 to 110 Ncm torque.

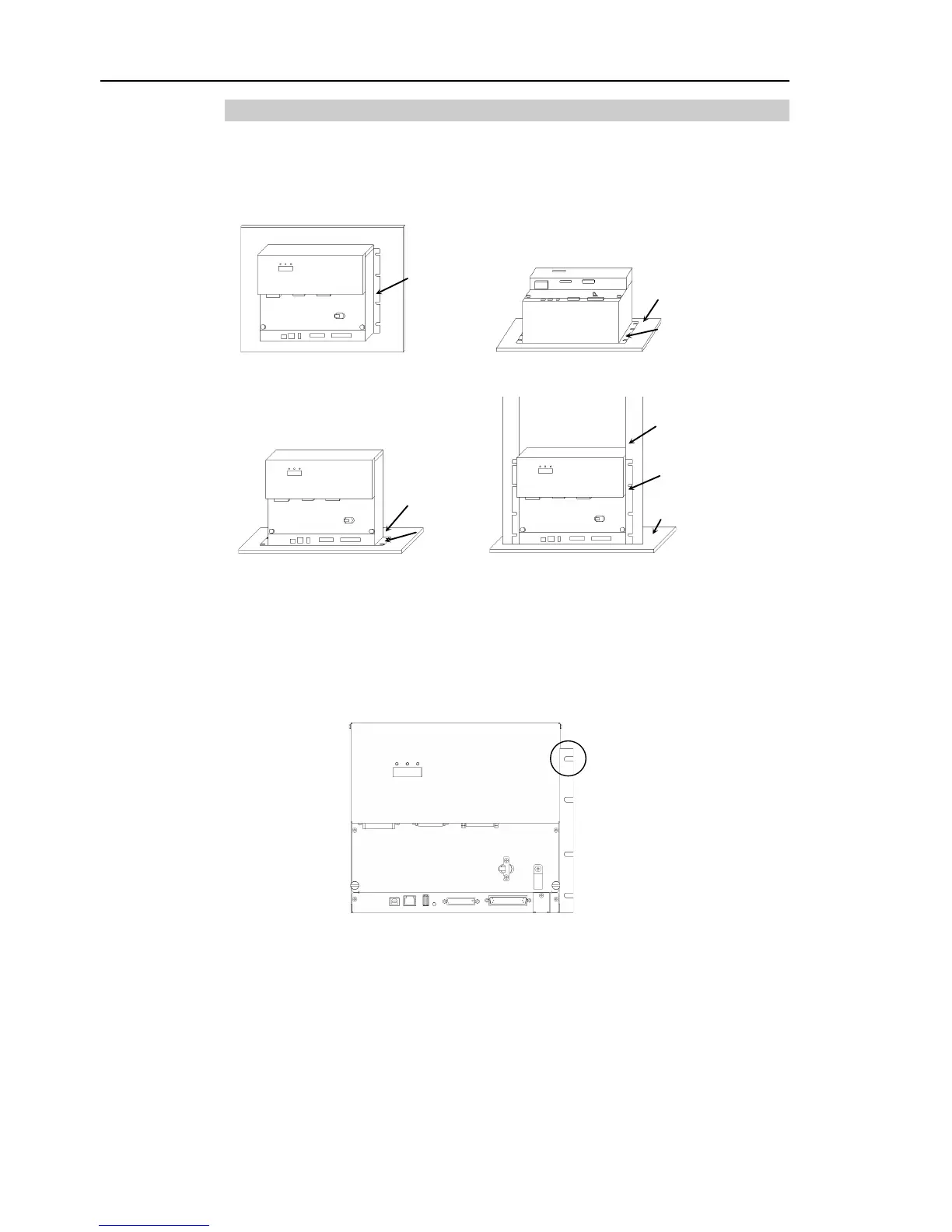

- Install the controller on a flat surface such as wall, floor, and controller box in the
direction shown from (A) to (D).
(A) (B)
Fixture L
Base Table
Fixture L
(C) (D)
Base Table
Fixture S
Rack
Base Table
Fixture L
There are two types of fixtures. Mount the fixture to the Controller with the four
attached screws.
Fixture L: Used in (A), (B), and (D)
Fixture S: Used in I
The length from the edge of fixture L differs by the side. Refer to the following figure
and mount the side with shorter distance from the edge to the screw hole on the Upper
side.
NOTE
