Maintenance 6. Maintenance Parts Replacement Procedures
RC180 Rev.17 161

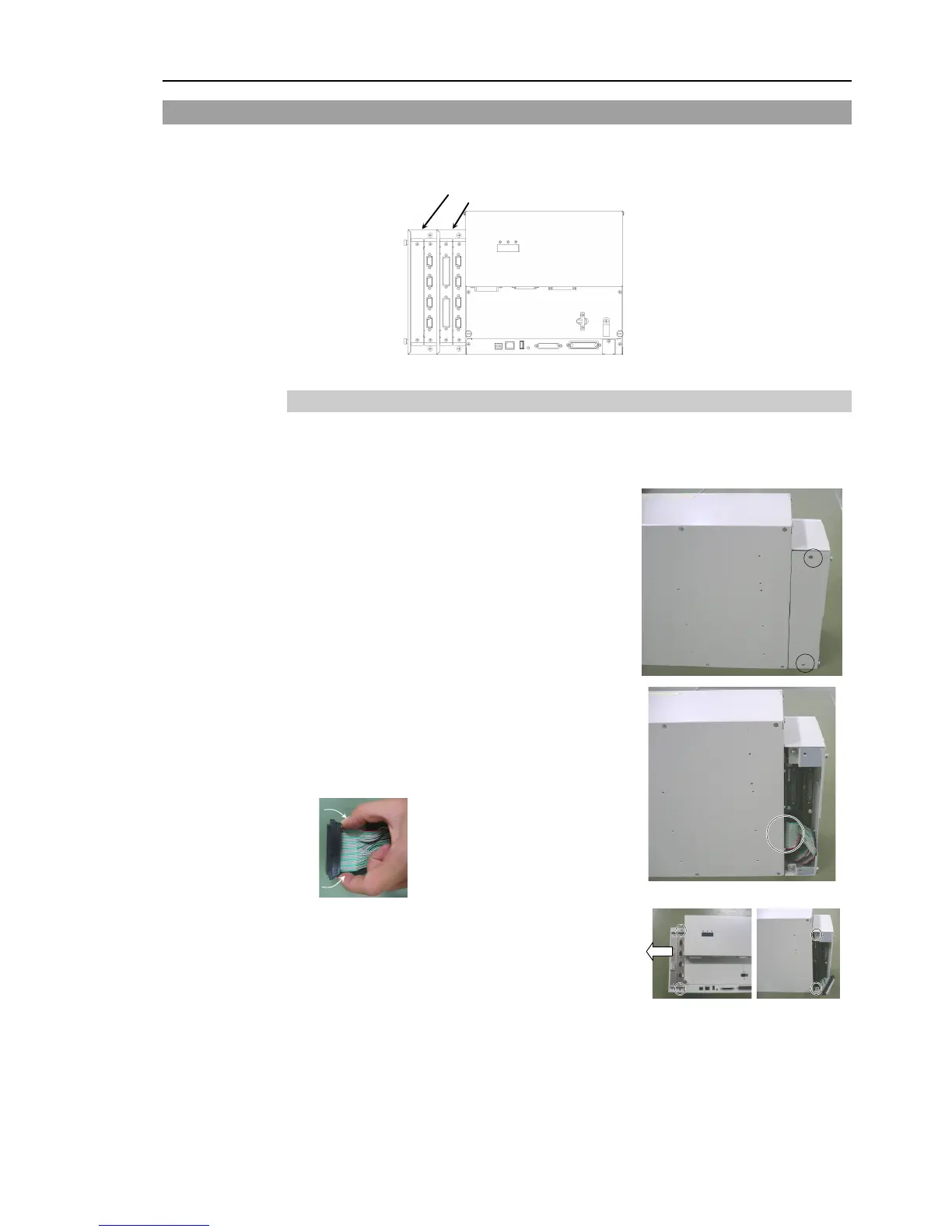

6.7 Option Unit
This section contains instructions for removing and installing the two Option Units.
Option Unit 1 and Option Unit 2 are shown in the following figure.
Option Unit 1
Option Unit
2
RC180
6.7.1 Remove Option Unit 1
(1)
Turn OFF the Controller and unplug the power connector.
(2)
Disconnect the cables connected to
the Option Unit board.
(3)
Remove
two screws on the backside and remove
the
cover.
(4)
Pull out the flat cable connector connected on
the
backside.
Compress both ends of
the connector to pull out
t
he connector.
(5)
Remove
the
screws (two screws each on front side
and backside) and remove Option Unit 1 in
the
direction shown by the arrow.

NOTE
