10. I/O Connector
The I/O connector is for connecting your input/output equipment to the system.
Pins
Bit number
Input
24
0 to 23
Output
16
0 to 15
Refer to Setup & Operation 12.2. Expansion I/O board.
For cable wiring, refer to the Setup & Operation 3.5 Noise Countermeasures in order to
prevent noise.
Remote function is initially assigned to both input and output from 0 to 7. For further
details, refer to 11. I/O Remote Settings.
10.1 Input Circuit
Input Voltage Range : +12 to 24 V ±10%
ON Voltage : +10.8 V (min.)
OFF Voltage : +5 V (max.)
Input Current : 10 mA (TYP) at +24 V input
Two types of wiring are available for use with the two-way photo coupler in the input
circuit.

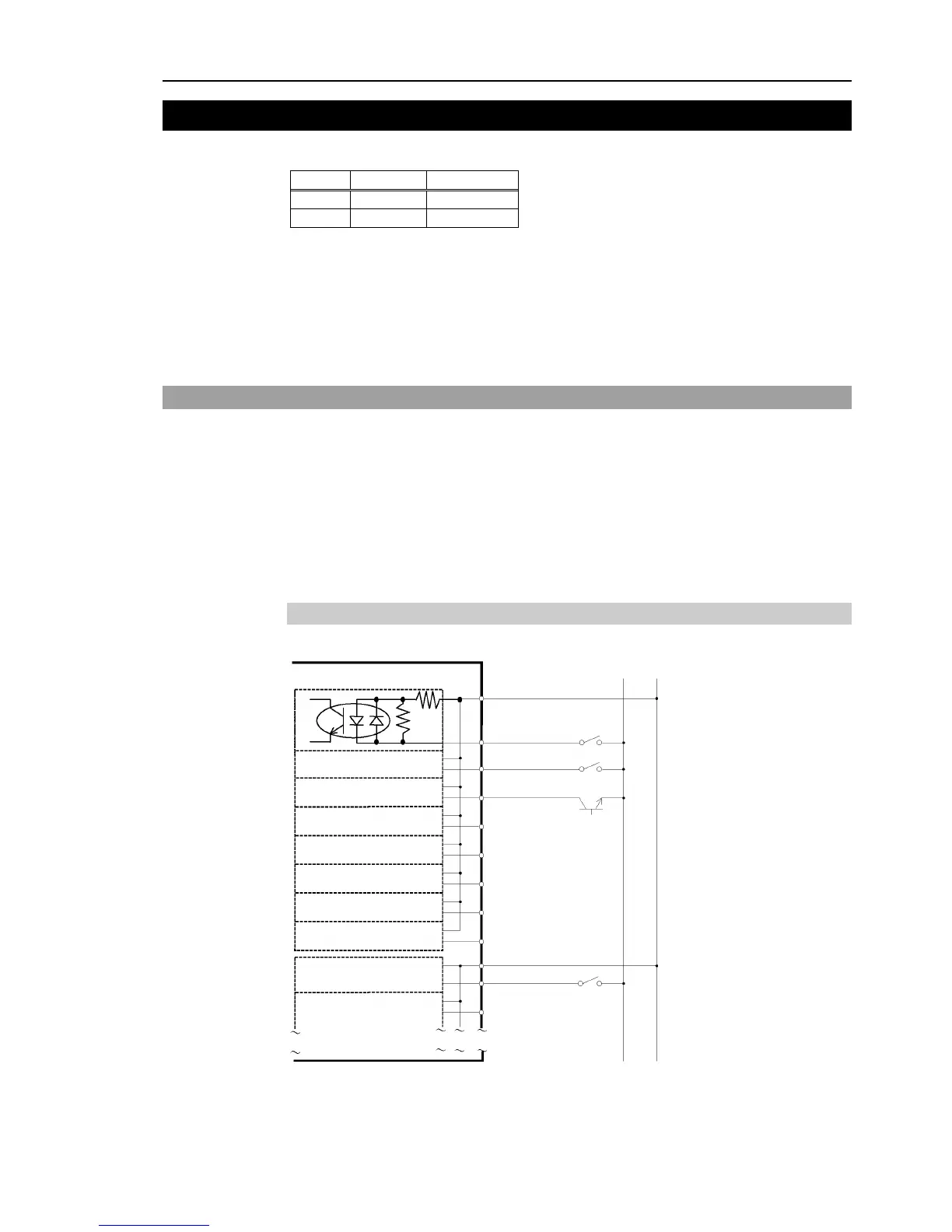

Typical Input Circuit Application 1
1 Input
No.0 to 7 common
2 Input No.0
3 Input No.1
4 Input
No.2
5 Input No.3
6
Input No.4
7 Input
No.5
8 Input No.6
9 Input No.7
I/O-1
(Same)
Omit
GND +DC
18 Input No.8 to 15 common
19 Input No.8
20 Input No.9
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
