Epson RC180 User Manual

Maintenance 6. Maintenance Parts Replacement Procedures
158 RC180 Rev.17
6.5 CF (Compact Flash)
CF
Remove
(1)
Turn OFF the Controller and unplug the power connector.
(2)
Remove
the CPU board unit.
Refer :
Maintenance 6.4 CPU Board Unit
(3)

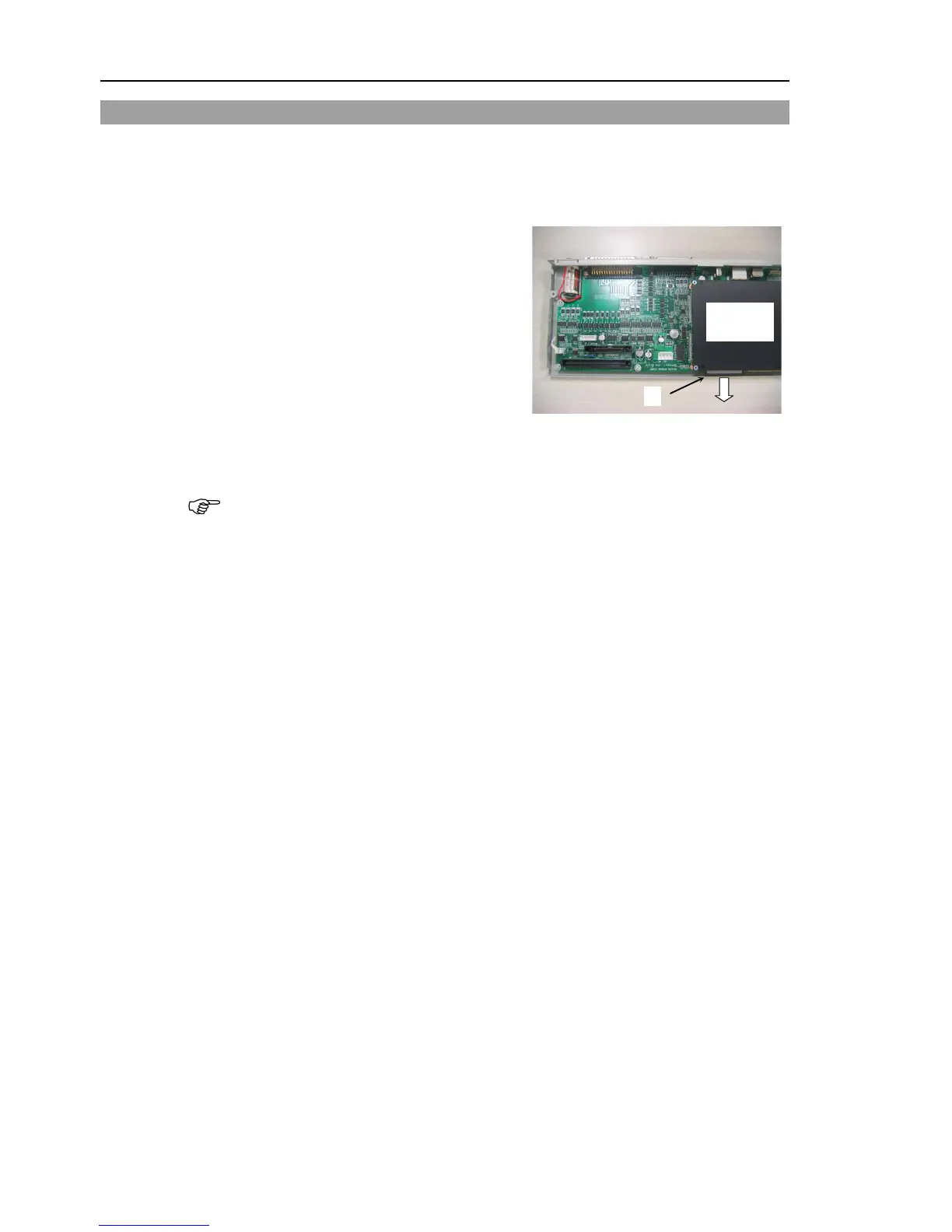

Pull out
the CF in the direction shown
by the arrow.
CF
ETX
Module
CF
Mount
(1)
Insert the new CF along the guide rail.
Insert the CF until the CF is approximately 3 mm out from
the ETX module.
(2)
Mount the CPU board unit.
Refer :
Maintenance 6.4 CPU Board Unit
(3)
Plug in
the power connector. Turn ON the Controller and make sure that the
Controller starts properly without any vibration or abnormal noise.

NOTE
