Maintenance 6. Maintenance Parts Replacement Procedures
RC180 Rev.17 165

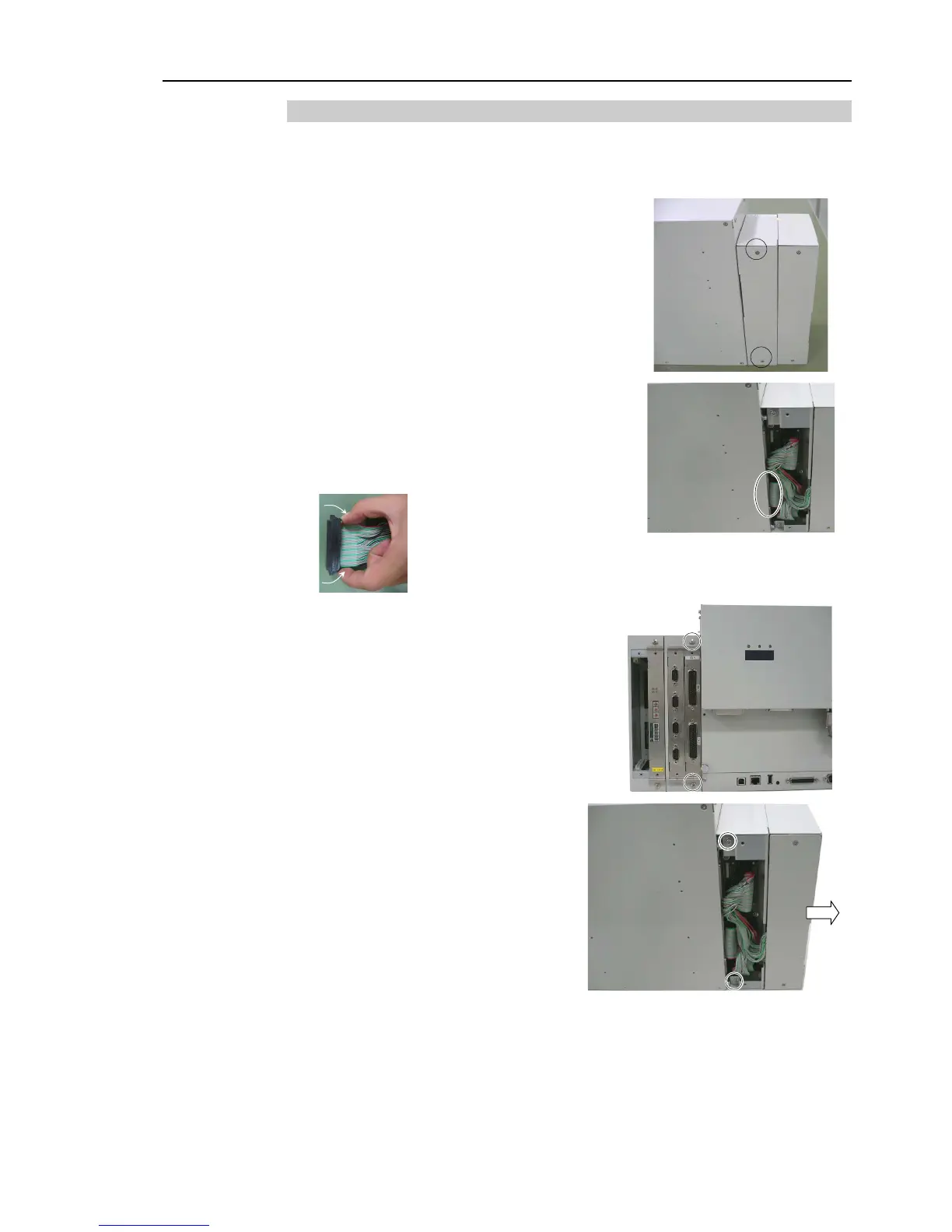

6.7.5 Remove Option Units 1 & 2
(1)
Turn OFF the Controller
and unplug the power connector.
(2)
Disconnect the cables connected to
the Option Unit boards.
(3)
Remove two screws from the backside of Option
Unit 1 to remove the cover.
(4)
Pull out the flat cable connector connected on
the
backside.
Compress both ends of
the connector to pull out
t
he connector.
(5)
Remove
the screws (two screws each on
front side and backside) and remove
Option Units 1 and 2 in direction s
hown
by the arrow.

