Maintenan
ce
5. Firmware Update
136
RC180 Rev.
17
(6)

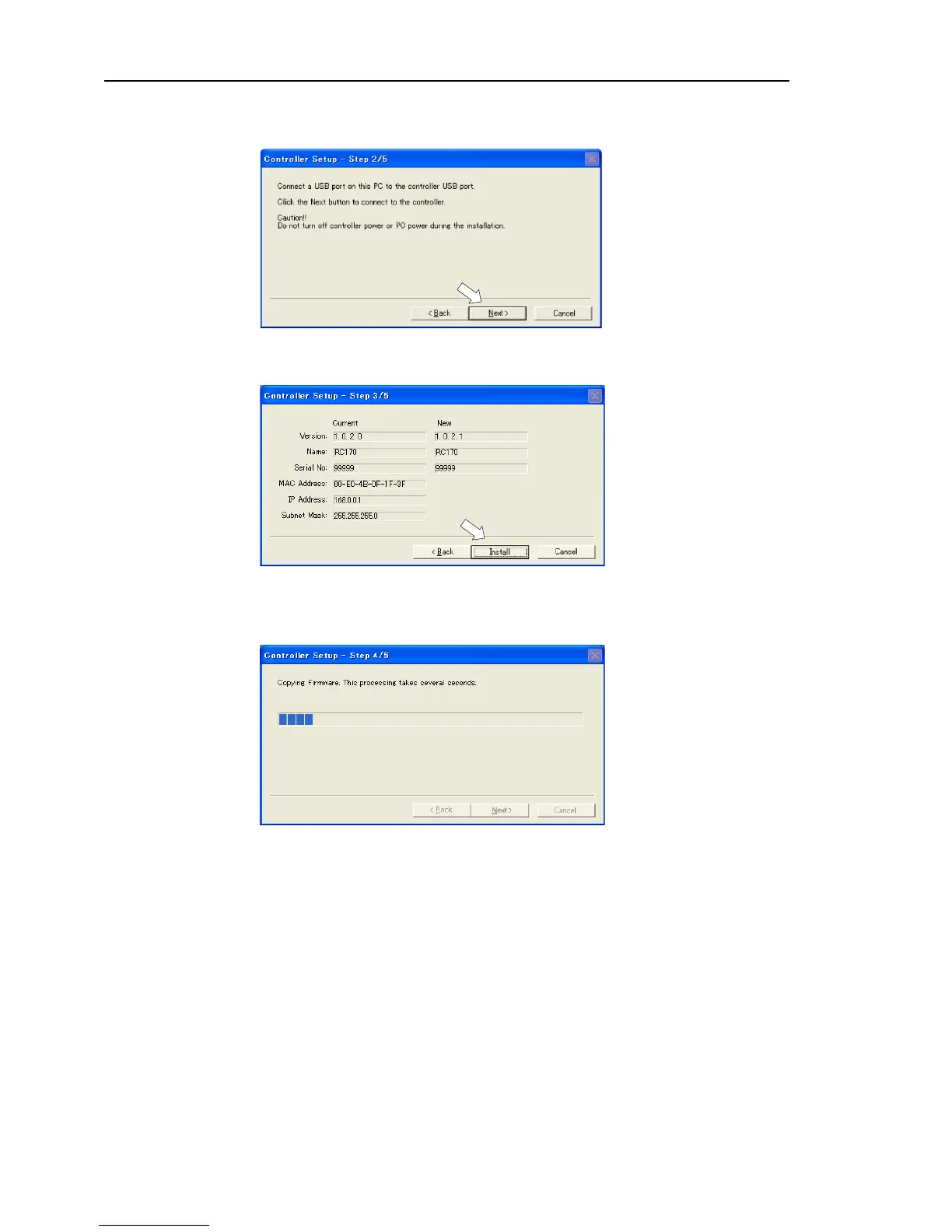

Mak
e sure
that
the development PC is connected t
o
the Contro
ller with a
USB cable
and Click the
<Next> button
.
(7)
C
heck the
current firm
ware v
ersion and
the
new
firmware version
and
click th
e
<Install> bu
tton.
(8)
T
he f
irmw
are
upgrade
starts.
It takes
several minute
s to complete
.
Do not unplug the U
SB cable during t
ransfer or turn OFF
the Controller
or
the
developm
ent PC.
NOTE
147
149
