Epson RC180 User Manual

Setup & Operation 12. Option Units
86 RC180 Rev.17
PROFIBUS DP Specifications
Item
Specification
Name
PROFIBUS-DP board
Code
R12B040707
Connection Method
Hybrid
(token passing procedure and master-slave communication)
Baud Rates (bps)
9.6k, 19.2k, 45.45k, 93.75k, 187.5k, 500k,
1.5 M, 3 M, 6 M, 12 M
Transfer Distance
Baud Rates
Cable Length
12M (bps)
6M (bps)
3M (bps)
1.5M (bps)
500k (bps)
187.5k (bps)
93.75k (bps)
45.45k (bps)
19.2k (bps)
9.6k (bps)
100 m
100 m
100 m
200 m
400 m
1000 m
1200 m
1200 m
1200 m
1200 m
Maximum Stations
126 (including master unit and repeater)
Data Length / Frame
244 bytes
Cable
2-wire cable dedicated to PROFIBUS (2 wires for signal)
Modes
Slave
Interface
1 PROFIBUS-DP port (EN 50170)
Output
Current Capacity
Maximum 150 mA
Input Data Size
256 bits (32 bytes)
Output Data Size
256 bits (32 bytes)

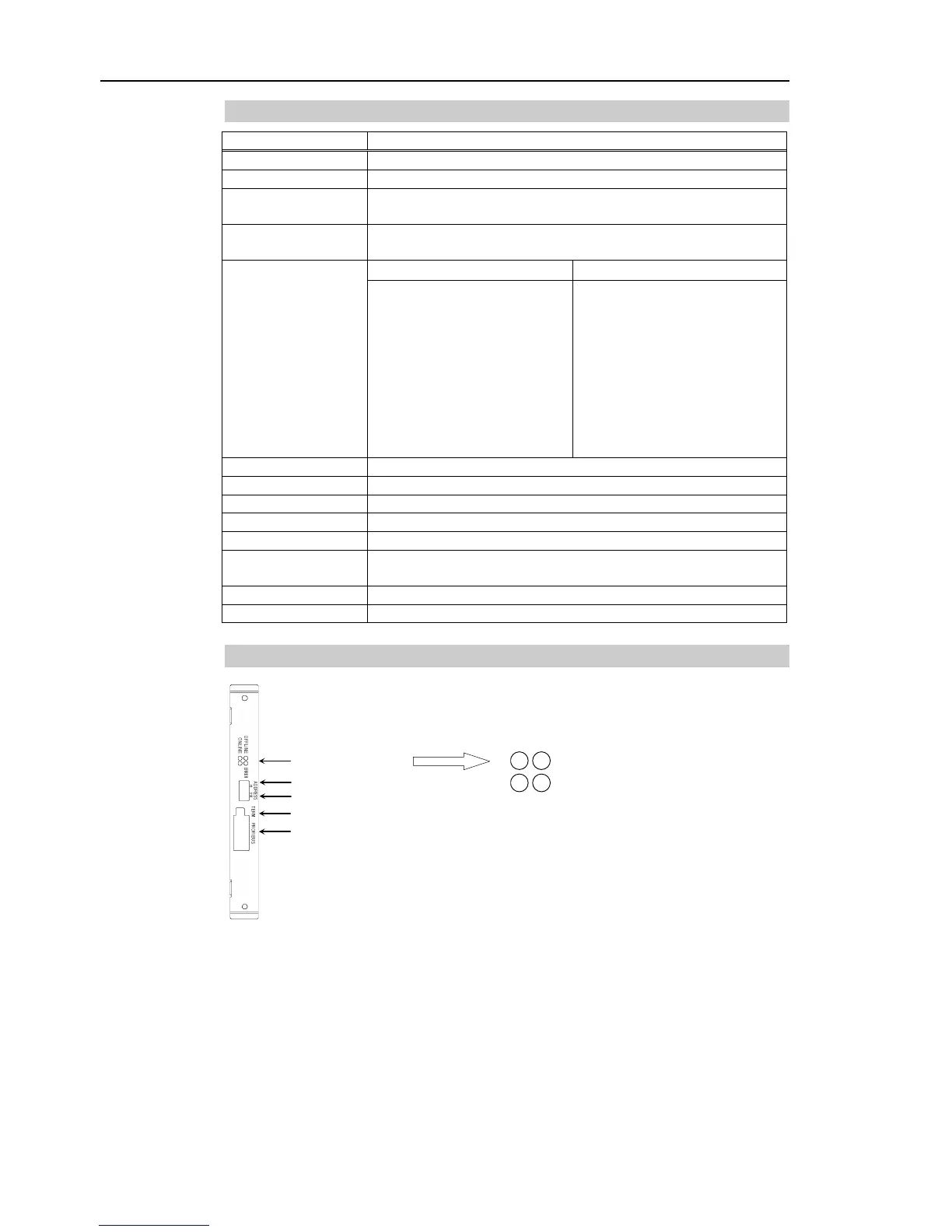

Appearance of PROFIBUS-DP
Status Display LED
Address Configure Switch (×1)
Address Configure Switch (×10)
Terminator Switch
PROFIBUS-DP Connector
OFFLINE
ONLINE
ERROR
ONLINE LED
: Online status display
OFFLINE LED
: Offline status display
ERROR LED
: Error status display
Refer to the following table for
functions of LED.
