Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Removing the Circuit Boards 112
Confidential

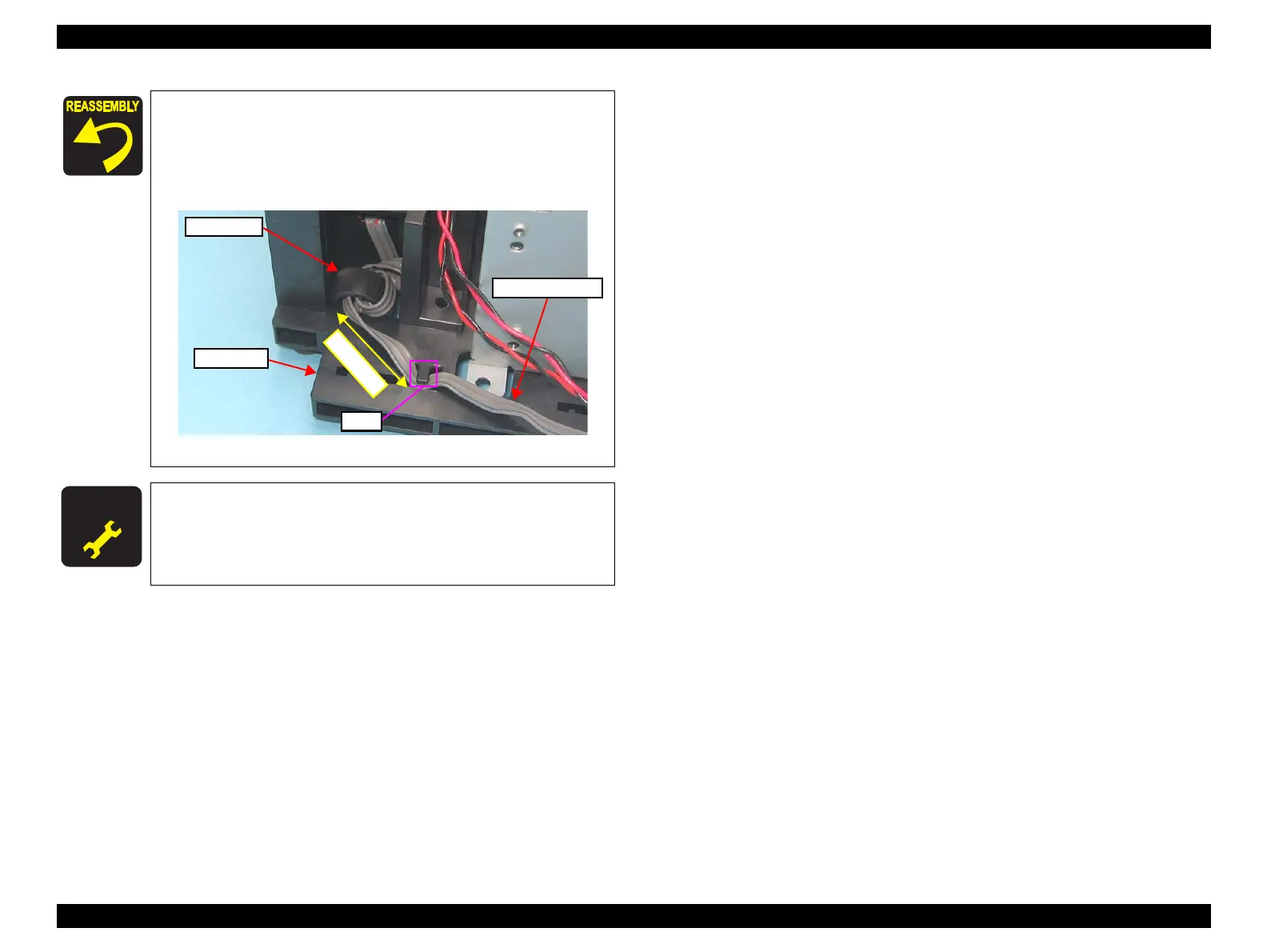

Tighten the screws in the order given in Figure 4-32.
Secure the Power Unit Cable with the hook of the Base Frame
as shown in the figure below.
Following the standard below, store the Power Unit Cable in
the hole on the Base Frame.
Figure 4-34. Routing the Power Unit Cable
A D J U S T M E N T
R E Q U I R E D
Whenever the
Power Supply Unit
is removed/replaced, the
required adjustments must be carried out.
Chapter 5 “ ADJUSTMENT” (p.161)
Hook
Power Unit Cable
Ferrite Core
Base Frame
2
5
±
1
m
m
