Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
PRODUCT DESCRIPTION Scanner Specifications 20
Confidential

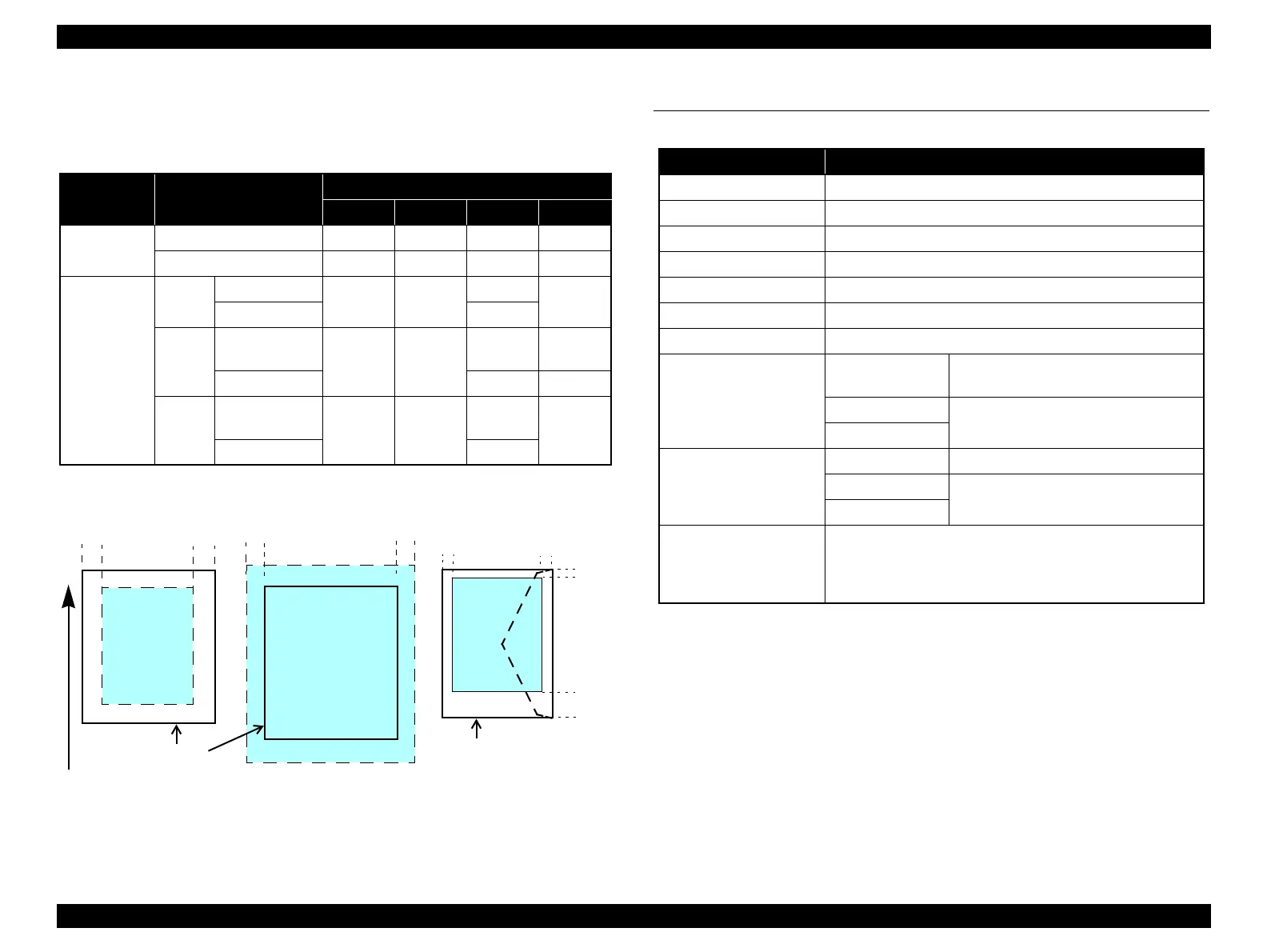

1.2.5 Printing Area
The printing area for this printer is shown below.
Note * : The margins for Borderless print are margins that bleed off the edges of paper.
Figure 1-2. Printing Area
1.3 Scanner Specifications
Note * : NX510 series only.
Table 1-15. Printing Area (Margins)
Print Mode Paper Size
Margin
Left Right Top Bottom
Standard print
Any size 3 mm 3 mm 3 mm 3 mm
Envelope 5 mm 5 mm 3 mm 20 mm
Borderless
print
*
NX510
series
4” x 6”
2.54 mm 2.54 mm
2.8 mm
3.39 mm
Others 2.96 mm
SX410
series
A4/Letter to 2L/
5” x 7”/16” x 9”
2.54 mm 2.54 mm
2.96 mm 4.02 mm
4” x 6” 2.54 mm 3.53 mm
SX210
series
A4/Letter to 2L/
5” x 7”/16” x 9”
2.54 mm 2.54 mm
2.96 mm
3.39 mm
4” x 6” 2.82 mm
Print Area
LM RM
TM
BM
BM
Cut Sheet (Standard)
Cut Sheet (Borderless)
Paper SIze
LM
RM
TM
BM
Print Area
LM RM
Print Area
Envelope
Paper Size
TM
Paper Feed Direction
Table 1-16. Basic Specifications
Item Specification
Scanner type Flatbed, color
Scanning method Moving carriage, stationary document
Home position The front right corner
Photoelectric device CIS
Light source LED
Maximum document sizes A4 or US letter
Scanning range 8.5" x 11.7" (216 mm x 297 mm)
Maximum resolution
NX510 series
Main scan: 2400 dpi
Sub scan: 2400 dpi
SX210 series
Main scan: 1200 dpi
Sub scan: 2400 dpi
SX410 series
Maximum effective pixels
NX510 series 20,400 x 28,800 pixels
SX410 series
10,200 x 14,040 pixels
SX210 series
Pixel depth
Color: 48 bit per pixel (input) and
24 bit per pixel (output).
Monochrome: 16 bit per pixel (input) and
1 bit
*
/ 8 bit per pixel (output)
