Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A

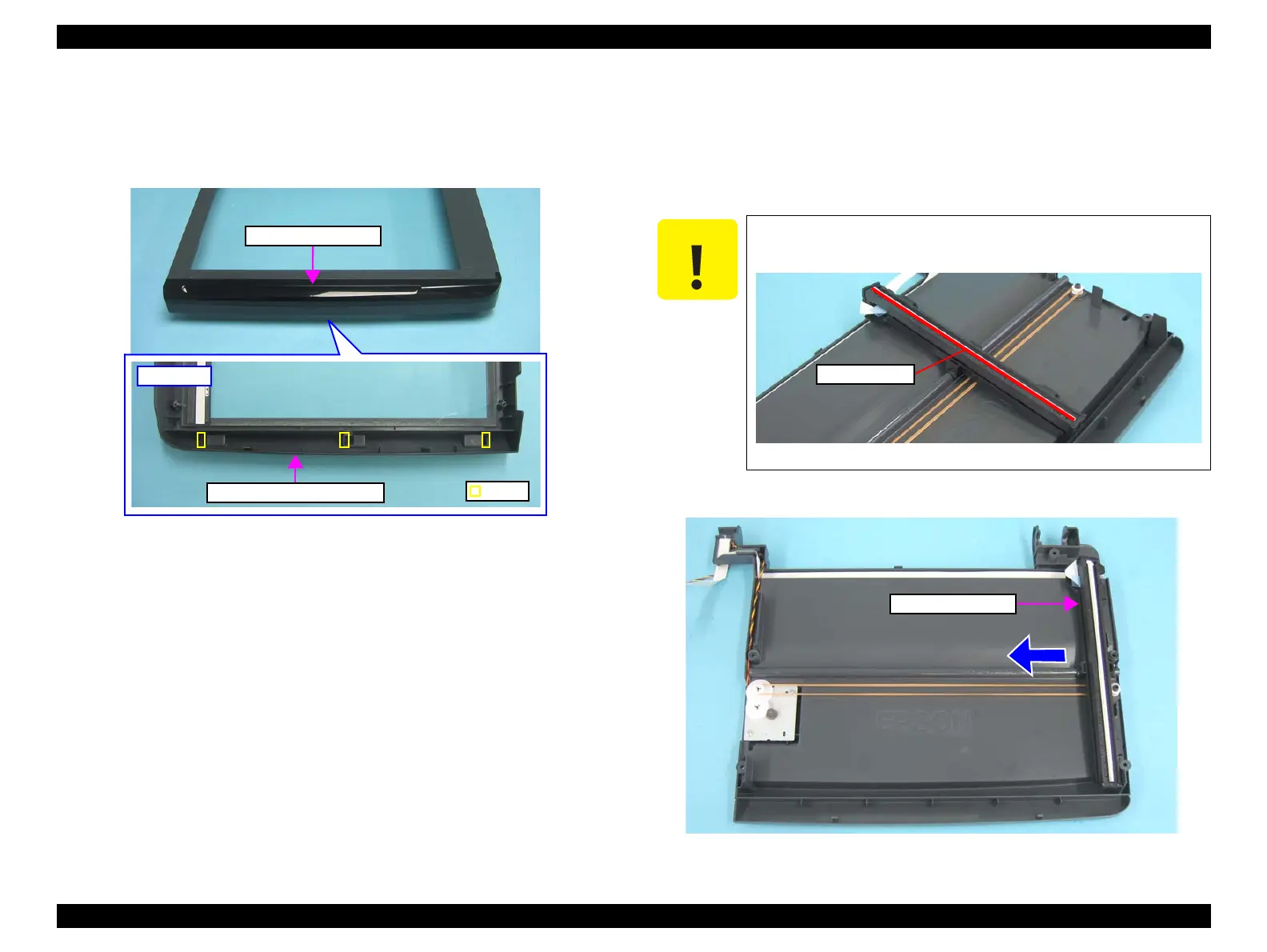

DISASSEMBLY/ASSEMBLY Disassembling the Scanner Unit 142
Confidential
 Front Scanner Housing
1. Remove the Upper Scanner Housing toward you. (p141)
2. Release the hooks at the bottom of the Upper Scanner Housing, and remove
the Front Scanner Housing.
Figure 4-116. Removing the Front Scanner Housing
4.6.2 Scanner Carriage Unit
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Upper Scanner Housing
 Removal procedure
1. Move the Scanner Carriage Unit to the center.
Figure 4-118. Moving the Scanner Carriage Unit
Bottom
Upper Scanner Housing
Hook
Front Scanner Housing
C A U T I O N
Do not scratch the Rod Lens Array when removing the Scanner
Carriage Unit.
Figure 4-117. Handling the Scanner Carriage Unit
Rod Lens Array
Scanner Carriage Unit
