Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
ADJUSTMENT Using the Adjustment Program 167
Confidential
5.2 Using the Adjustment Program
This section explains how to judge print samples using the adjustment program. See
the appropriate print sample when the printing patterns are different of each model.
Follow the instructions of the adjustment program for details of the adjustment
methods.
5.2.1 TOP Margin Adjustment
The following pattern is printed.

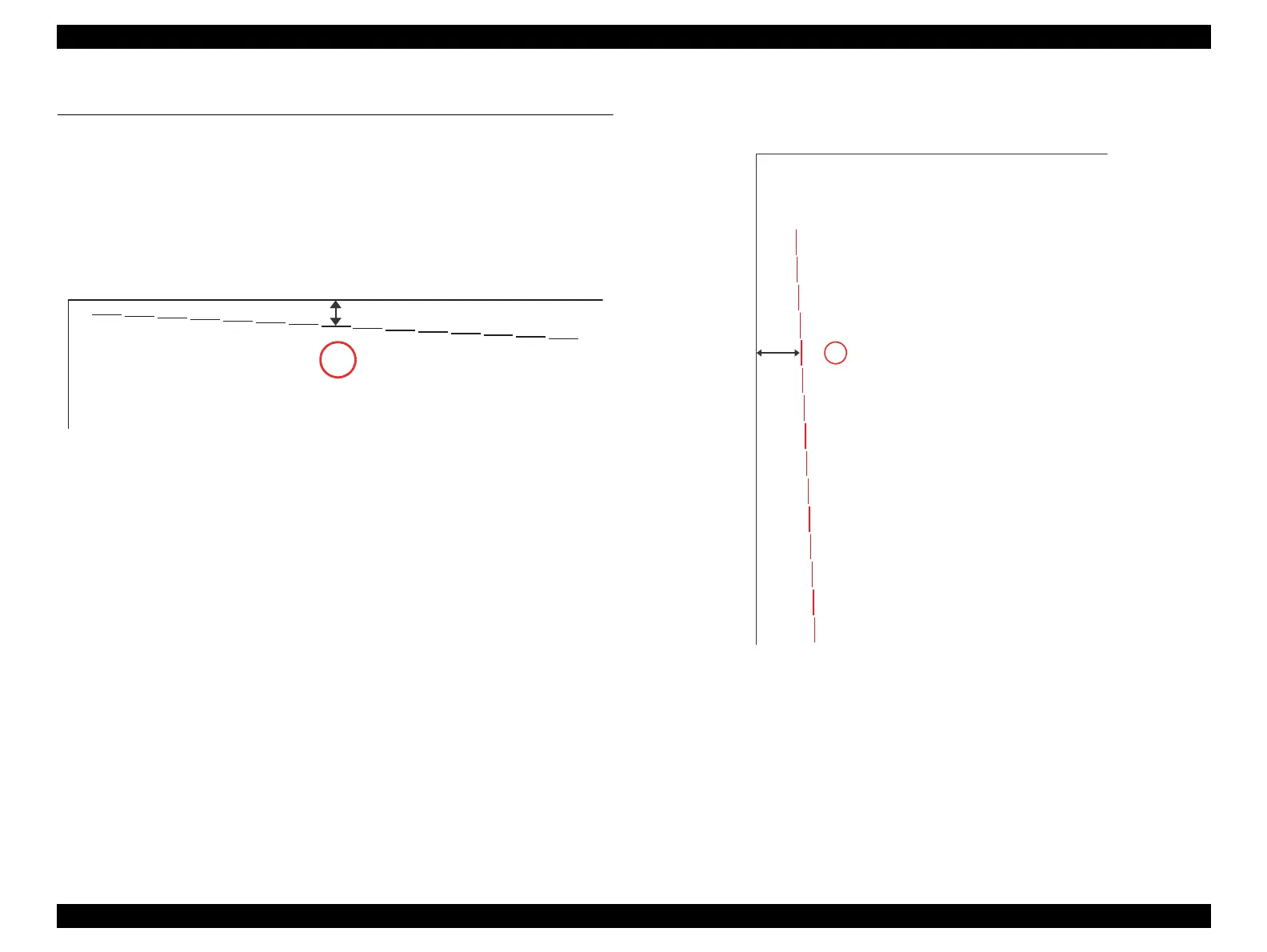

Figure 5-1. Top Margin Adjustment Printout Pattern
How to Judge
Measure the length from the top edge of the paper to the printed line. Enter the
value for the line that is exactly 5 mm away from the top edge.
5.2.2 First Dot Position Adjustment
The following pattern is printed.
Figure 5-2. First Dot Position Adjustment Printout Pattern
How to judge
Measure the length from the left edge of the paper to the printed line. Enter the
value for the line that is exactly 5 mm away from the left edge.
-7 -6-5 -4-3 -2-1 0 1 2 3 4 5 6 7
5mm
-7
-6
-5
-4
-3
-2
-1
0
1
2
3
4
5
6
7
5mm
