5.2.5 PF Adjustment
PF- FOR STANDARD PRINT AREA
 NX510 series
The following pattern is printed.

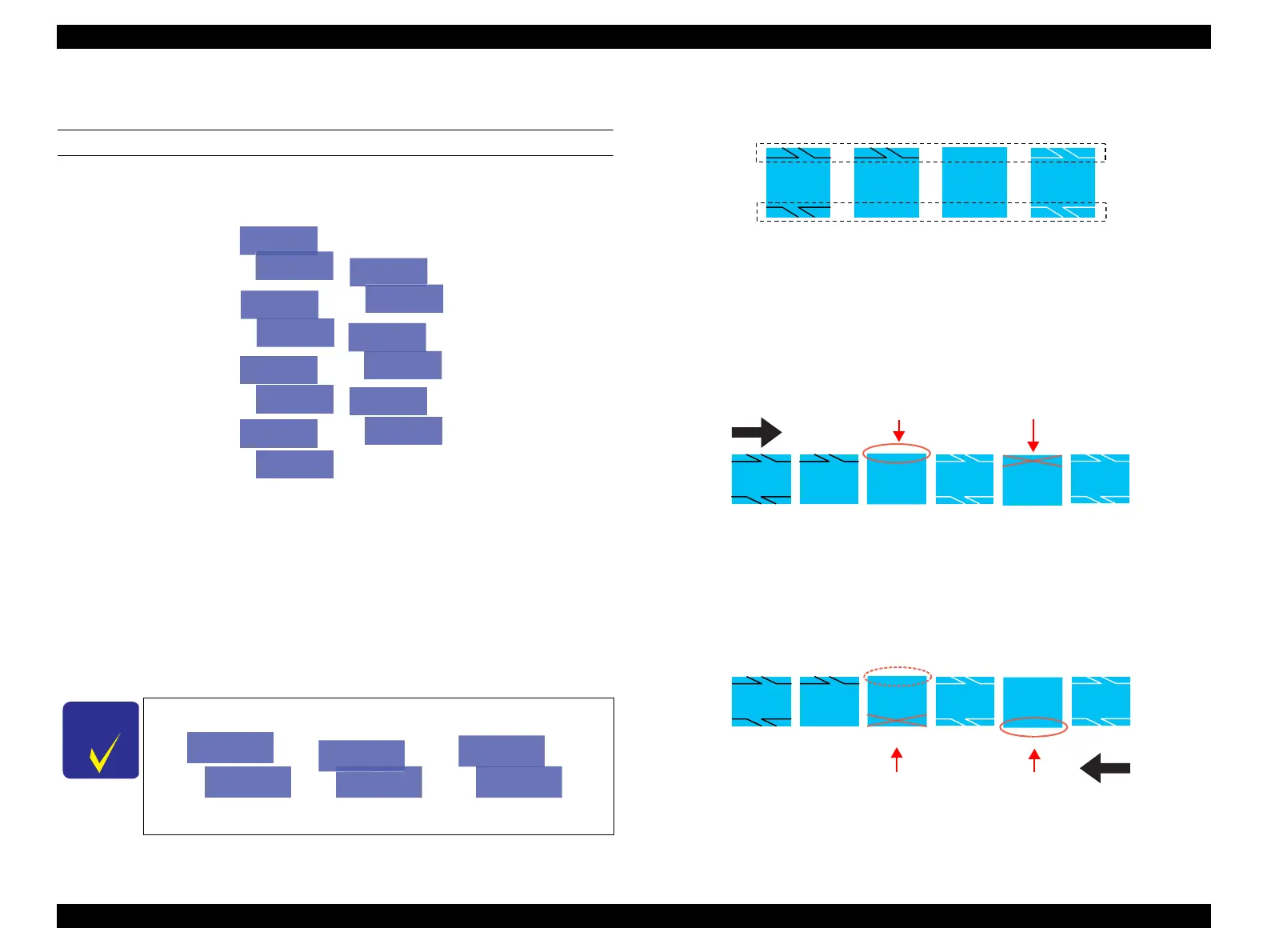

Figure 5-7. PF (standard print area) Adjustment Printout Pattern
How to Judge
Examine the printout patterns and enter the value for the pattern with no overlap
and gap between the two rectangles.
Additional Information
When overlap and gap are observed in the all patterns, enter the value for the best
one, and print the adjustment pattern again.
 SX410/SX210 series
The following pattern is printed.
Figure 5-8. PF (standard print area) Adjustment Printout Pattern
How to Judge
1. Examine the printed patches from the left to the right, and select a value for
the patch with least white oblique lines on its upper (top) area. If two or more
patches are found as the best patch, be sure to select a value for the left most
one.
Figure 5-9. PF Adjustment (1)
2. Examine the printed patches from the right to the left, and select a value for
the patch with least white lines on its lower (bottom) area. If two or more
patches are found as the best patch, be sure to select a value for the right most
one. If it is difficult to judge, compare the most likely patch with the one on
the left.
Figure 5-10. PF Adjustment (2)
3. Input the selected value for each of the top and bottom in the program, and
print a PF adjustment check pattern.
C H E C K
P O I N T
Example for judgement
-5
-4
-3
-2
-1
0
1
NG OKNG
1 2 3 4
Top
Bottom
6
23 4 5
1
Select this Do not select this
6
23 4 51
5
Do not select this Select this
