4.5.19 PF Roller
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing/Main Board Unit/Left Frame/Front Frame/Right Frame/CR
Motor/CR Scale/Hopper/Main Frame Assy/ASF Unit/Ink System Unit/Star Wheel
Holder Assy/EJ Roller/Front Paper Guide/PF Encoder Sensor/PF Scale
 Removal procedure
1. Remove the Spur Gear 13.5 from the PF Roller with a flathead precision
screwdriver or a similar tool.

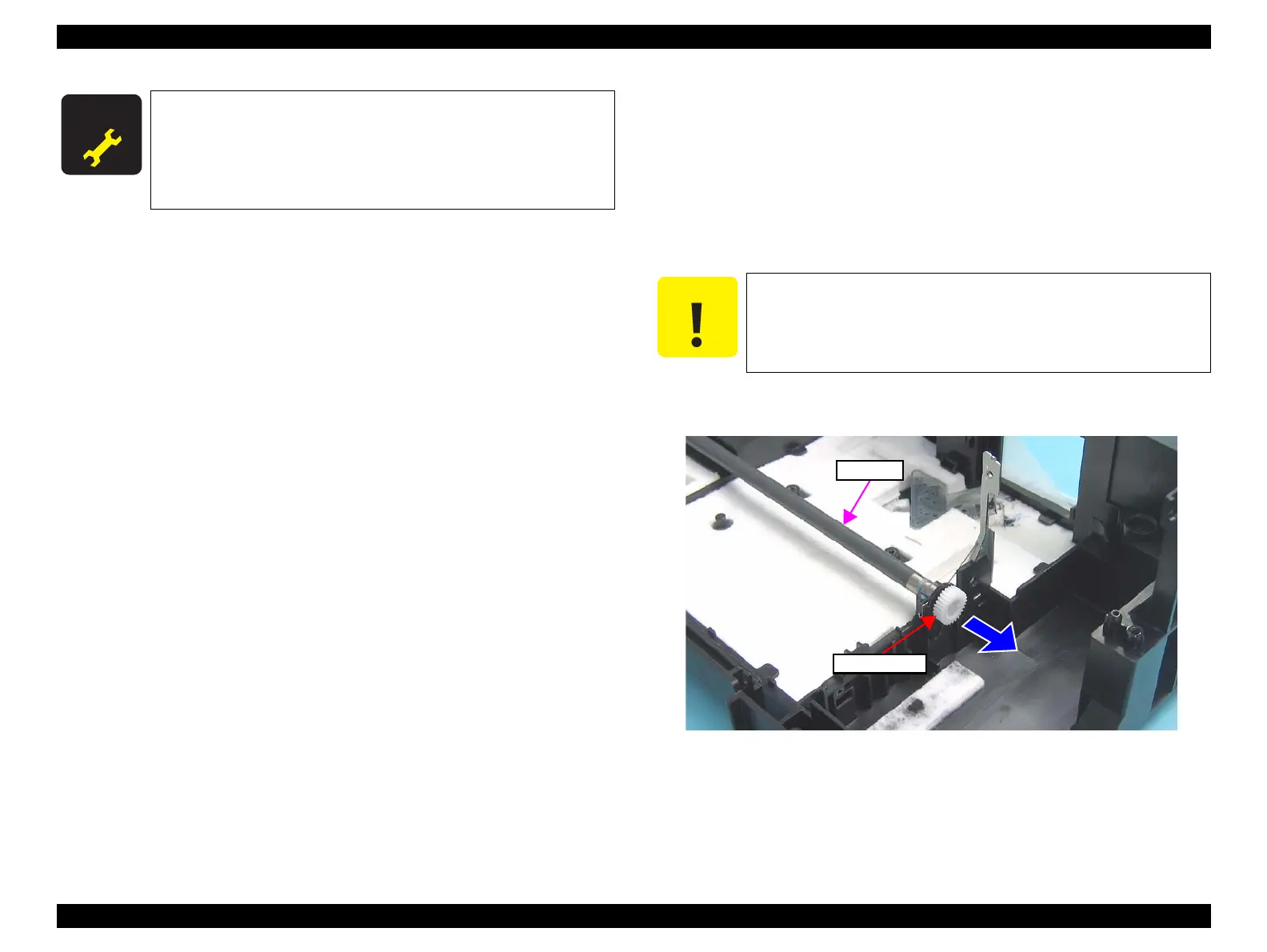

Figure 4-106. Removing the PF Roller (1)
A D J U S T M E N T
R E Q U I R E D
 Whenever the Front Paper Guide, is removed/replaced, the
required adjustments must be carried out.
• Chapter 5 “ ADJUSTMENT” (p.161)
 After replacing the Front Paper Guide, be sure to perform the
required lubrication.
• Chapter 6 “ MAINTENANCE” (p.175)
C A U T I O N
When removing the PF Roller, be cautious not to touch or damage
the coated surface of the PF Roller.
PF Roller
Spur Gear 13.5
