Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Differences in Disassembling/Reassembling SX210 series 155
Confidential
Disassembling the Main Board Unit
For the disassembling/reassembling procedures of the Main Board Unit of SX210
series, see
Disassembling the Main Board Unit (p147) because they are the same as
SX410 series.
4.8.2 Panel Unit/LCD Unit (SX210 series)
Parts/Components need to be removed in advance: None
Removal procedure
1. Open the Scanner Unit.
2. Lifting the front of the Panel Unit, and release the tabs of it.
3. Slide the Panel Unit in the direction of the arrow, and release the hooks of it
from the Upper Housing.

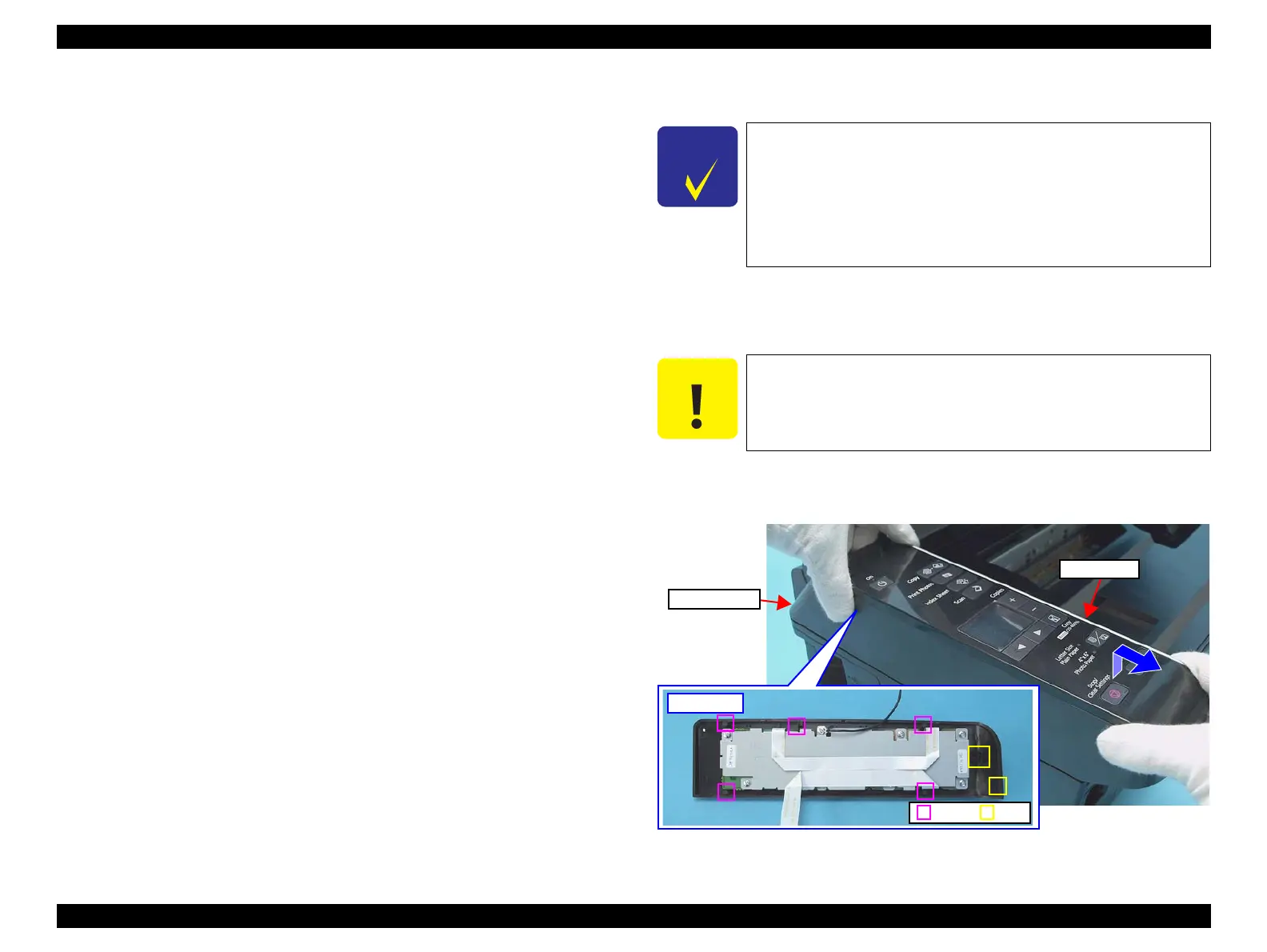

Figure 4-146. Removing the Panel Unit (1)
C H E C K
P O I N T
See the following because the disassembling/reassembling
procedures of the Panel Unit/LCD Unit for NX510/SX410 series
differ from those of SX210 series.
NX510 series:
4.4.2 Panel Unit/LCD Unit (p108)
SX410 series:
4.7.2 Panel Unit/LCD Unit (SX410 series) (p148)
C A U T I O N
Do not pull away the Panel Unit too far, because the Panel FFC
and the grounding wire are connected to the backside of the Panel
Unit.
Panel Unit
Hook Tab
Backside
Upper Housing
