Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Differences in Disassembling/Reassembling SX410 series 147
Confidential
3. Remove the screw (x1) that secures the Main Board Unit, and remove the
Main Board Unit.

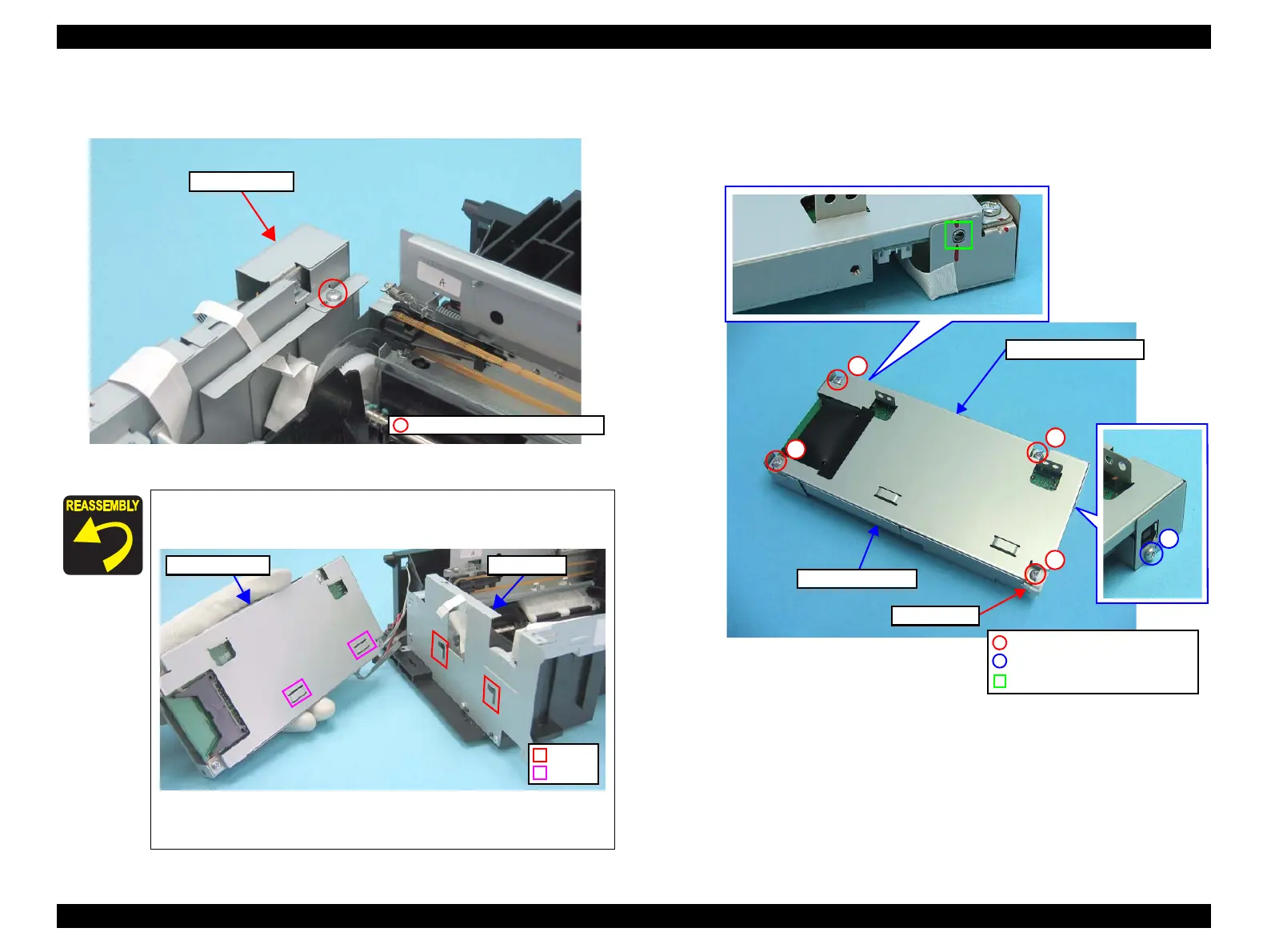

Figure 4-128. Removing the Main Board Unit (2)
 Disassembling the Main Board Unit
1. Remove the Main Board Unit. (p146)
2. Peel off the acetate tape.
3. Remove the screws (x5) and remove the MB Lower Shield Plate.
Figure 4-130. Removing the Main Board (1)
 When installing the Main Board Unit, insert its hooks (x2)
into the cutouts (x2) of the Left Frame.
Figure 4-129. Installing the Main Board Unit
 Tighten the screws in the order given in Figure 4-126.
C.B.S. 3x6, F/Zn-3C (4±0.5kgfcm)
Main Board Unit
Main Board Unit
Left Frame
Cutout
Hook
2
4
1
3
5
Acetate Tape
MB Lower Shield Plate
Upper Shield Plate
C.P. 3x6, F/Zn-3C (2.7±1kgfcm)
C.B.S. 3x6, F/Zn-3C (4±0.5kgfcm)
Positioning Hole and Guide Pin
