Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
PRODUCT DESCRIPTION General Specifications 21
Confidential

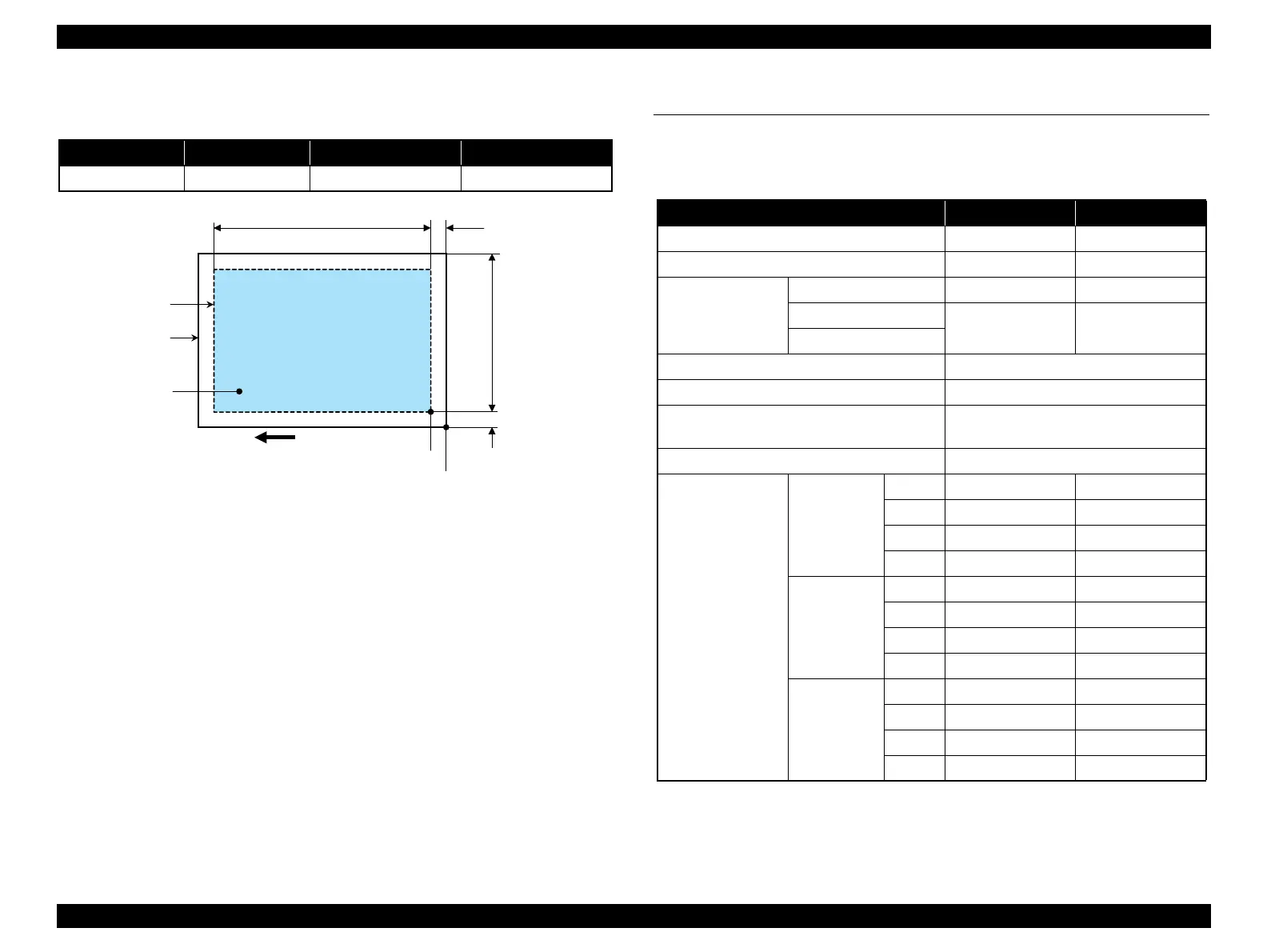

1.3.1 Scanning Range
Figure 1-3. Scanning Range
1.4 General Specifications
1.4.1 Electrical Specifications
Note* : Printing pattern: ISO/IEC24712
Note : When no operation is made with the control panel for more than 13 minutes, the panel
goes to the power save mode within two minutes.
Table 1-17. Scanning Range
RL (read length) RW (read width) OLM (left margin) OTM (top margin)
216 mm 297 mm 1.5 mm 1.5 mm
a
RW
RL
OTM
OLM
Scanning starting position
Scan area
Scan bed
Original
(facedown)
Home position
Table 1-18. Primary Power Specifications
Item 100-120 V model 220-240 V model
Rated power supply voltage 100 to 120 VAC 220 to 240 VAC
Input voltage range 90 to 132 VAC 198 to 264 VAC
Rated current
(Max. rated current)
NX510 series 0.6 A (1.3 A) 0.3 A (0.6 A)
SX410 series
0.6 A (1.0 A) 0.3 A (0.5 A)
SX210 series
Rated frequency 50 to 60 Hz
Input frequency range 49.5 to 60.5 Hz
Insulation resistance
(Primary - Secondary, 10 mA at 25
o
C)
3,000 V (for one minute)
Energy conservation International Energy Star Program compliant
Power consumption
NX510 series
Copy
*
Approx. 16 W Approx. 16 W
Ready Approx. 6.0 W Approx. 6.0 W
Sleep Approx. 3.5 W Approx. 4.0 W
Off Approx. 0.2 W Approx. 0.3 W
SX410 series
Copy
*
Approx. 12 W Approx. 12 W
Ready Approx. 5.0 W Approx. 5.0 W
Sleep Approx. 2.5 W Approx. 3.0 W
Off Approx. 0.2 W Approx. 0.3 W
SX210 series
Copy
*
Approx. 11 W Approx. 11 W
Ready Approx. 5.0 W Approx. 5.0 W
Sleep Approx. 2.5 W Approx. 2.5 W
Off Approx. 0.2 W Approx. 0.3W
