Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Disassembling the Scanner Unit 141
Confidential
4.6 Disassembling the Scanner Unit
4.6.1 Upper/Front Scanner Housing
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit
 Removal procedure
 Upper Scanner Housing
1. Remove the screws (x6) that secure the Upper Scanner Housing, and release
the hooks (x2) inside the Lower Scanner Housing, then remove the Upper
Scanner Housing by lifting the front of it.

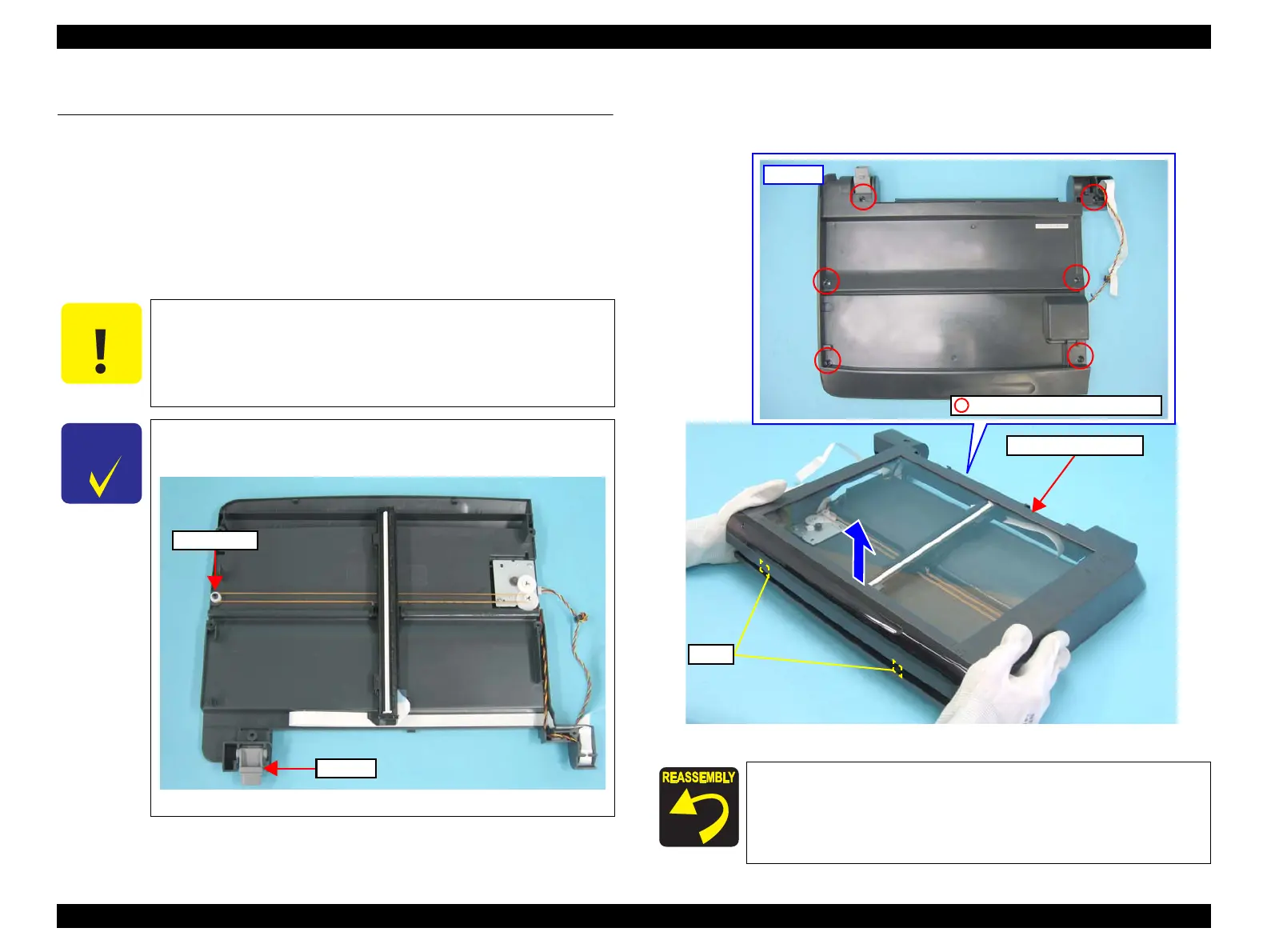

Figure 4-115. Removing the Upper Scanner Housing
C A U T I O N
 Following work should be performed in a room where there is
a little dust. A clean room or a clean bench would be
preferable.
 Do not scratch the Rod Lens Array when removing the CIS
Assy.
C H E C K
P O I N T
If the Hinge R or the Driven Pulley comes off during
disassembling, reassemble them as shown in the figure below.
Figure 4-114. Installing the Hinge R or the Driven Pulley
Hinge R
Driven Pulley
When installing the Upper Scanner Housing, attach the Hinge R
to the place as shown in
Figure 4-114.
C.B.P. 3x10, F/Zn-3C (5±1kgfcm)
Rear side
Upper Scanner Housing
Hooks
