Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
TROUBLESHOOTING Error Indications and Fault Occurrence Causes 62
Confidential
3.3.2 Troubleshooting by Error Message
The following tables provide troubleshooting procedures. Confirm the error message indicated on the LCD or the STM3 screen on the PC’s display, and verify it in the following list
and the figures at the end of this chapter for the corresponding troubleshooting remedy. If some parts need to be replaced or repaired, make sure to follow the procedure given in
Chapter 4 “Disassembly / Assembly”.

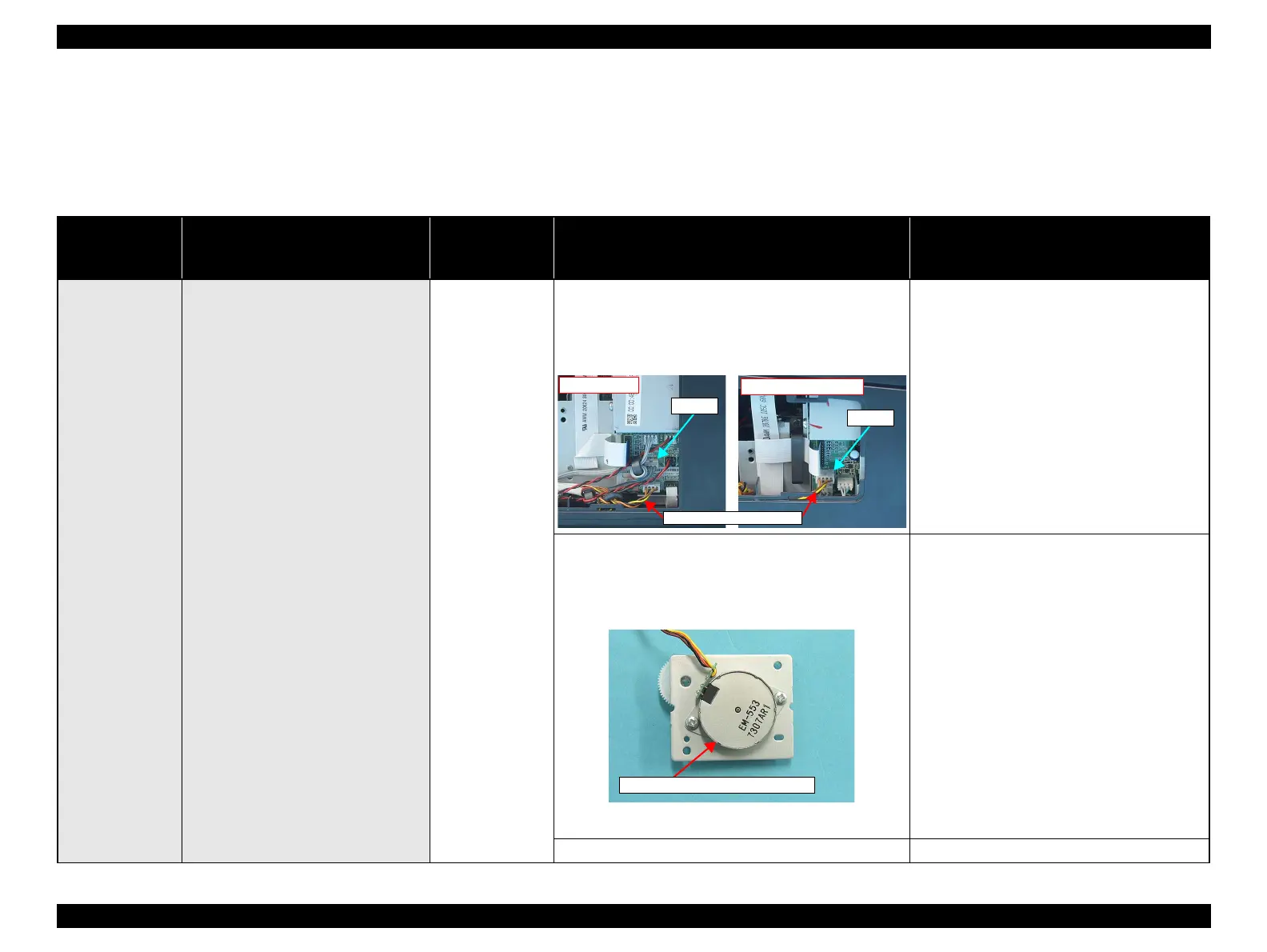

Table 3-6. Check point for Fatal error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Power on
• Anywhere
The Scanner Unit does not initialize when
the power is turned on.
Scanner Motor
1. Check if the Scanner Motor cable is connected to the
connector on the Main Board Unit shown below.
NX510 series: CN8
SX410/SX210 series: CN10
1. Connect the Scanner Motor cable to the
connector on the Main Board Unit shown
below.
NX510 series: CN8
SX410/SX210 series: CN10
2. Check the coil resistance with a tester if it matches the
following value.(refer to Table 3-1).
NX510 series: Approx. 43Ω*
1
or 38Ω*
2
SX410/SX210 series: Approx. 43Ω*
1
or 48Ω*
2
Note *1 : Manufactured by Oki Electric Industry Co., Ltd.
*2 : Manufactured by MITSUMI ELECTRIC CO., LTD.
2. Replace the Scanner Motor with a new one.
3. Check if the Scanner Motor Connector Cable is damaged. 3. Replace the Scanner Motor with a new one.
Scanner Motor Connector Cable
To Next Page
