Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Differences in Disassembling/Reassembling SX410 series 152
Confidential
4.7.4 Removing the Printer Mechanism (Lower Housing)
(SX410 series)
Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot Cover
Removal procedure
1. Disconnect the Interface Connector Cable (CN3) and Panel FFC (CN12) from
the Main Board.
2. Release the Interface Connector Cable from the hook of the Main Board Unit.

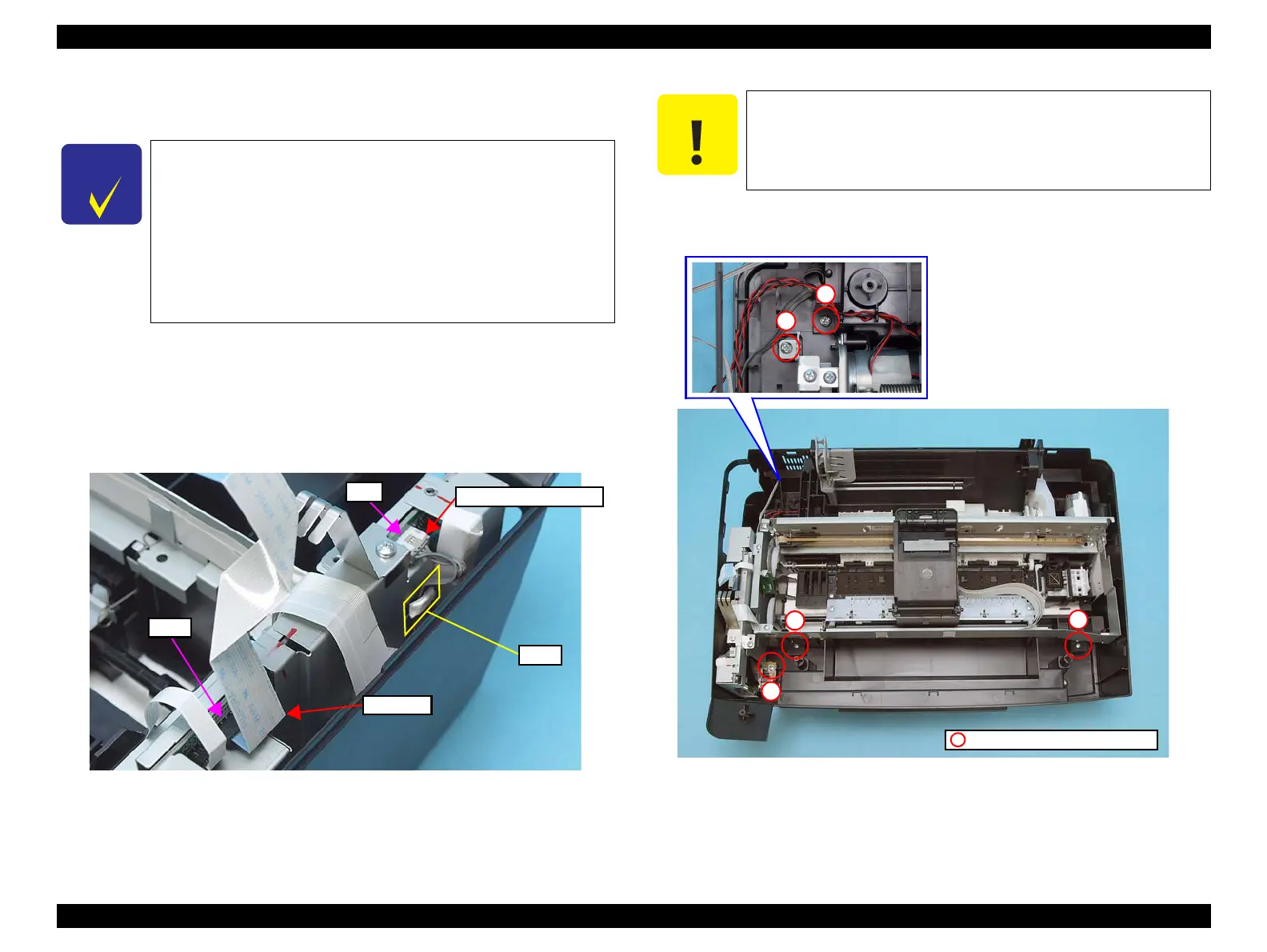

Figure 4-140. Removing the Printer Mechanism (1)
3.
Release the hook that secures the Rear Cover and remove the Rear Cover. (See
Figure 4-48
.)
4. Remove the screws (x5) that secure the Printer Mechanism, and remove the
Printer Mechanism.
Figure 4-141. Removing the Printer Mechanism (2)
C H E C K
P O I N T
See the following because the disassembling/reassembling
procedures of the Printer Mechanism for NX510/SX210 series
differ from those of
SX410 series.
NX510 series:
4.5.4 Removing the Printer Mechanism (Lower Housing)
(p117)
SX210 series:
4.8.4 Removing the Printer Mechanism (Lower Housing)
(SX210 series) (p160)
Panel FFC
CN3
Interface Connector Cable
CN12
Hook
C A U T I O N
When lifting the Printer Mechanism, be sure to hold the positions
specified in the figure below to prevent the Main Frame from
being deformed. (See
Figure 4-49.)
4
5
C.B.P. 3x10, F/Zn-3C (6±1kgfcm)
2
3
1
