Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 118
Confidential

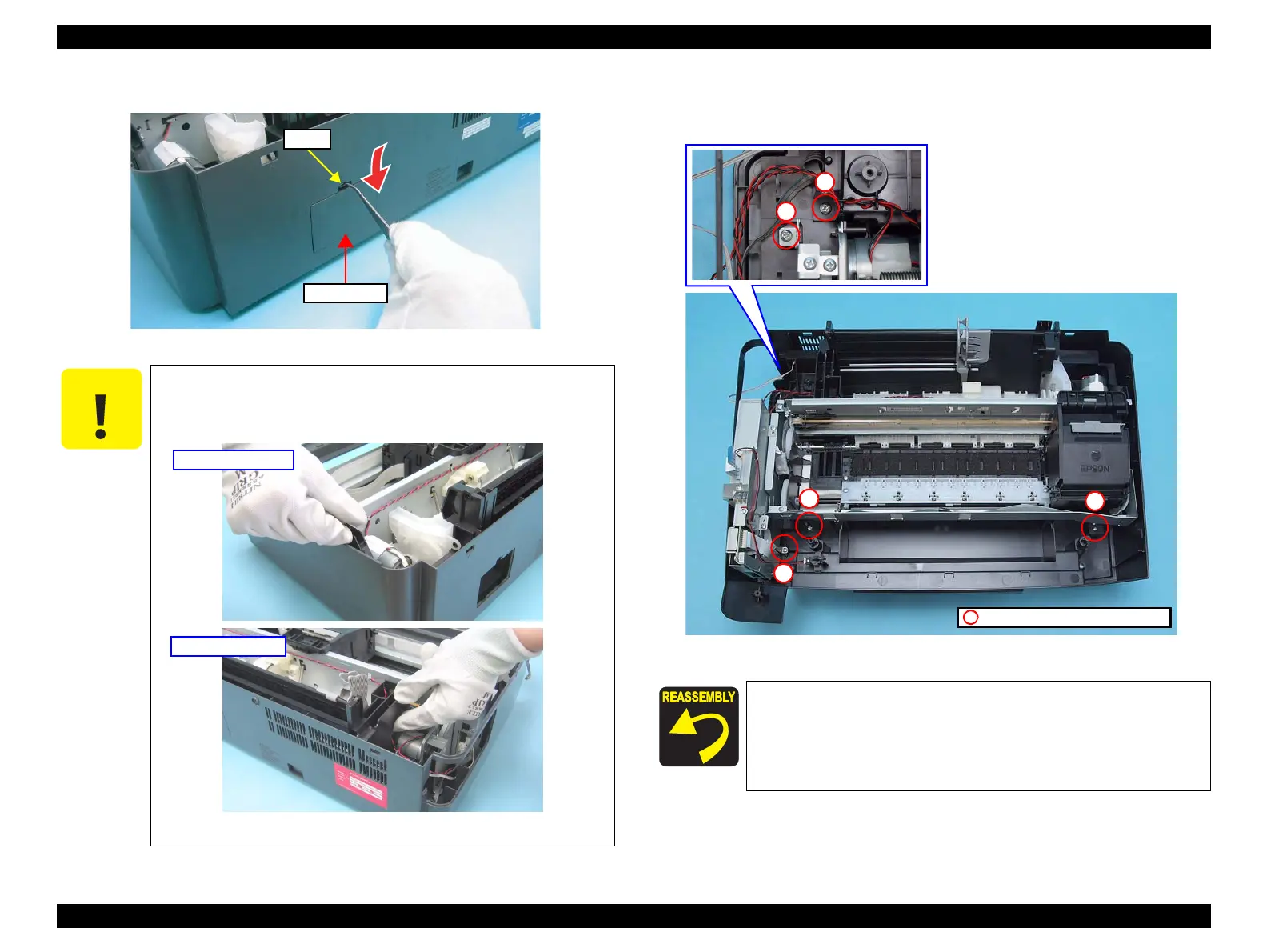

3. Release the hook that secures the Rear Cover and remove the Rear Cover.
Figure 4-48. Removing the Printer Mechanism (2)
4. Remove the screws (x5) that secure the Printer Mechanism, and remove the
Printer Mechanism.
Figure 4-50. Removing the Printer Mechanism (3)
C A U T I O N
When lifting the Printer Mechanism, be sure to hold the positions
specified in the figure below to prevent the Main Frame from
being deformed.
Figure 4-49. Printer Mechanism Handling Precaution
Rear Cover
Hook
Right Hand Position
Left Hand Position
Tighten the screws in the order given in Figure 4-50.
4
5
C.B.P. 3x10, F/Zn-3C (6±1kgfcm)
1
2
3
