Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Overview 95
Confidential
4.1.4 Procedural Differences between the Models
This chapter describes the disassembling/reassembling procedures based on NX510 series. As for some parts/components; however, the procedures differ between each model.
Refer to the following table to confirm the differences and the reference.

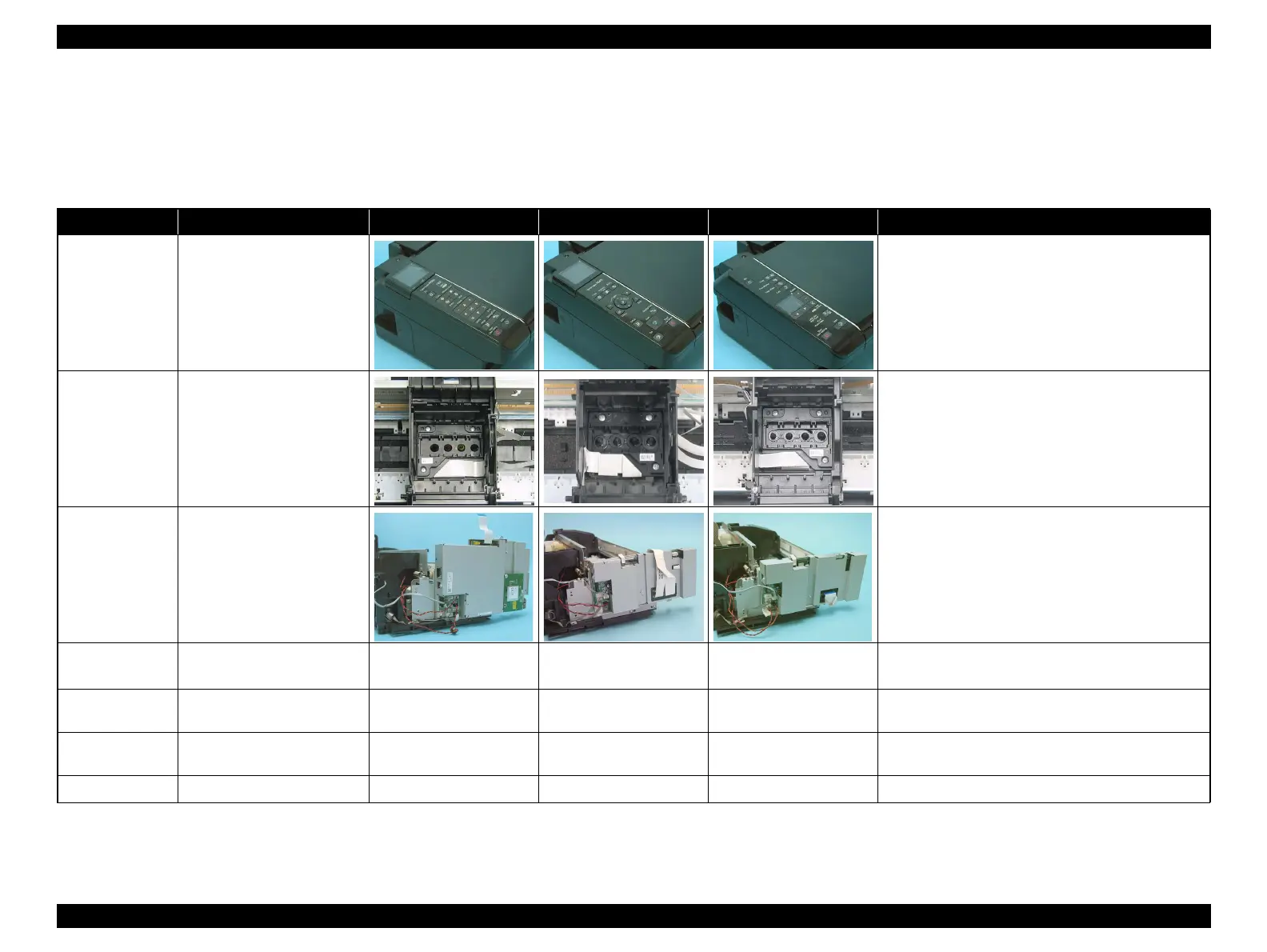

Table 4-3. Differences between Models
Item Difference NX510 series SX410 series SX210 series Reference*
Panel Unit
Disassembling/reassembling
procedures
(The shape of the Panel Units
differs.)
NX510 series
4.4.2 Panel Unit/LCD Unit (p108)
SX410 series
4.7.2 Panel Unit/LCD Unit (SX410 series) (p148)
SX210 series
4.8.2 Panel Unit/LCD Unit (SX210 series) (p155)
Printhead
Disassembling/reassembling
procedures
(The Printheads differ.)
NX510 series
4.5.1 Printhead (p113)
SX410 series
4.7.3 Printhead (SX410 series) (p150)
SX210 series
4.8.3 Printhead (SX210 series) (p158)
Main Board Unit
Disassembling/reassembling
procedures
(The shape and the connector
locations differ.)
NX510 series
4.4.1 Main Board Unit (p105)
SX410 series
4.7.1 Main Board Unit (SX410 series) (p146)
SX210 series
4.8.1 Main Board Unit (SX210 series) (p154)
Cover Open
Sensor
Existence of Cover Open
Sensor
Yes No No
4.5.4 Removing the Printer Mechanism (Lower Housing)
(p117)
Wireless LAN
Board
Existence of Wireless LAN
Board
Yes No No
4.4.1 Main Board Unit (p105)
Scanner Carriage
FFC
Existence of Ferrite core No Yes No
4.3.4 Scanner Unit/Hinge (p100)
Left Frame Existence of Ferrite core Yes No No
4.5.5 Left Frame (p119)
