OPERATING PRINCIPLES Overview 50
Confidential
2.1.2 Motors & Sensors
The printer mechanism of this product is equipped with the following printheads,
motors and sensors.
Note " * " : For the details of each printhead, see 2.1.3 "Printhead (p52) ".

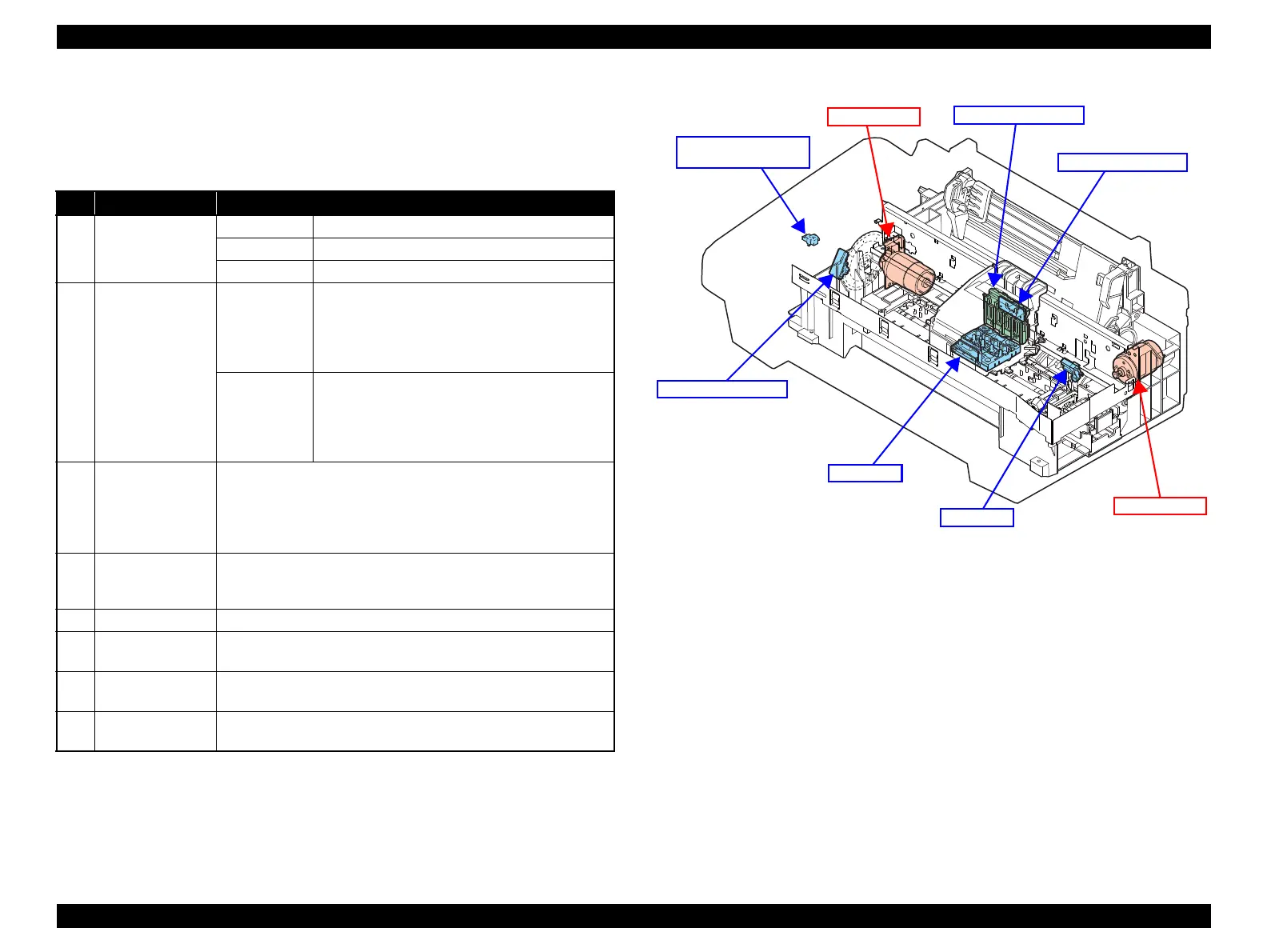

Figure 2-2. Motors & Sensors in Printer Mechanism
Table 2-1. Printer Mechanism Motors & Sensors
No. Name Specification
1 Printhead
NX510 series O6-chips Turbo II head
*
SX410 series D4-chips Turbo II head
*
SX210 series D2-chips Turbo II head
*
2 CR Motor
NX510 series
Type: DC motor
Drive voltage: 42 VDC ± 5% (DRV IC voltage)
Coil resistance: 22.7 Ω ± 10%
Inductance: 15.9 mH (1 KHz)
Drive method: PWM, constant-current chopping
SX410/
SX210 series
Type: DC motor
Drive voltage: 42 VDC ± 5% (DRV IC voltage)
Coil resistance: 28.8 Ω ± 10%
Inductance: 20.1 mH (1 KHz)
Drive method: PWM, constant-current chopping
3 PF Motor
Type: DC motor
Drive voltage: 42 VDC ± 5% (DRV IC voltage)
Coil resistance: 21.2 Ω ± 10%
Inductance: 17.2 mH (1 kHz)
Drive method: PWM, constant-current chopping
4 PE Sensor
Purpose : Detection of paper top and bottom edge, for control to set
paper at the print start position
Type: Photo interrupter
5 CR Contact Module CSIC board
6 CR Encoder Sensor
Type: Photo interrupter
Resolution: 180 pulse/inch
7 PF Encoder Sensor
Type: Photo interrupter
Resolution: 180 pulse/inch
8
Cover Open Sensor
(NX510 series only)
Purpose: To detect the cover’s (scanner unit) open/close status
Type: Mechanical contact point
Printhead
PF Encoder Sensor
Cover Open Sensor
(NX510 series only)
CR Motor
CR Encoder Sensor
CR Contact Module
PF Motor
PE Sensor
