Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Removing the Housing 103
Confidential
4.3.5 Upper Housing/Card Slot Cover
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit
 Removal procedure
 Upper Housing
1. Remove the screws (x6) that secure the Upper Housing.
2. Release the hooks (x5) that secure the Upper Housing and remove the Upper
Housing.

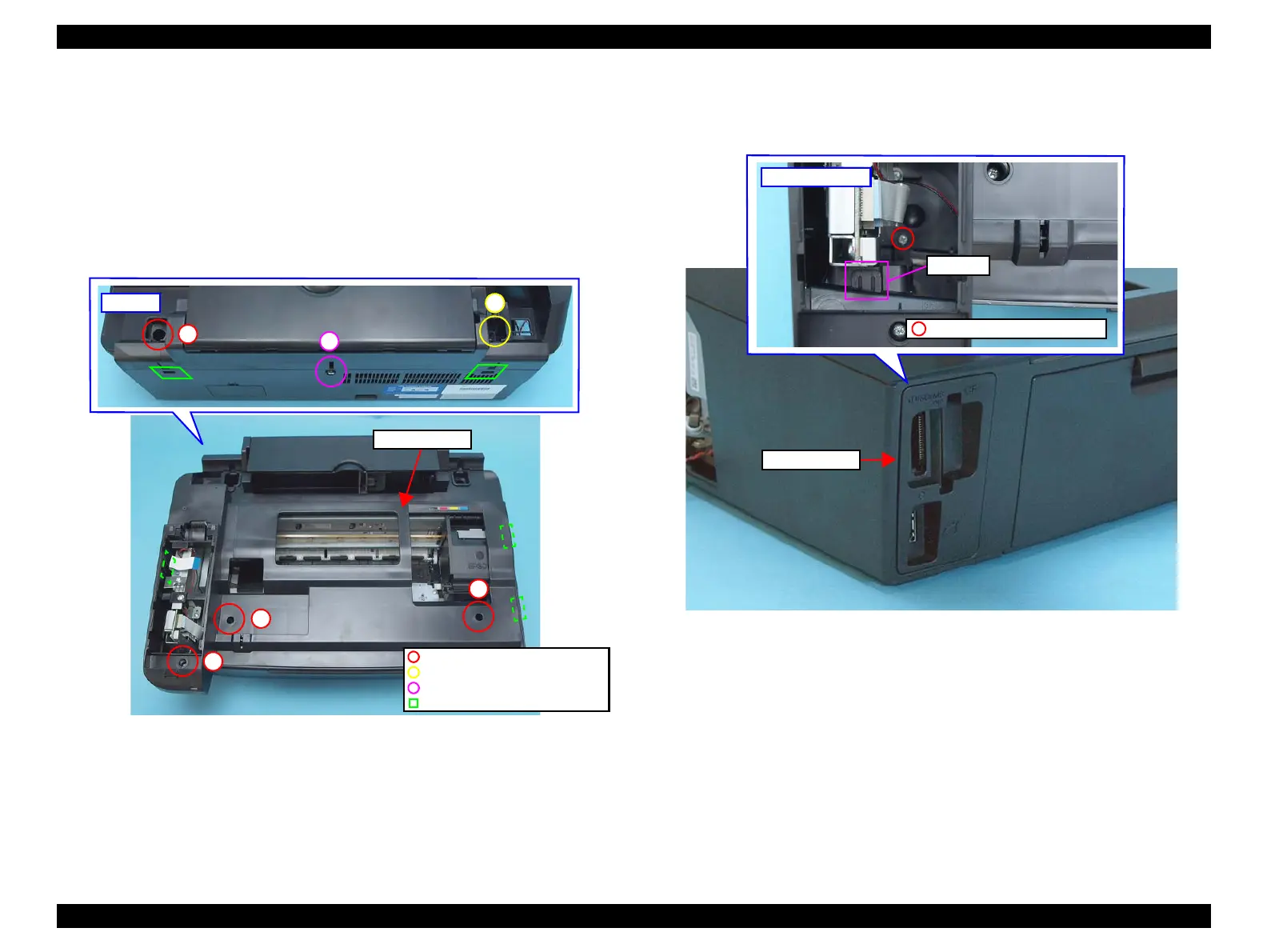

Figure 4-13. Removing the Upper Housing
 Card Slot Cover
1. Remove the screw (x1) that secures the Card Slot Cover.
2. Release the hook (x1) of the Card Slot Cover and remove the Card Slot Cover.
Figure 4-14. Removing the Card Slot Cover
Rear Side
5
1
6
C.B.P. 3x10, F/Zn-3C (6±1kgfcm)
C.B.P. 3x12, F/Zn-3C (6±1kgfcm)
C.B.P. 3x8, F/Zn-3C (6±1kgfcm)
2
3
4
Upper Housing
Hook
Inside of Housing
Hook
C.B.P. 3x8, F/Zn-3C (6±1kgfcm)
Card Slot Cover
