ADJUSTMENT Using the Adjustment Program 171
Confidential
PF- FOR BOTTOM MARGIN AREA
The following pattern is printed.

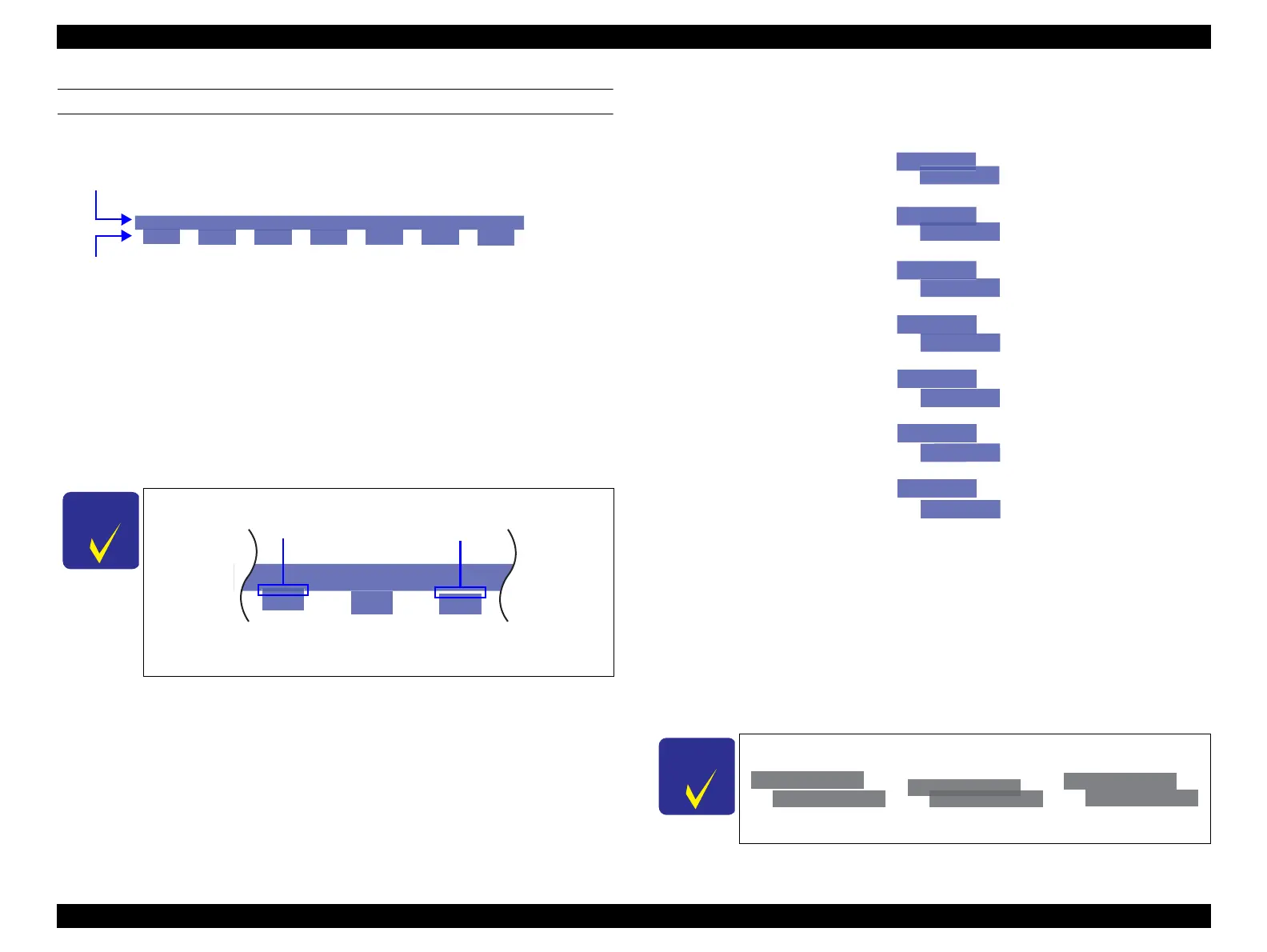

Figure 5-11. PF (bottom margin area) Adjustment Printout Pattern
How to Judge
Examine the printout patterns, and enter the value for the pattern with no overlap
and gap between the upper and lower ones.
Additional Information
When overlap and gap are observed in the all patterns, enter the value for the best
one, and print the adjustment pattern again.
5.2.6 PF Band Adjustment
The following pattern is printed.
Figure 5-12. PF Band Adjustment Printout Pattern
How to Judge
Examine the printout patterns and enter the value for the pattern with no overlap
and gap between the two rectangles.
Additional Information
When overlap and gap are observed in the all patterns, enter the value for the best
one, and print the adjustment pattern again.
C H E C K
P O I N T
Example for judgement
34 56 782
Upper pattern
Lower pattern
OK NGNG
Gap
Overlap
C H E C K
P O I N T
Example for judgement
-8
-7
-6
-5
-4
-3
-2
NG NG OK
