DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 117
Confidential
4.5.4 Removing the Printer Mechanism (Lower Housing)
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot Cover
 Removal procedure
1. Release the Cover Open Sensor cable from the hooks (x2) on the Main Board
Unit.
2. Disconnect the Panel FFC (CN5) and the Cover Open Sensor cable (CN16)
from the Main Board Unit.

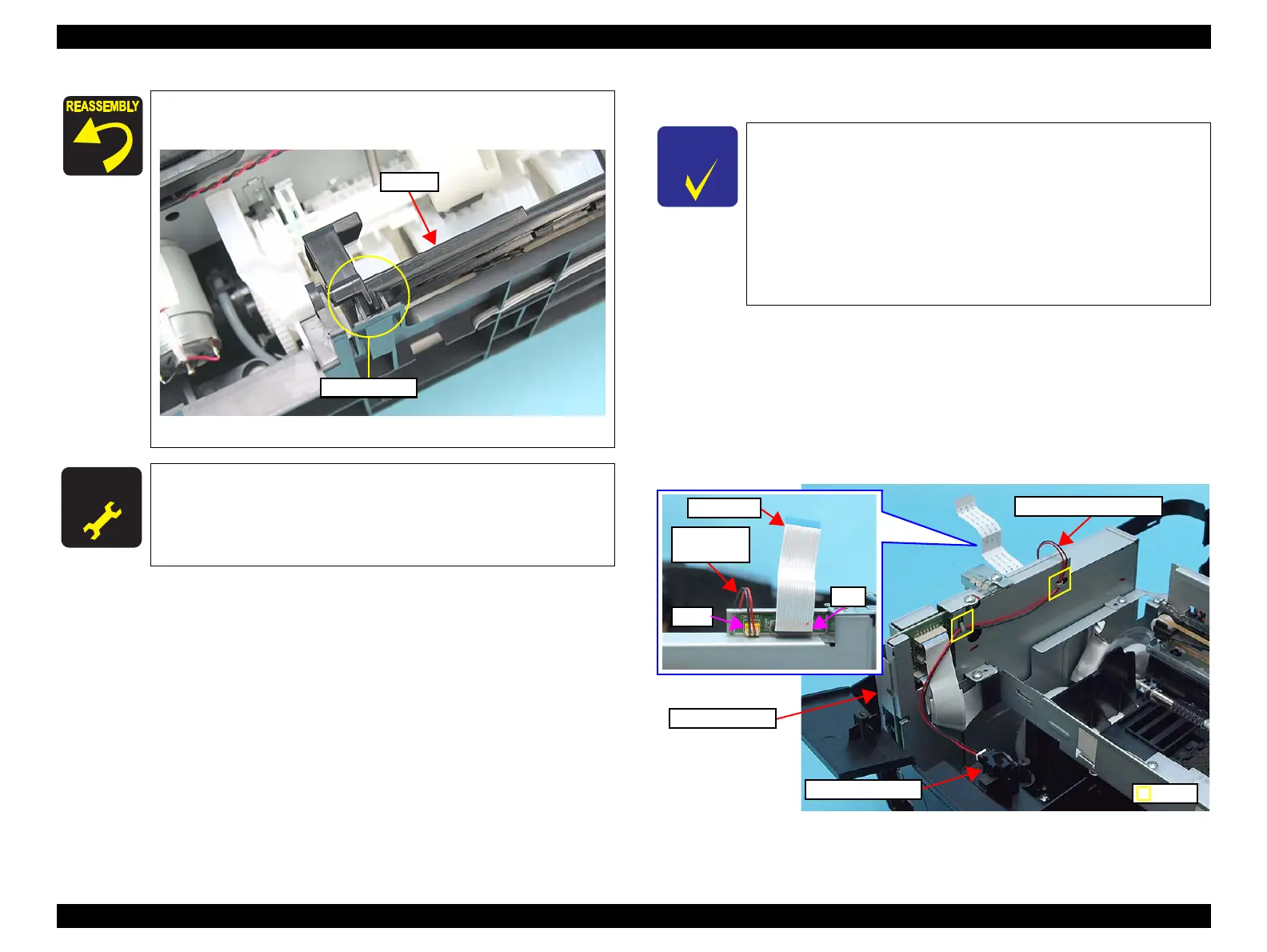

Figure 4-47. Removing the Printer Mechanism (1)
When installing the Hopper, be sure to engage the rib of the
Hopper with the guide groove of the Base Frame.
Figure 4-46. Installing the Hopper
A D J U S T M E N T
R E Q U I R E D
Whenever the Hopper is removed/replaced, the required
adjustments must be carried out.
• Chapter 5 “ ADJUSTMENT” (p.161)
Hopper
Rib and Groove
C H E C K
P O I N T
See the following because the disassembling/reassembling
procedures of the Printer Mechanism for SX410/SX210 series
differ from those of NX510 series.
 SX410 series:
“ 4.7.4 Removing the Printer Mechanism (Lower Housing)
(SX410 series) ” (p152)
 SX210 series:
“ 4.8.4 Removing the Printer Mechanism (Lower Housing)
(SX210 series) ” (p160)
CN5
CN16
Cover Open
Sensor cable
Panel FFC
Cover Open Sensor cable
Cover Open Sensor
Hook
Main Board Unit
