Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Differences in Disassembling/Reassembling SX410 series 151
Confidential

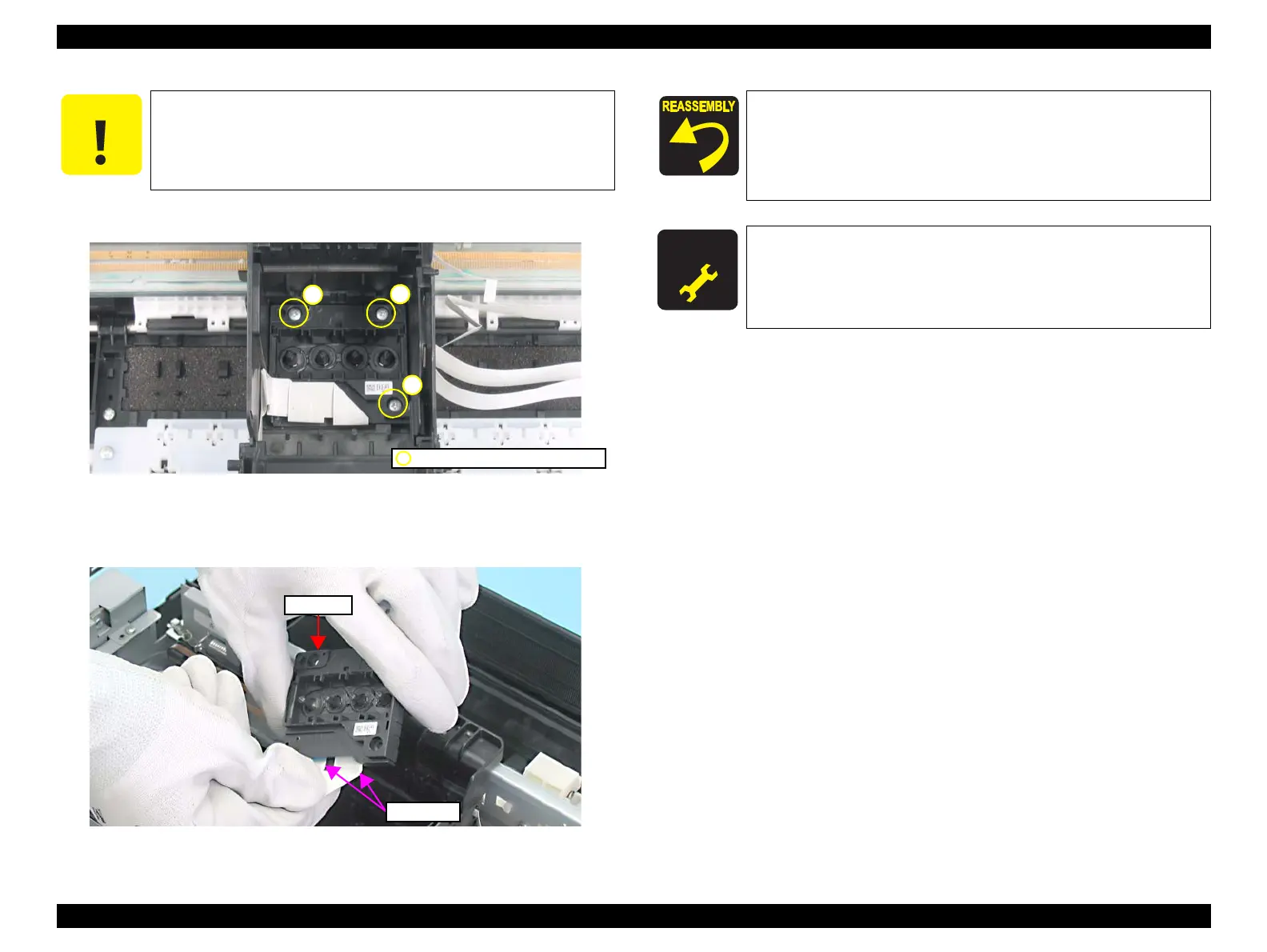

3. Remove the screws (x3) that secure the Printhead, and lift the Printhead with
longnose pliers.
Figure 4-138. Removing the Printhead (1)
4. Disconnect the Head FFC from the connectors (x2) of the Printhead, and
remove the Printhead.
Figure 4-139. Removing the Printhead (2)
C A U T I O N
Do not touch or damage the nozzles or the ink supply needles of the
Printhead.
C.B.S. 2.5x8, F/Zn-3C (3±1kgfcm)
1
2
3
Printhead
Head FFC
 Tighten the screws in the order given in Figure 4-138.
 Insert the Holder Board Assy vertically into the CR Unit so as
not to put the Holder Board Assy on the rib of the Printhead.
A D J U S T M E N T
R E Q U I R E D
Whenever the Printhead is removed/replaced, the required
adjustments must be carried out.
• Chapter 5 “ ADJUSTMENT” (p.161)
