DISASSEMBLY/ASSEMBLY Disassembling the Scanner Unit 143
Confidential
2. Release the Pulley from the Lower Scanner Housing, and release the Scanner
Timing Belt from the Combination Gear 25.2, 9.0553 and the Driven Pulley.

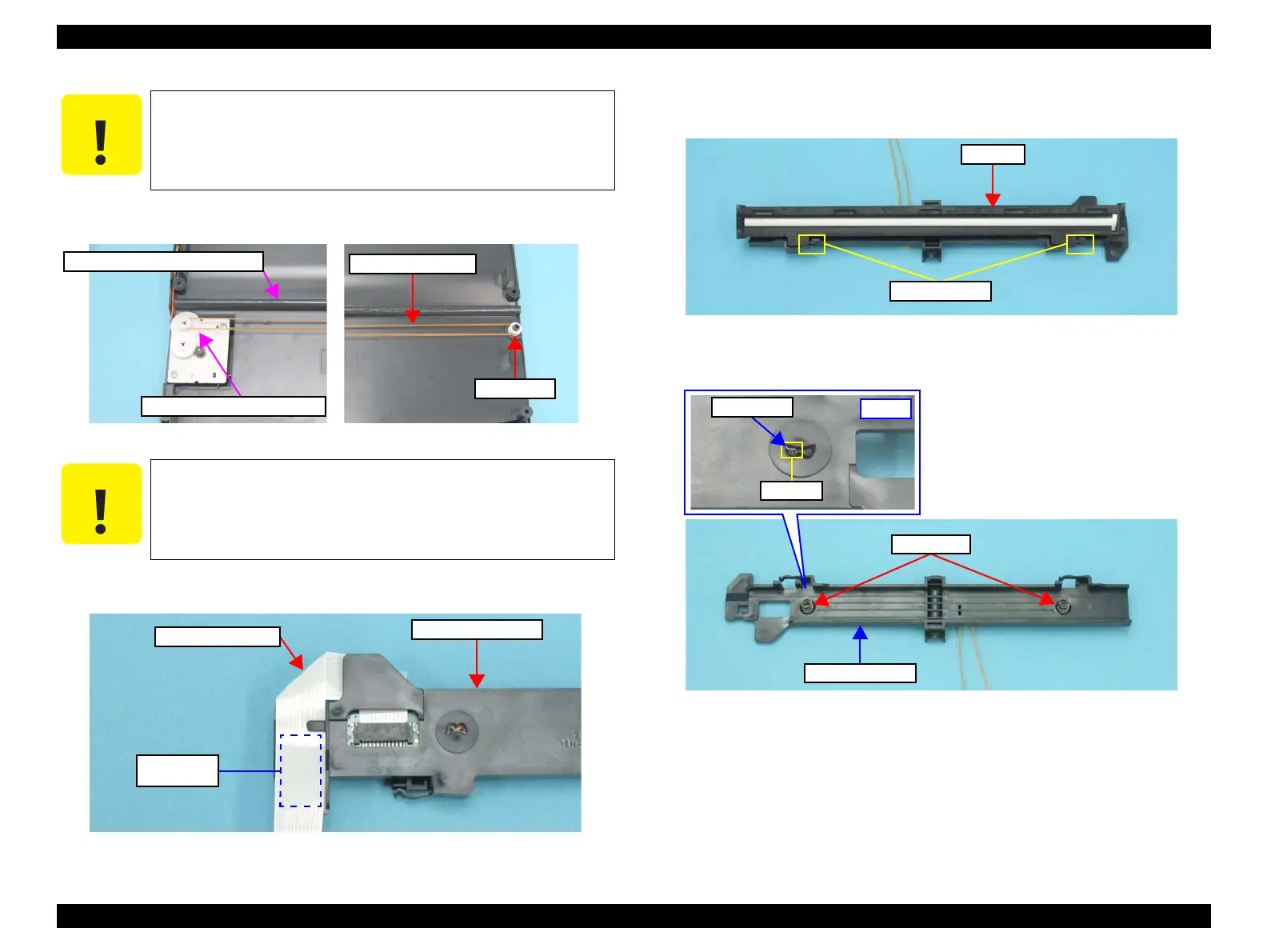

Figure 4-119. Removing the Scanner Carriage Unit (1)
3. Release the Scanner Carriage FFC from the Scanner Carriage Unit, and
remove the Scanner Carriage Unit together with the Scanner Timing Belt.
Figure 4-120. Removing the Scanner Carriage Unit (2)
4. Release the tabs (x2) from the hooks (x2) on the Scanner CR Holder and
remove the CIS Unit.
Figure 4-121. Removing the CIS Unit
5. Remove the CIS Springs (x2) from the Scanner CR Holder.
Figure 4-122. Removing the CIS Springs
C A U T I O N
Take extra care not to contaminate the Scanner Timing Belt with
grease on the rail of the Lower Scanner Housing.
C A U T I O N
Be careful about the double-sided tape fixing the Scanner Carriage
FFC.
Driven Pulley
Scanner Timing Belt
Combination Gear 25.2, 9.0553
Rail of the Lower Scanner Housing
Double-sided
Tape
Scanner Carriage FFC
Scanner Carriage Unit
Shafts and Hooks
CIS Unit
Scanner CR Holder
CIS Springs
Guide Pin
End of Spring
Bottom
