Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 126
Confidential

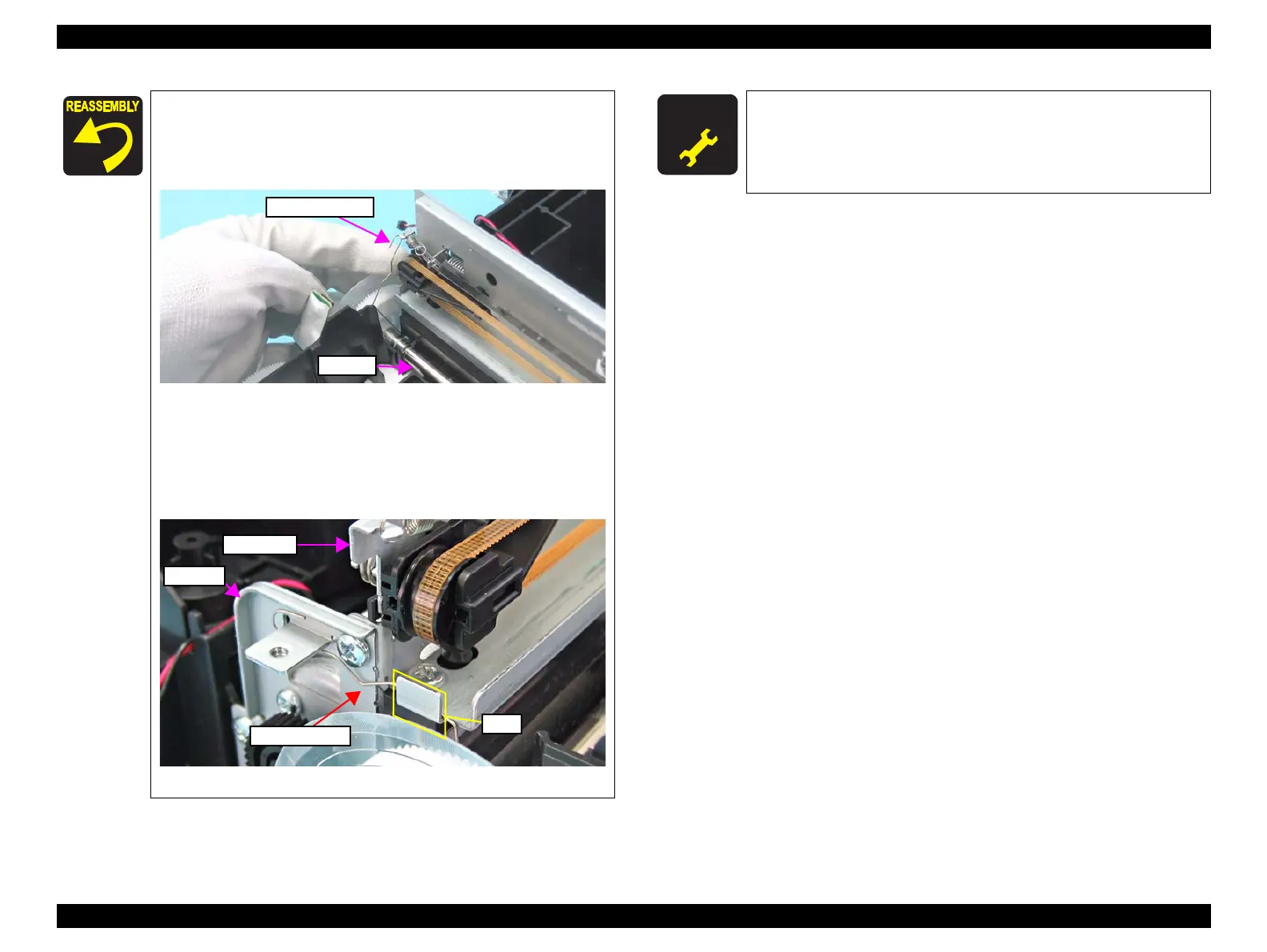

SX410/SX210 series only:
Follow the steps below to install the Grounding Spring.
1. Attach the larger U-shaped end of the Grounding Spring
to the PF Roller.
Figure 4-70. Installing the Grounding Spring (1)
2. Pass the Grounding Spring along the inner side of the
hook of the Main Frame.
3. Ground the smaller U-shaped end of the Grounding
Spring with the undersurface of the frame for PF Motor.
Figure 4-71. Installing the Grounding Spring (2)
Grounding Spring
PF Roller
Main Frame
PF Motor
Hook
Grounding Spring
A D J U S T M E N T
R E Q U I R E D
Whenever the PF Motor is removed/replaced, the required
adjustments must be carried out.
Chapter 5 “ ADJUSTMENT” (p.161)
