Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 135
Confidential
 If the Carriage lock lever comes off, reassemble it following
the steps below.
1. Attach the one end of the Extension Spring 0.8 to the
hook of the Carriage Lock Lever.
2. Attach the other end of the Extension Spring 0.8 to the
Ink System Unit.
3. Insert the dowel (x1) of the Carriage Lock Lever into the
hole (x1) of the Ink System Unit.

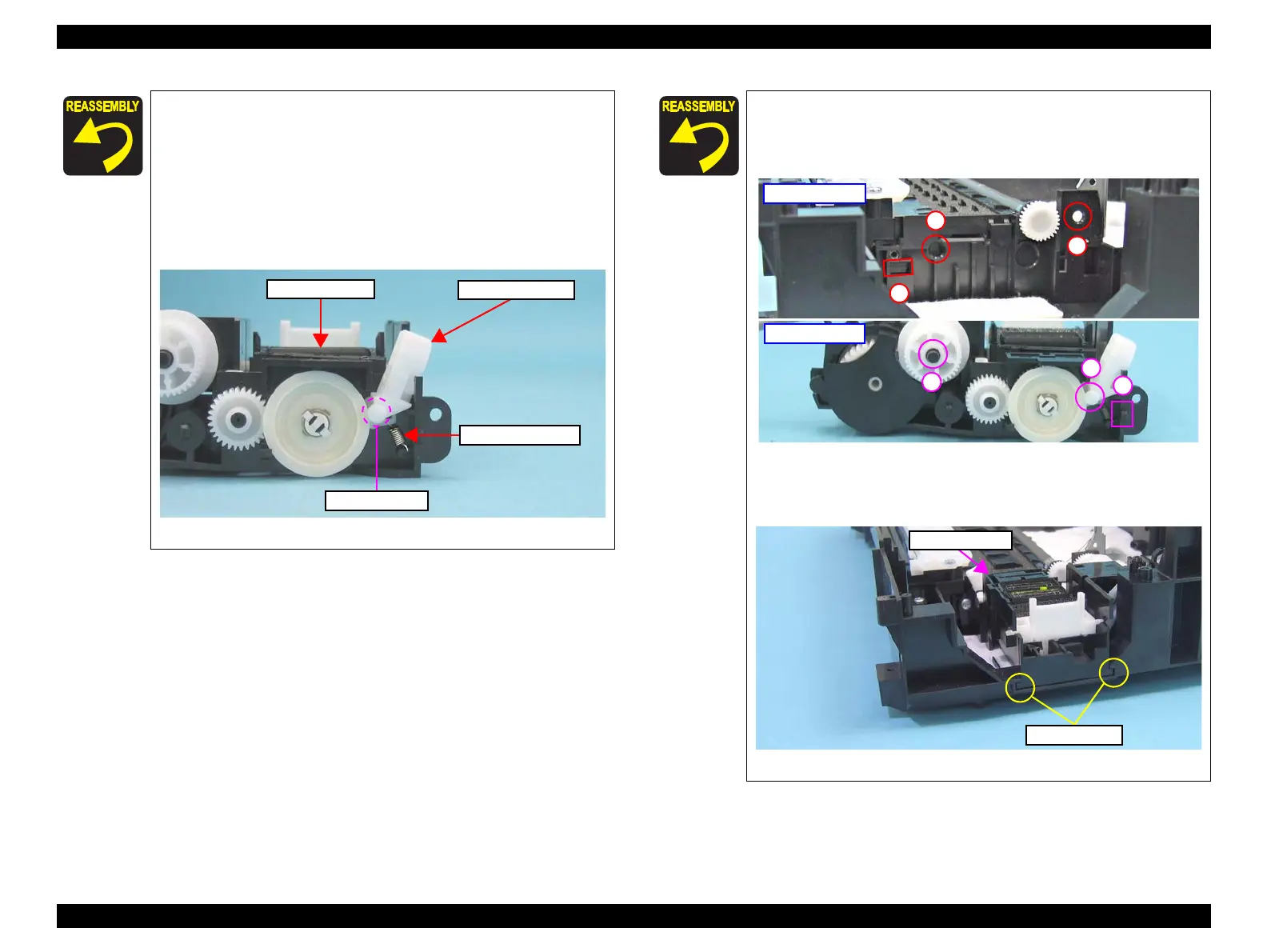

Figure 4-95. Installing the Carriage Lock Lever
Carriage Lock Lever
Extension Spring 0.8
Ink System Unit
Dowel and Hole
 When installing the Ink System Unit, pay attention to the
following instructions.
• Align the dowels (x3) of the Ink System Unit with the
positioning holes (x3) of the Base Frame.
Figure 4-96. Installing the Ink System Unit (1)
• Align the ribs (x2) of the Ink System Unit with the grooves
(x2) of the Base Frame.
Figure 4-97. Installing the Ink System Unit (2)
Base Frame Side
1
2
3
Ink System Side
1
2
3
Ink System Unit
Rib and Groove
