Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
PRODUCT DESCRIPTION Control Panel 29
Confidential
 SX210 series

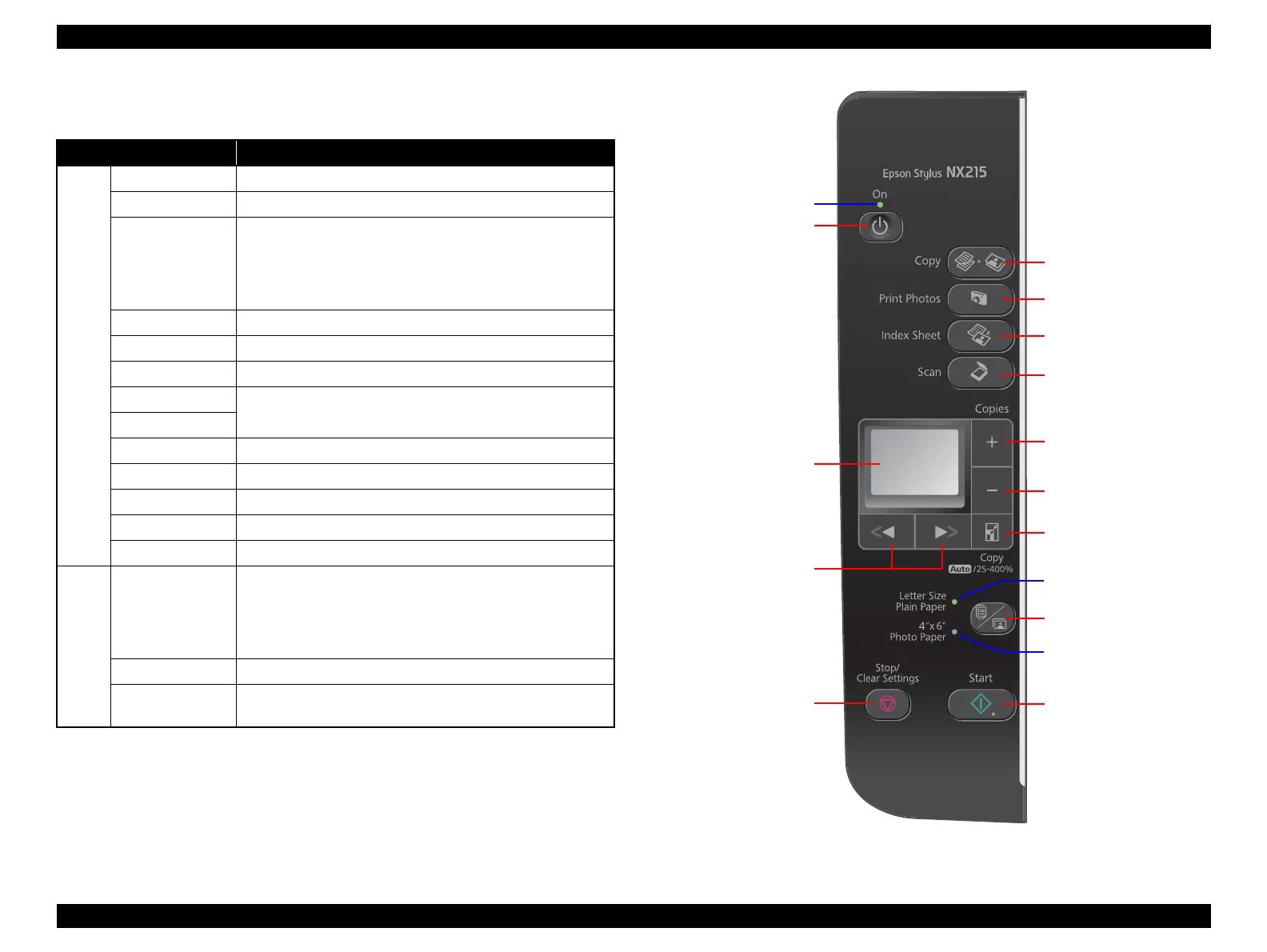

Figure 1-7. SX210 series Control Pane
Table 1-32. SX210 series Buttons & LEDs
Button/LED Function
Button
Power Turns the power ON/OFF.
Start Starts printing.
Stop/Clear
• Stops operation and displays the menu screen.
• Stops printing and ejects paper.
• Returns the print settings in the current mode to their default
and displays the Top screen. (Returns to the previous screen
during printing maintaining the current settings)
Paper Type Selects paper type and size.
Zoom Goes to the zoom setting screen.
Left/Right Selects a menu item or a setting value.
+
Sets the number of copies.
-
Copy Goes to the stand alone Copy mode.
Photo Goes to the memory card direct print mode.
Index Sheet Prints an index sheet.
Scan Goes to the Scan mode.
Index Sheet + Scan Goes to the Setup mode.
LED
Power (Green)
• Flashes at power ON/OFF.
• Flashes during some sequence is in progress.
• Flashes when an fatal error occurs.
• Lights when the status is other than above. (i.e. when in
stand-by / in setting operation using the control panel)
Paper (Green) Selected paper type and size light.
Card Access
(Green)
• Lights when a memory card is inserted.
• Flashes when a memory card is being identified or accessed.
Power button
Start button
Stop/Clear button
Copy button
Photo button
Scan button
Paper Type button
- button
Left/Right button
+ button
LCD
Power LED
Note : The Card Access LED is provided near the memory card slot.
Index Sheet button
Paper LED
Paper LED
Zoom button
