Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
TROUBLESHOOTING Error Indications and Fault Occurrence Causes 64
Confidential
• Power on
• Anywhere
When turning on the power, the CR
Motor does not operate at all.
CR Motor
1. Check if the CR Motor Connector Cable is connected to
the connector on the Main Board Unit shown below.
 NX510 series: CN6
 SX410/SX210 series: CN8
1. Connect the CR Motor Connector Cable to the
connector on the Main Board Unit shown
below.
 NX510 series: CN6
 SX410/SX210 series: CN8
2. Check if the CR Motor Connector Cable is not damaged. 2. Replace the CR Motor with a new one.
3. Check if the CR Motor operates. 3. Replace the CR Motor with a new one.
When turning on the power, the PF Motor
does not operate at all
PF Motor
1. Check if the PF Motor Connector Cable is connected to
the connector on the Main Board Unit shown below.
 NX510 series: CN7
 SX410/SX210 series: CN9
1. Connect the PF Motor Connector Cable to the
connector on the Main Board Unit shown
below.
 NX510 series: CN7
 SX410/SX210 series: CN9
2. Check if the PF Motor Connector Cable is not damaged. 2. Replace the PF Motor with a new one.
3. Check if the PF Motor operates. 3. Replace the PF Motor with a new one.

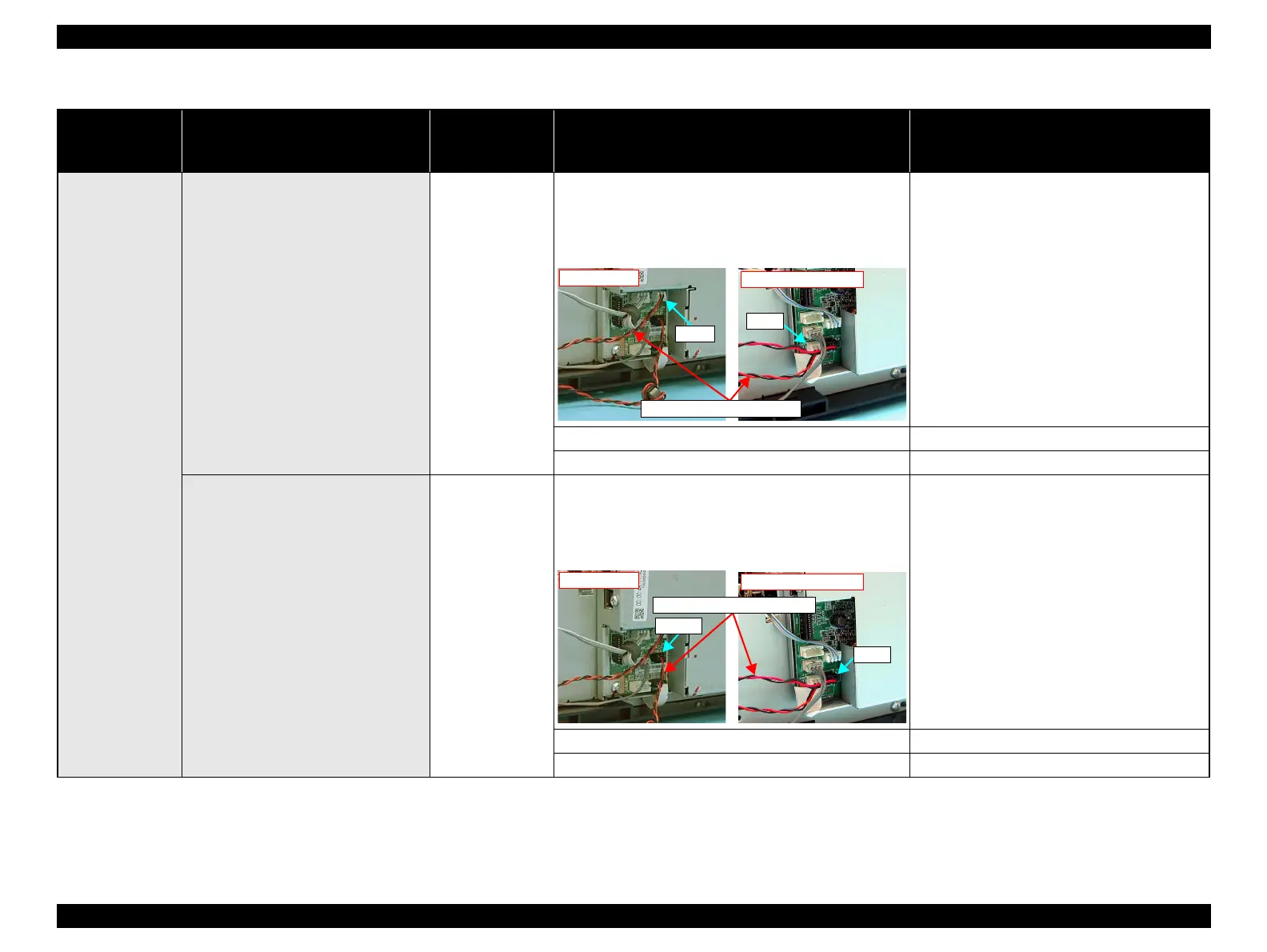

Table 3-6. Check point for Fatal error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
NX510 series
CN6
SX410/SX210 series
CN8
CR Motor Connector Cable
NX510 series
CN7
SX410/SX210 series
CN9
PF Motor Connector Cable
