TROUBLESHOOTING Error Indications and Fault Occurrence Causes 76
Confidential
Table 3-17. Check point for Pre-scanning error (photo) according to each phenomenon (NX510/SX410 series only)
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
•–
No photos cannot be recognized and an
error is indicated.
1. Check if the photo is set correctly. 1. Set the photo correctly.

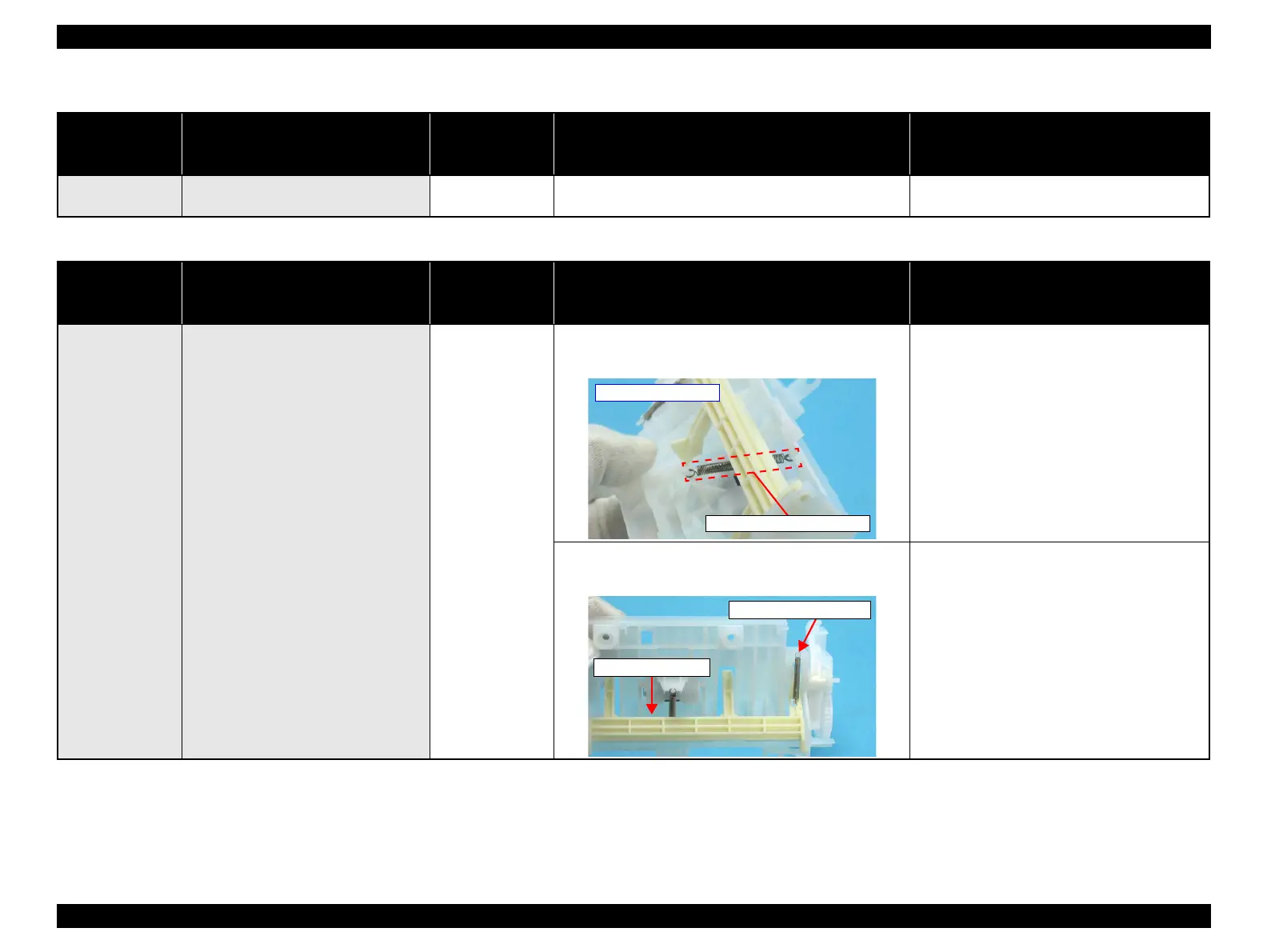

Table 3-18. Check point for Double feed error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
•–
After both surfaces were printed, the
paper was ejected but an error is
displayed.
ASF Unit
1. Check if the Extension Spring Retard operates correctly
in the paper loading sequence.
1. Set the Extension Spring Retard between the
Retard Roller Unit and the ASF Frame.
2. Check if the Paper Back Lever operates correctly in the
paper loading sequence.
2. Set the Extension Spring 0.099 between the
ASF Frame and the Paper Back Lever.
Extension Spring Retard
Backside of ASF
Paper Back Lever
Extension Spring 0.099
