Epson Stylus NX510 Service Manual

Epson Stylus NX510/515/SX510W/515W/TX550W/NX415/SX410/415/TX410/419/NX215/SX210/215/TX210/213/219/ME OFFICE 510 Revision A
TROUBLESHOOTING Error Indications and Fault Occurrence Causes 80
Confidential

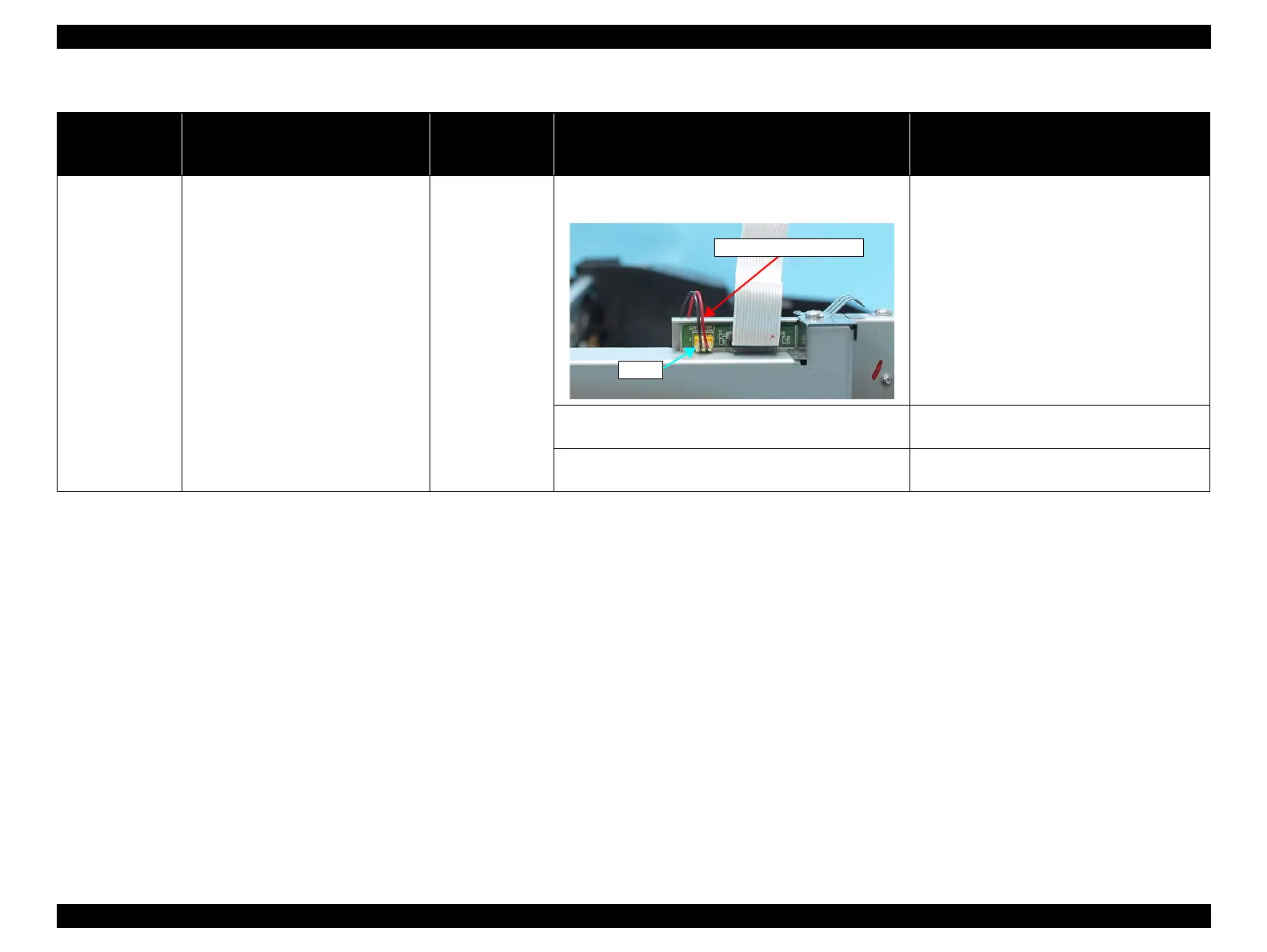

Table 3-20. Check point for Scanner unit open error according to each phenomenon (NX510 series only)
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Operation
• Anywhere
The Printer Cover is closed, but the
cover open error is displayed.
Cover Open Sensor
1. Is the Cover Open Sensor cable properly connected to
CN16 on the Main Board?
1. Connect the Cover Open Sensor cable to CN16
on the Main Board.
2. Is the Cover Open Sensor cable damaged? 2. Replace the Cover Open Sensor cable with a
new one.
3. Is the Cover Open Sensor damaged? 3. Replace the Cover Open Sensor with a new
one.
CN16
Cover Open Sensor cable
