EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 225
Confidential

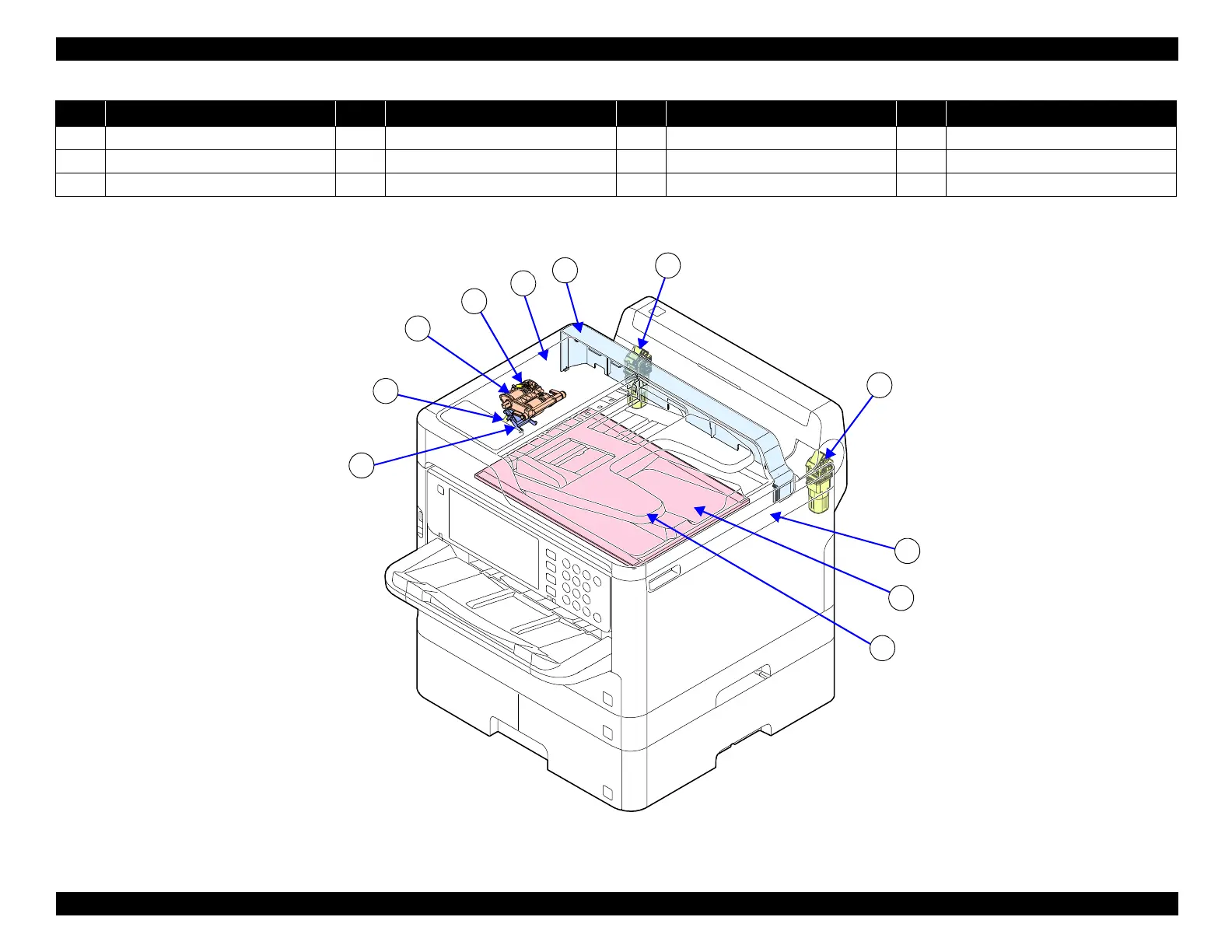

Figure 6-6. ADF/SCN (WF-C5700 Series/ET-8700 only)
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1 ADF Pad Assy (p. 318) 4 ADF Roller Spring (p. 318) 7 Hinge Assy (p. 309) 10 ADF Document Support (p. 318)
2 ADF Separate Spring (p. 318) 5 ADF Paper Feed Roller Unit (p. 318) 8 ADF/SCN Unit (p. 309) 11 ---
3 LD Frame Assy (p. 318) 6 Rear ADF Cover (p. 309) 9 Document Mat (p. 309) 12 ---
2
7
8
9
10
6
1
3
4
5
7
