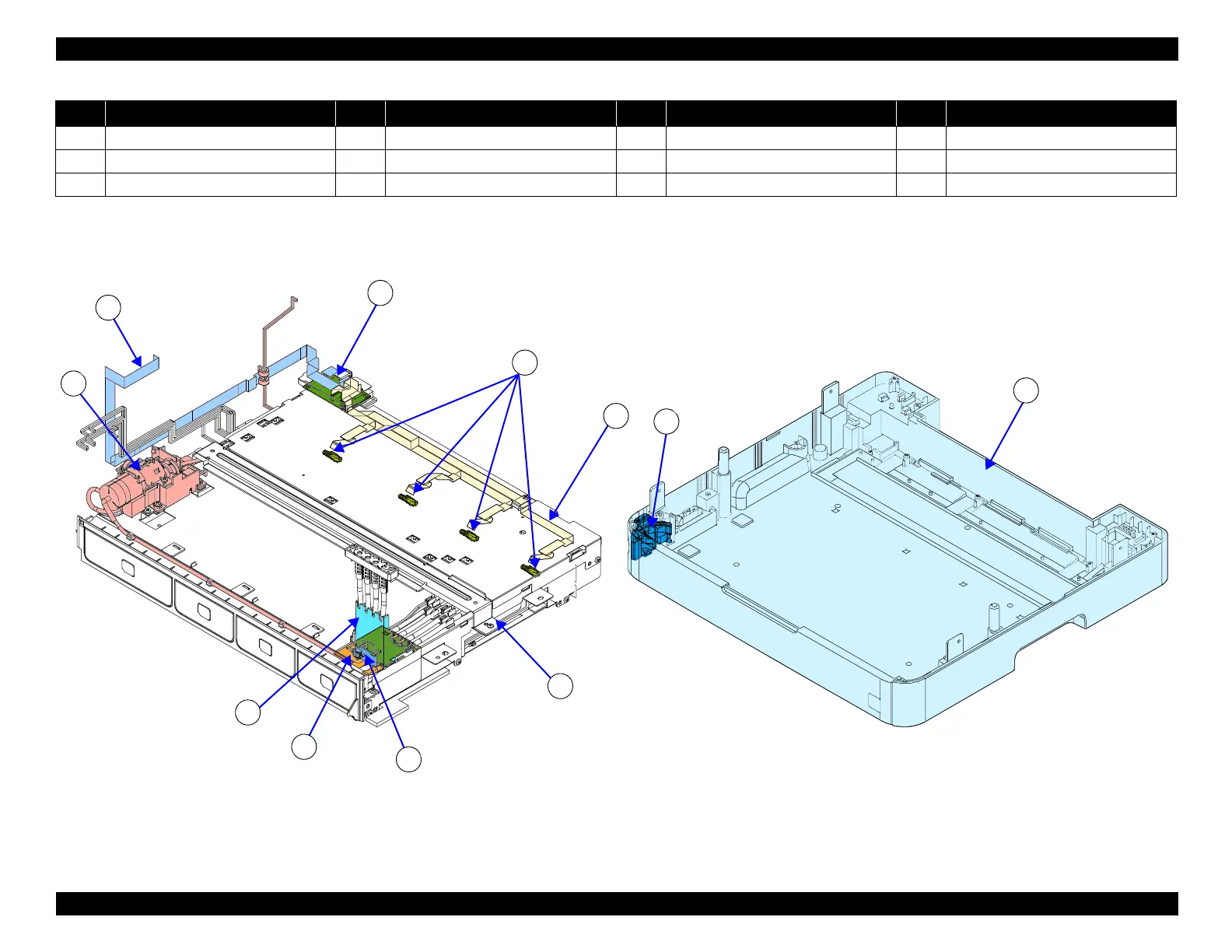

Figure 6-5. Ink Supply Mechanism (2)
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1 Decompression Pump Assy (p. 293) 4 CSIC Board (p. 293) 7 Ink Leak Sensor (p. 263) 10 RIPS Cover Lock Lever (p. 277)
2 Ink Sensor FFC (p. 263) 5 CSIC Board FFC (p. 293) 8 Ink Porous Pad (p. 277) 11 RIPS Unit Lower (p. 277)
3 Ink Sensor YMCBk (p. 293) 6 Ink Supply Unit (p. 277) 9 Ink Tube Guide Holder (p. 277) 12 ---
7
1
2
5
3
4
9
6
8
10
11
