EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 227
Confidential

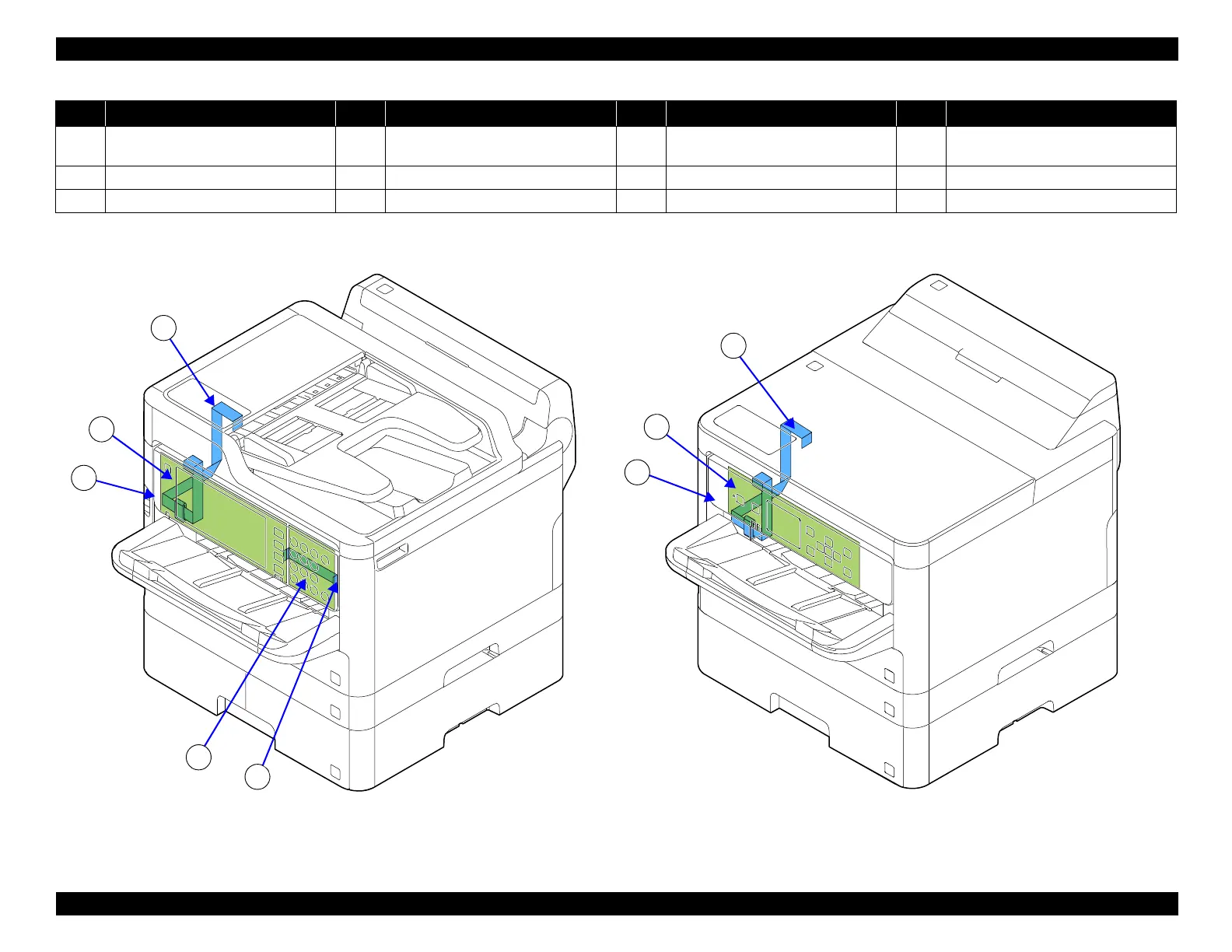

Figure 6-8. Electrical Components (2)
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1 Panel Assy (p. 358) 4
Relay Cable (Panel to Numpad) (p.
358)
7 Panel Board (p. 368) 10 ---
2 Panel Board (p. 358) 5 Numpad Board Assy (p. 358) 8 Relay Cable (Panel to Main) (p. 368) 11 ---
3 Relay Cable (Panel to Main) (p. 358) 6 Panel Assy (p. 368) 9 --- 12 ---
2
4
7
8
5
3
1
6
WF-C5700 Series/ET-8700 WF-C5200 Series

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
